Home >> Mitsubishi >> 1988 >> Precis L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning

Heating and Air Conditioning

Fig. 14 Air Conditioning Wiring Circuit:

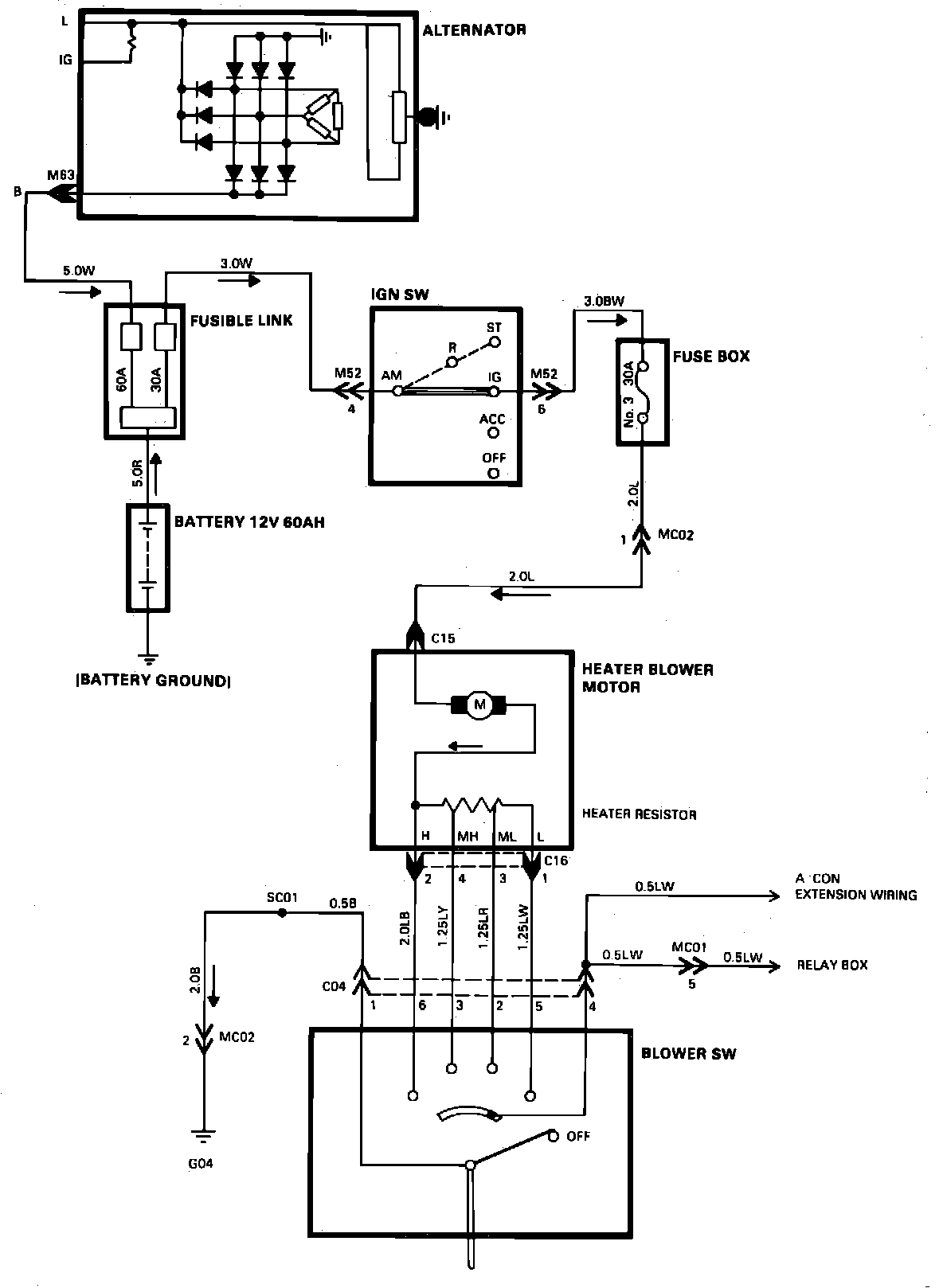

Fig. 126 Heater Wiring Diagram:
