Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1988
>>
Precis L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition Ballast Resistor
Ignition Ballast Resistor

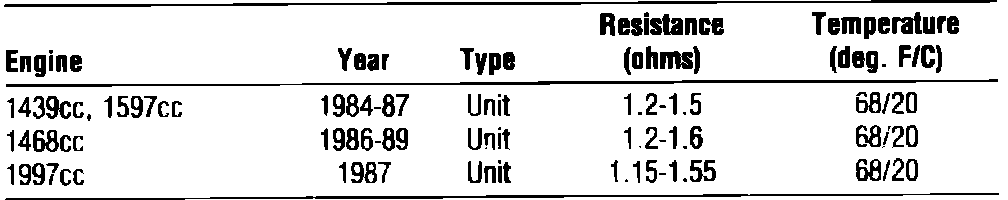

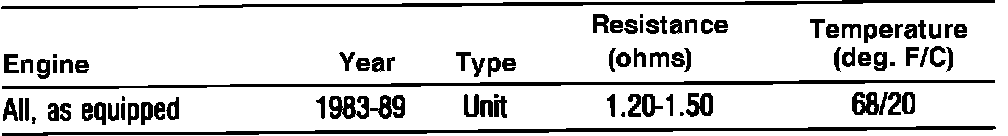

Fig. 1 Ignition Resistor Specifications:
