Child Restraint - Installation W/Passive Restraint
87mitsubishi01SUBJECT: CHILD RESTRAINT FOR PRECIS
PASSIVE RESTRAINT VEHICLES
NO. STB-87-23-016
DATE December, 1987
MODEL 1987-1988 Precis
PURPOSE
This bulletin provides a detailed procedure for installing a supplementary manual seat belt to the front passenger seat of 1987-1988 Precis vehicles equipped with the passive restraint system. The manual seat belt allows a child or child restraint system (infant carrier or child seat) to be positioned in the front seat without using the passive seat belt. Without the manual seat belt, the child or child restraint system must be installed in the rear seat.
Anchorage points for the manual seat belt are provided at the front seat inner bracket and at the base of the center pillar on vehicles equipped with the passive seat belts. Use the following Parts Information and Installation Procedure for customers who request the manual seat belt.
Please note that the customer should be charged for parts and labor for the manual seat belt.
PARTS INFORMATION
The supplementary manual seat belt that is used in the front passenger seat is the same static 2-point type seat belt assembly that is used in the rear seat, center position.
PART NAME COLOR PART NUMBER
Seat Belt Assembly, Beige 89801-21200-BL
Static 2-Point Blue 89801-21200-DL
Red 89801-21200-EB
FIGURE 1:
INSTALLATION PROCEDURE

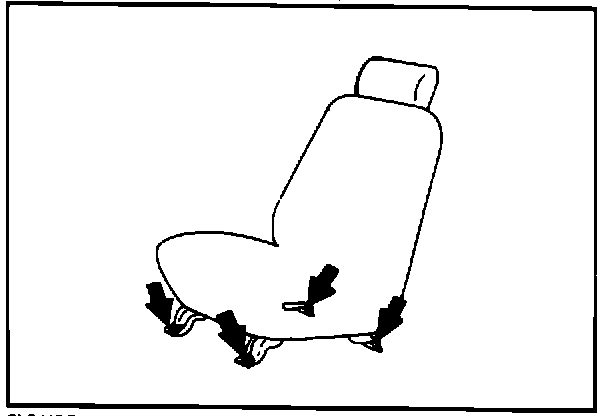

1. Remove the front passenger seat (Figure 1).
FIGURE 2:
2. With the seat removed, install the long portion of the new belt (with tongue) to the anchorage hole at the seat inner bracket (Figure 2). Torque the mounting bolt to 30-44 N-m (22-32 ft.lbs.).
FIGURE 3:

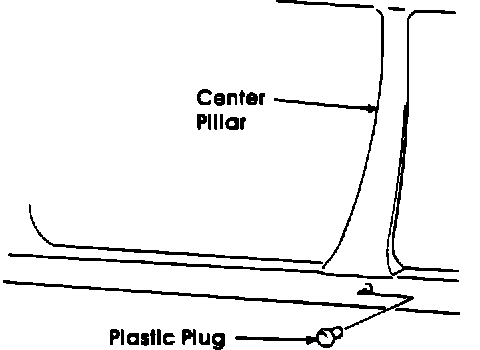

3. Remove the plastic plug in the trim assembly at the base of the center pillar (Figure 3).
FIGURE 4:
4. Install the short portion of the new belt (with buckle) to the anchorage hole at the base of the center pillar (Figure 4). Torque the mounting bolt to 30-44 N-m (22-32 ft.lbs.).
5. Reinstall the front passenger seat. Torque the mounting bolts to 16-18 N-m (11-13 ft.lbs.).
6. The child restraint can now be installed in the front passenger seat using the manual seat belt. Refer to the Owner's Manual for child restraint and seat belt usage information.
NOTE: When the child restraint is installed in the front seat with the manual seat belt, the passive shoulder belt should be disconnected from the buckle on the door and retracted into the retractor.
