Parts, Kit Component & Warranty Information
PARTS INFORMATIONPART DESCRIPTION PART NUMBER
Hot Weather Kit 2F310-2100

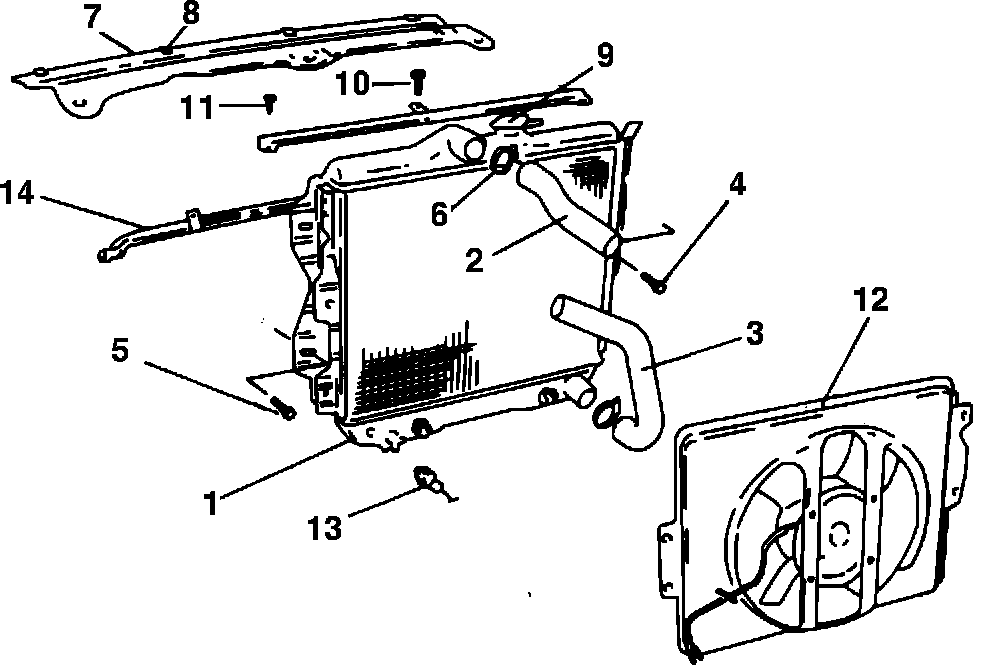

FIGURE 11:
Kit Components (Figure 11)
KEY PART DESCRIPTION PART NUMBER QTY.
1 Radiator Assembly 25310-21370 1
2 Upper Radiator Hose 25411-21200 1
3 Lower Radiator Hose 25412-21200 1
4 Radiator Mounting Bolt (longest) 11302-08326 1
5 Radiator Mounting Bolts 11302-08256 3
6 Radiator Hose Clamp 25331-14000 1
(for upper hose at radiator)
7 Air Guide 86360-21150 1
8 Air Guide Clips 82216-31100 4
9 Air Deflector 25356-21000 1
10 Air Deflector Mounting Bolts 11290-08163 1
11 Air Deflector Mounting Screws 12492-05163 2
12 Fan/Motor Assembly 25380-21900-D 1
13 Thermo Switch Assembly 25360-21200-D 1
14 Front Transverse Filler Assembly) 86370-21001 1
(must be painted body color)
WARRANTY INFORMATION
The following Labor Operation Code and Time Allowance is for the installation of the Hot Weather Kit.
Labor Operation Code: 25305R00
Time Allowance: 1.5 hr.
Claim Type: W
