Door Glass Grip - Service Manual Update
88mitsubishi03SUBJECT:
PRECIS DOOR GLASS GRIP SERVICE MANUAL UPDATE
NO. TSB-88-23-009
DATE July, 1988
MODEL 1988 Precis
TSB Revision: TSB-88-23-009
PURPOSE
This bulletin is issued to correct the specifications and illustrations for installing the front door glass grip in the 1988 Precis.
APPLICABLE MANUALS
1988 Precis Service Manual, Page 60-38
CORRECTION
The specifications and illustrations in the Precis Service Manual should be corrected as follows. For the 4/5 door model, change the 2.6 in. dimension to 2.56 in. For the 3 door model, cross out the illustration shown in the Service Manual and use the illustration on Page 2 of this bulletin for the correct position and specifications for the glass grip. As reference to this bulletin, please write "See TSB-88-23-009" on the bottom of Page 60-38 as shown.

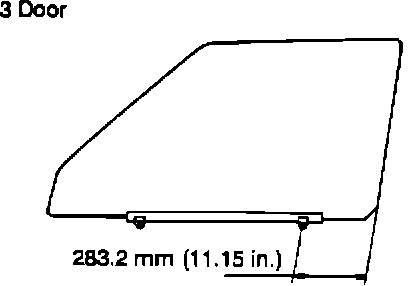

FIGURE 1:
Figure 1 shows the corrected illustration and specifications for the front door glass grip on the 1988 3 door Precis.
