88mitsubishi03SUBJECT:
ECI-MULTI DRIVEABILITY
TROUBLESHOOTING MANUAL UPDATE
NO. TSB-88-14-009 DATE July, 1988
MODEL All with ECI
PURPOSE
This bulletin is issued to correct typographical errors in the 1987 ECI-Multi Driveability Troubleshooting Manual, Publication No. MSSP-202B-87.
CORRECTIONS
Page 34 In the Troubleshooting Table, change "OFF-ON" to "ON-OFF" and at the bottom of the table, change 6V to 4V. See illustration below.

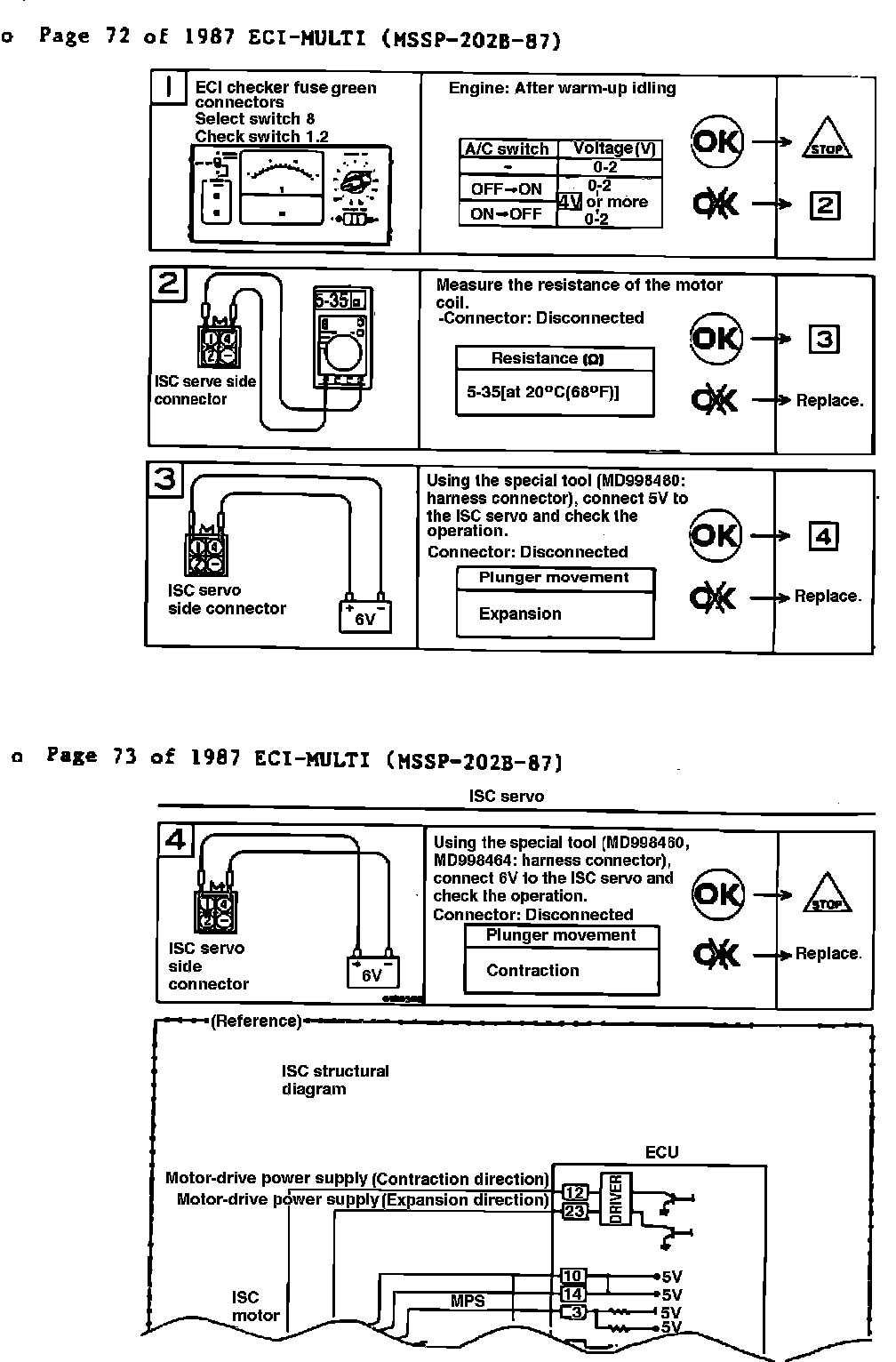

Pages 72 and 73 In the (1) box, change 6V to 4V. In the (2) box, change the resistance value to 5-35 @ 20~C (68~F). In the (3) box, change "Contraction" to "Expansion". In the (4) box, change "Expansion" to "Contraction". In the Reference illustration, change "Expansion Direction" to "Contraction Direction" and "Contraction Direction" to "Expansion Direction". These changes are illustrated below.
