Fuses - Cross Referenced Guide

87mitsubishi05

SUBJECT:
PRECIS FUSE GUIDE FOR PASSIVE RESTRAINT VEHICLE
NO. STB-87-08-015

DATE December, 1987

MODEL 1987-1988 Precis
PURPOSE

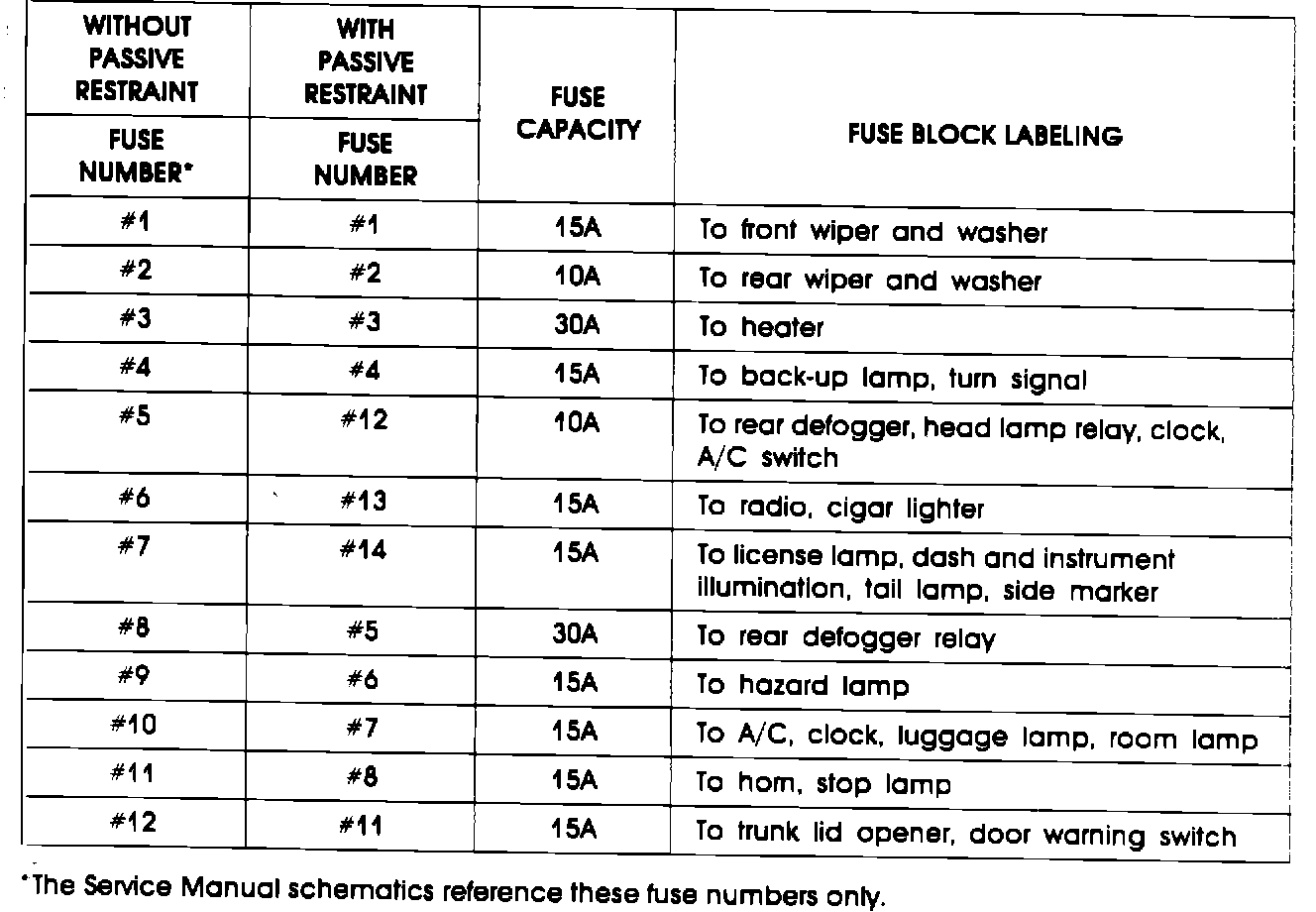

The electrical wiring schematics in the back of the 1987 and 1988 Precis Service Manuals refer to fuse numbers used only in vehicles without the optional passive restraint system. Refer to the cross reference fuse guide below when using the schematics in the Service Manual to diagnose an electrical problem on a vehicle equipped with the passive restraint system.



Please write the STB number "STB-87-08-015" at the bottom of the index page for the Electrical Wiring System Appendix in the 1987 and 1988 Precis Service Manuals.
