Paint - Exterior Color Codes and Applications
87mitsubishi02SUBJECT:
1988 EXTERIOR COLOR CODES AND APPLICATIONS
NO. STB-87-23-011
DATE August, 1987
MODEL All
PURPOSE
This bulletin lists the 1988 exterior color codes, vehicle applications, and paint manufacturers' stock numbers for use when ordering refinishing materials from your local automotive paint dealer.
1988 EXTERIOR COLORS
There are twenty-six exterior colors for 1988; eighteen are carried over from 1987, and eight are new. In Table I on Page 2, the new colors are identified by asterisks (*). Four colors that were used on 1987 models are not offered on 1988 models. These colors are listed at the bottom of Table I.

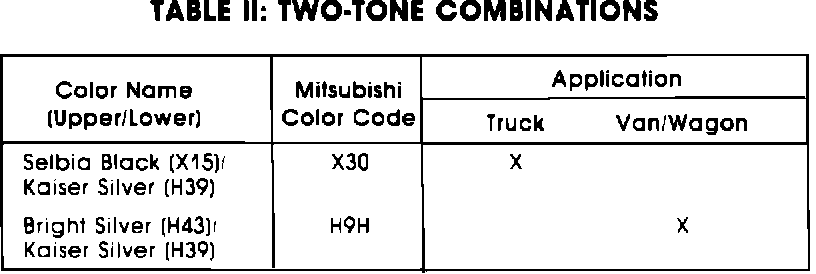

There are two two-tone color combinations for 1988 models. These are shown on Page 2 in Table II.
Manufacturers' stock numbers for carryover colors are given on Page 3 in Table III. Stock numbers for the eight new colors will be included in a revision to this Bulletin to be issued as soon as the stock numbers are available.
1987 Colors not offered on 1988 models
LB7 Iceland Blue (M) OB7
Bismarck Blue S25
Mojave Beige W18 Rocky White
REVISION TO SERVICE TECHNICAL BULLETIN STB-87-23-011R
This page is a revision to Page 3 of STB-87-23-011 which was issued last month. This revision includes all the manufacturers stock numbers for 1988 models. Please insert this page in your 1987 Service Technical Bulletin binder in place of the original.
