Rear Window Defogger - Schematic Correction
88mitsubishi04SUBJECT: PRECIS REAR WINDOW DEFOGGER SCHEMATIC
CORRECTION - SERVICE MANUAL UPDATE
NO. TSB-88-08-009
DATE June, 1988
MODEL 1988 Precis
TSB Revision: TSB-88-08-009
FIGURE 1:
FIGURE 2:
SERVICE INFORMATION

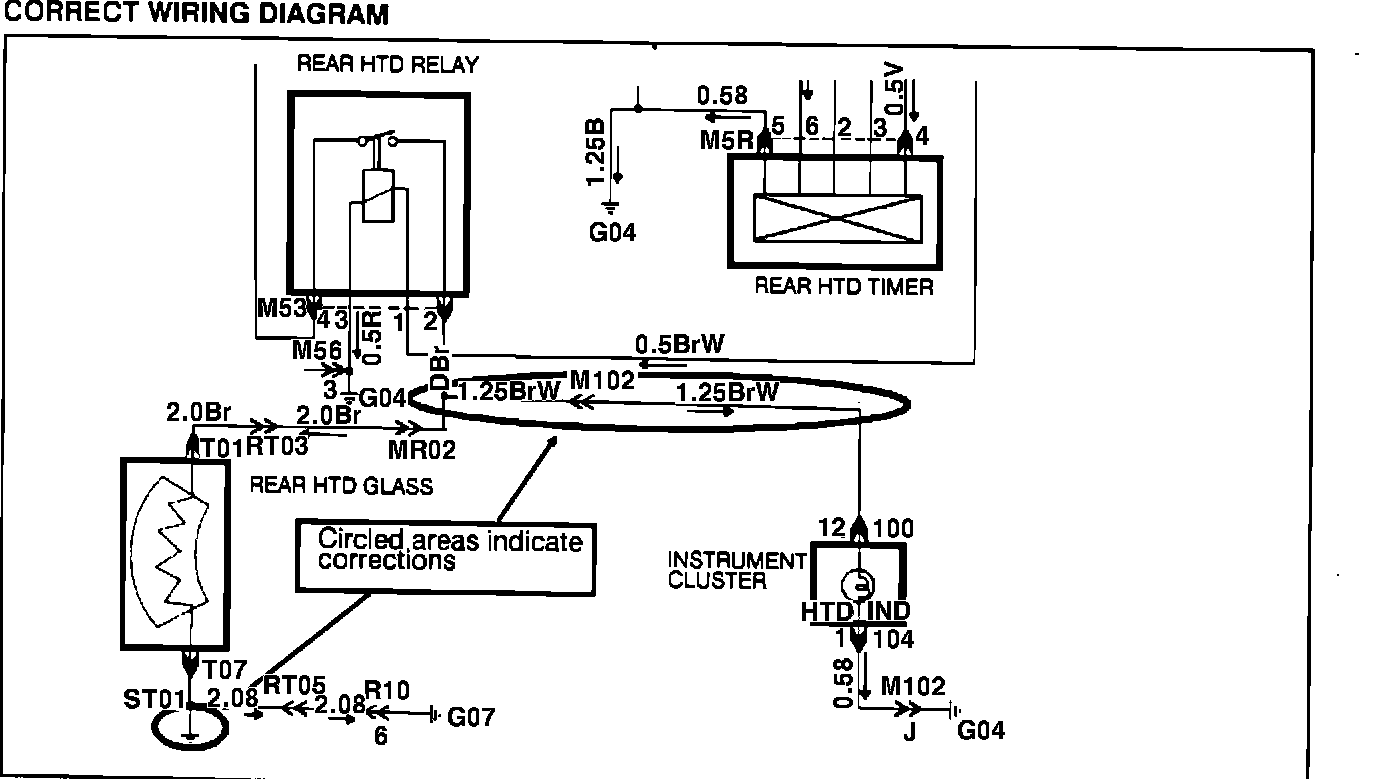

The schematic diagram for the rear window defogger (rear heated glass) on Appendix Page 24 in the 1988 Precis Service Manual is incorrect. The positive wire (BrW) for the rear defogger indicator in the instrument cluster is incorrectly shown connecting to connector M102 (Figure 1). The correct diagram shows the indicator positive wire connected to the switched side of the rear heated relay (Figure 2).
As reference to this bulletin, please write the TSB number at the bottom of page 24 of the Appendix in the 1988 Precis Service Manual.
