Interior Rear Shelf - Rattles

89mitsubishi06

SUBJECT:

SILENCING PRECIS REAR SHELF RATTLES
NO.: TSB-89-52-001

DATE: JUNE, 1989

MODEL: Precis



PURPOSE

You may encounter a customer complaint of a rattling noise coming from the rear of a Precis. If the package shelf is in place, the rattle may be the result of the rear support pins bouncing against the shelf supports.

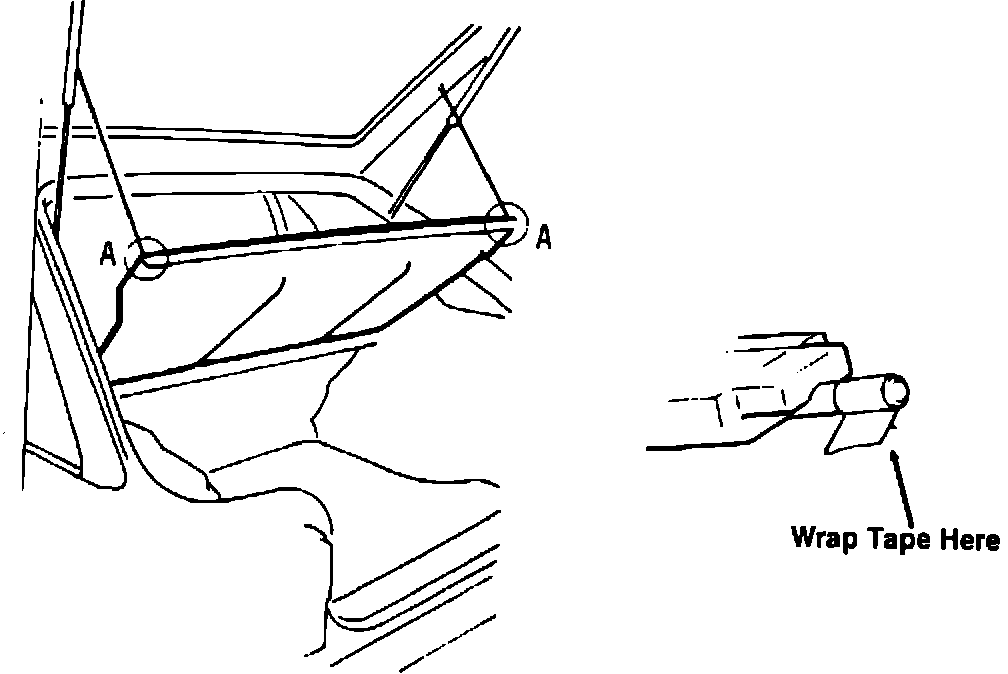

CORRECTIVE ACTION Wrap the rear support pins as shown in the drawing with tape such as 3M's # SJB591 polyurethane tape or equivalent.
