Electrical Diagrams

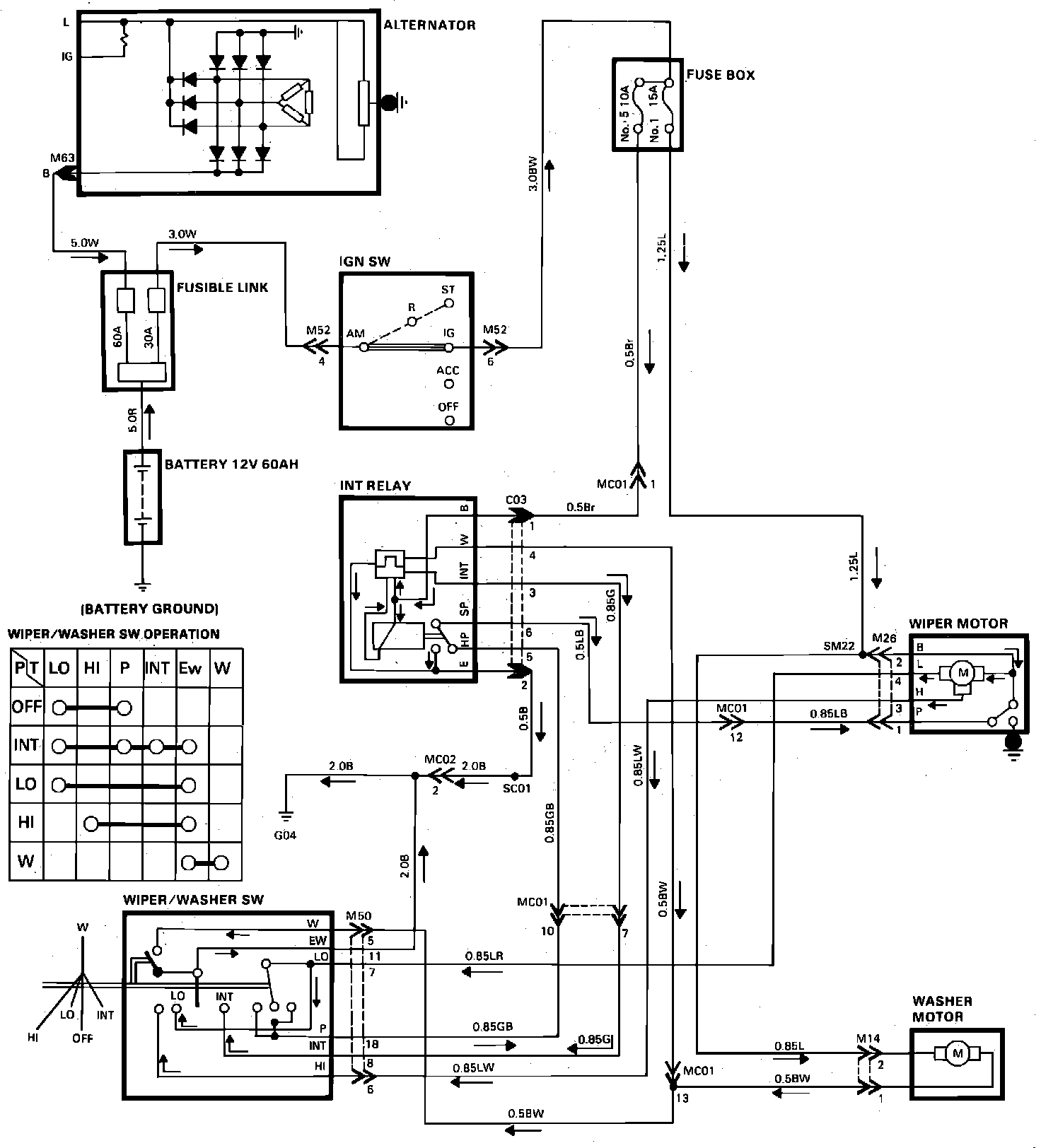

Fig. 235 Wiper & Washer (front) Wiring Diagram:



Fig. 236 Wiper & Washer (rear) Wiring Diagram:
