Transmission Control Systems

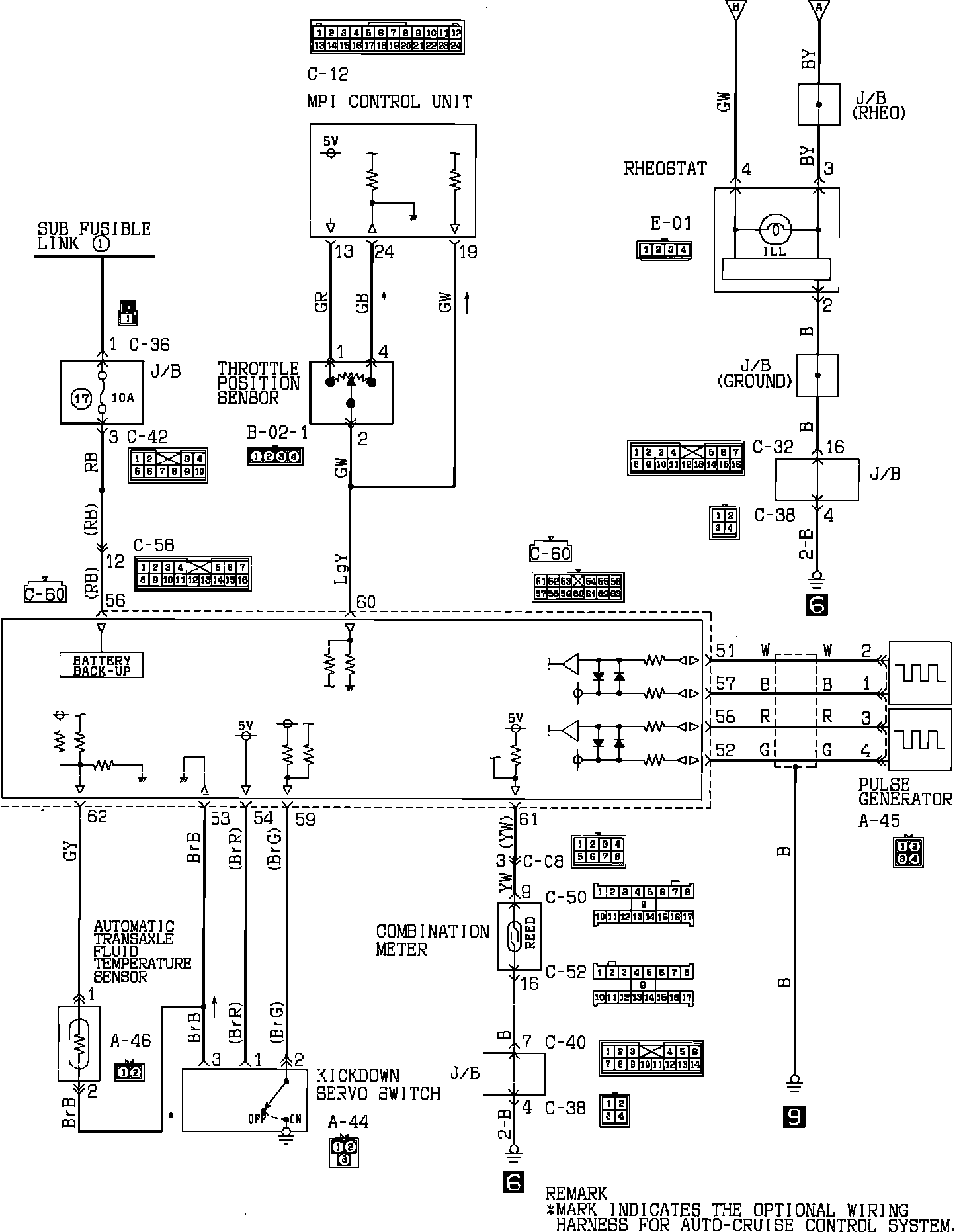

ECL 4 Speed Automatic Transaxle:

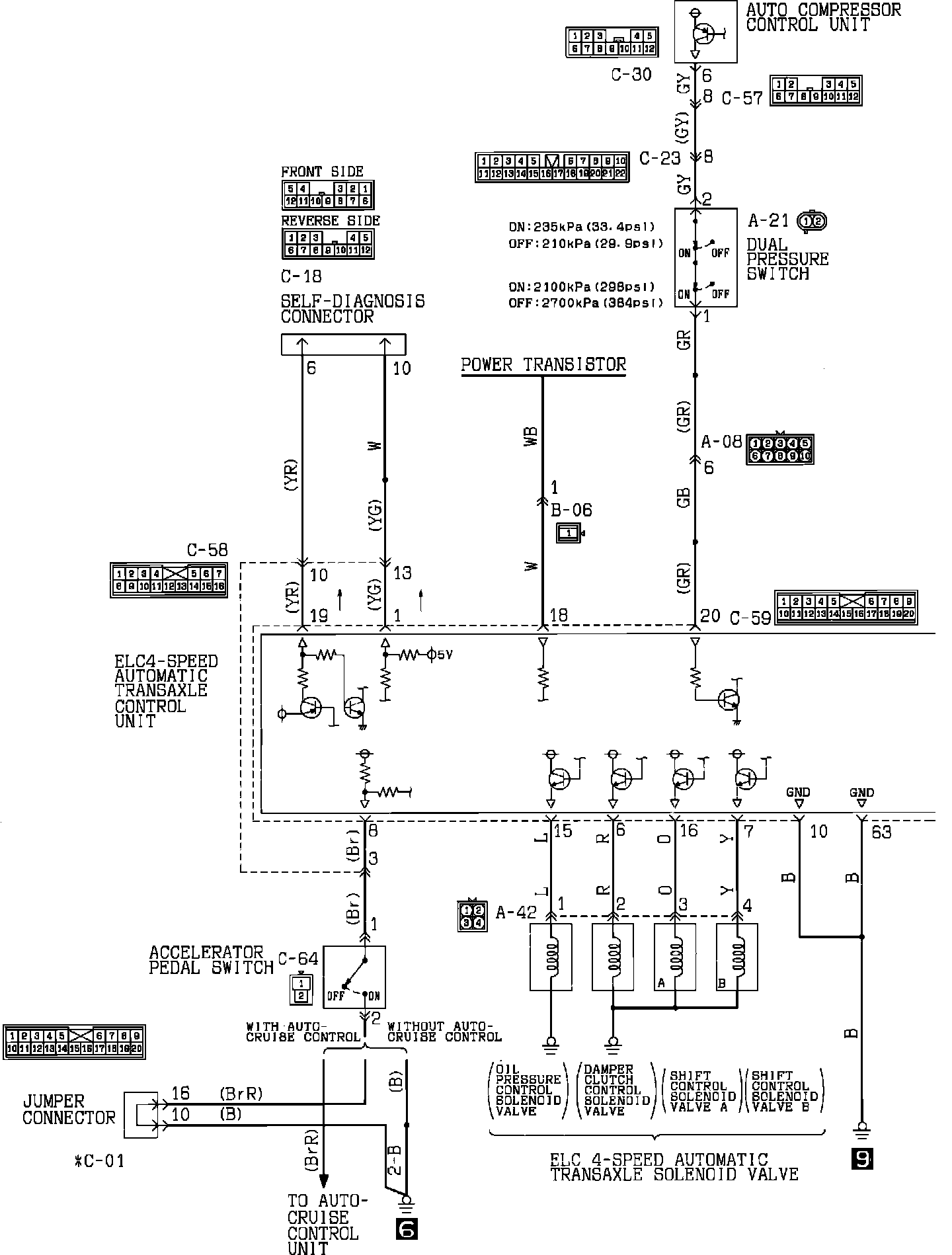

ECL 4 Speed Automatic Transaxle:

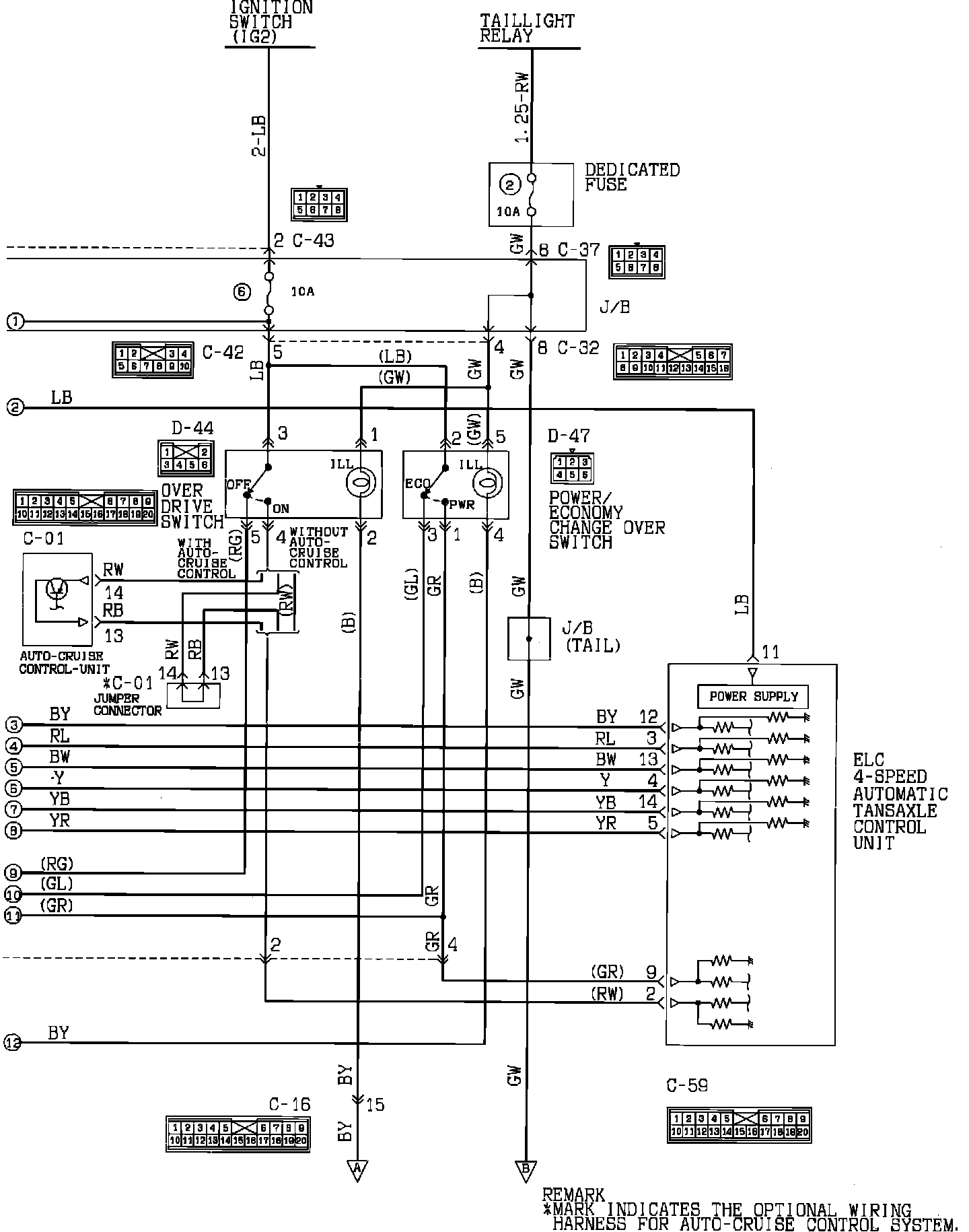

ECL 4 Speed Automatic Transaxle:



ECL 4 Speed Automatic Transaxle:
