Instrument Cluster / Carrier: Service and Repair

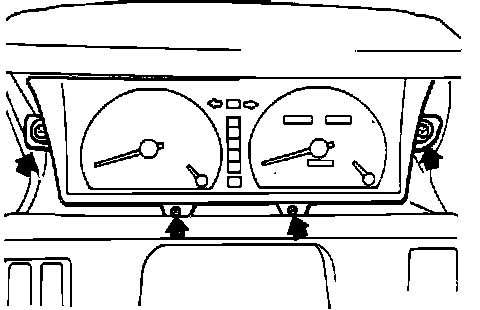

Fig. 7 Instrument Cluster Attaching Screw Locations:

1. Disconnect battery ground cable.
2. Remove instrument cluster meter bezel attaching screws, then the cluster hood.
3. Remove instrument cluster attaching screws, Fig. 7, then pull cluster slightly forward and disconnect speedometer cable and electrical connectors.
4. Remove instrument cluster from instrument panel.
5. Reverse procedure to install.
