A/T - Oil Pressure Testing Service Manual Revision
NO.: TSB-93-23-001DATE: February, 1993
MODEL: See Below
SUBJECT:
A/T OIL PRESSURE TESTING -
SERVICE MANUAL REVISION
TSB Revision: TSB-93-23-001
PURPOSE
Pressure values shown in the A/T oil pressure testing procedures of several service manuals have been revised. This bulletin shows how to revise the affected service manual pages.
For reference, write the TSB revision number of this bulletin in the TSB revision box located near the bottom of each affected service manual page.
SERVICE MANUALS AFFECTED
1993 Mirage, Volume 1, Page 23-87
1992 Mirage, Volume 1, Page 23-62
1992-93 3000GT, Volume 1, Page 23-38
1992-93 Expo/Expo LRV, Volume 1, Page 23-32
1989-93 Galant, Volume 1, Page 23-53 and 23-54
DESCRIPTION
While conducting A/T oil pressure tests, the typical pressure reading for the "Reverse" kickdown brake, front clutch, and low-reverse brake is 213 psi (1470 kPa) at 1000 rpm. A pressure reading of approximately 142 psi (1000 kPa) at 1000 rpm is the minimum acceptable level, while a reading of about 319 psi (2240 kPa) at 1000 rpm is the maximum acceptable level. If pressure readings fall outside these readings during testing, refer to the Oil Pressure Troubleshooting Chart in Group 23 of the vehicle's service manual for further information.

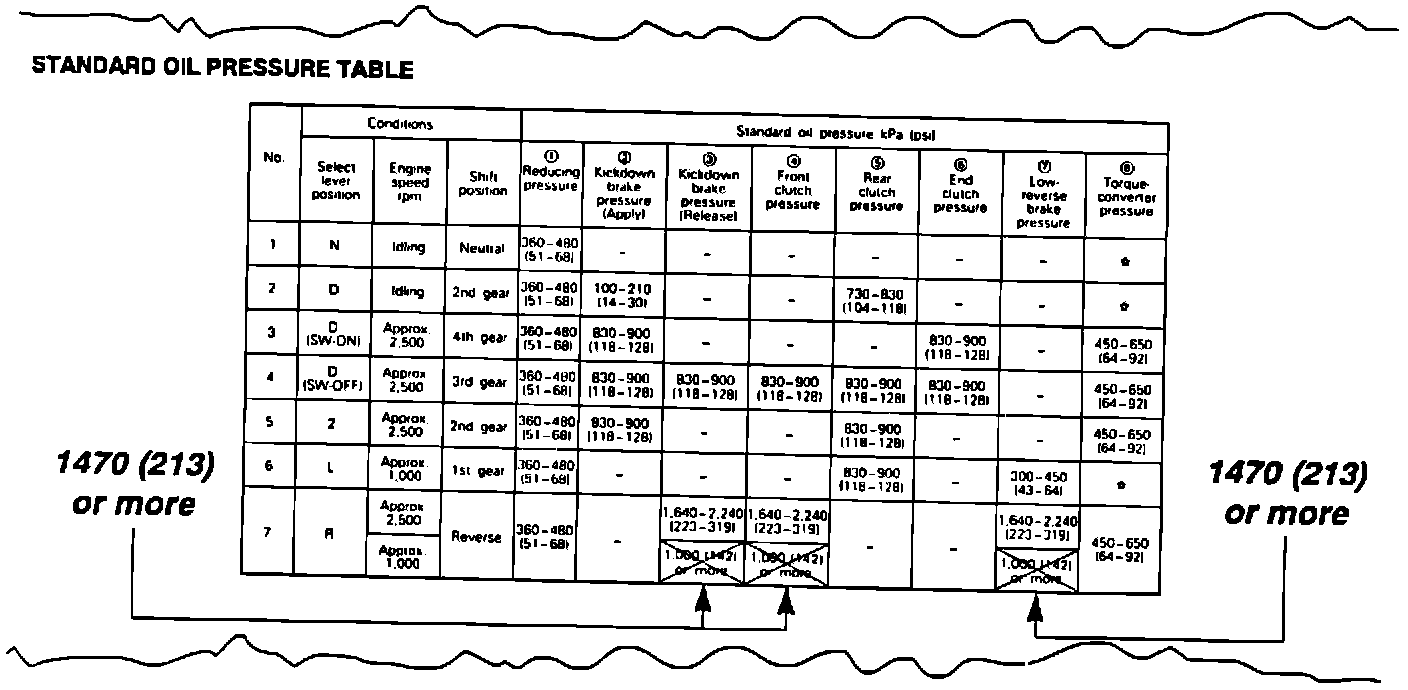

As indicated in this bulletin, revise the A/T oil pressures shown in the Standard Oil Pressure Tables to read "1470 kPa (213 psi) or more".
Revise the "Reverse front clutch pressure and low-reverse brake pressure to read "1470 (213) or more".
1993 Mirage, Volume 1, Page 23-87
1992 Mirage, Volume 1, Page 23-62
1989-93 Galant, Volume 1, Page 23-52 (revise both charts)
Revise the "Reverse" kick-down brake pressure, front clutch pressure and low-reverse brake pressure to read "1470 (213) or more".
1992-93 300OGT, Volume 1, Page 23-38 1992-93 Expo/Expo LRV, Volume 1, Page 23-32 1989-93 Galant, Volume 1, Page 23-54
