A/T - Specification Changes

90mitsubishi11 SUBJECT:
AUTOMATIC TRANSMISSION SPECIFICATION

CHANGES - SERVICE MANUAL UPDATE

NO. TSB-90-23-007

DATE September, 1990

MODEL Eclipse, Galant, Mirage

PURPOSE

This bulletin contains corrections to the specifications for the Transfer Idler Gear Preload and the End Clutch Endplay in the 1989 and 1990 Eclipse, Galant and Mirage Service Manuals. As a reference to this bulletin, please write the TSB number in the revisions boxes at the bottom of the affected pages.

AFFECTED SERVICE MANUALS

1990 Eclipse (Early) - Pages 21-69, 21-129, 21-163
1990 Eclipse - Pages 23-12, 23-88, 23-110
1989 Galant - Pages 21-52, 21-123, 21-146
1989/1990 Galant - Pages 23-11, 23-117
1989 Mirage - Pages 21-164, 23-166, 23-170




SERVICE MANUAL CORRECTIONS

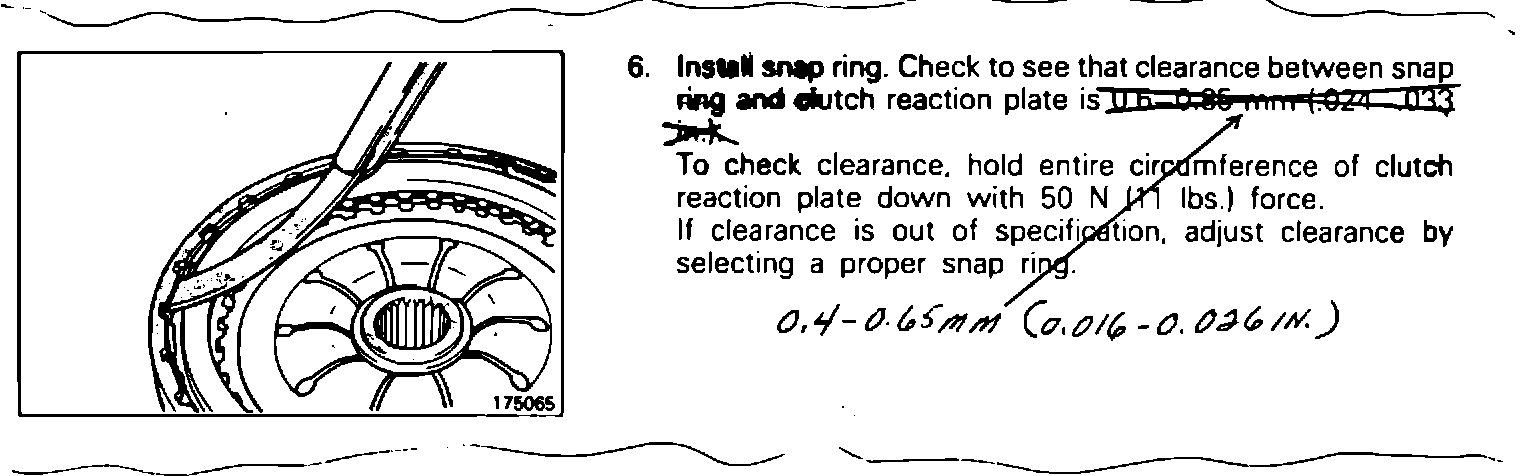

1990 Eclipse (MSSP-002B-90) Page 21-69

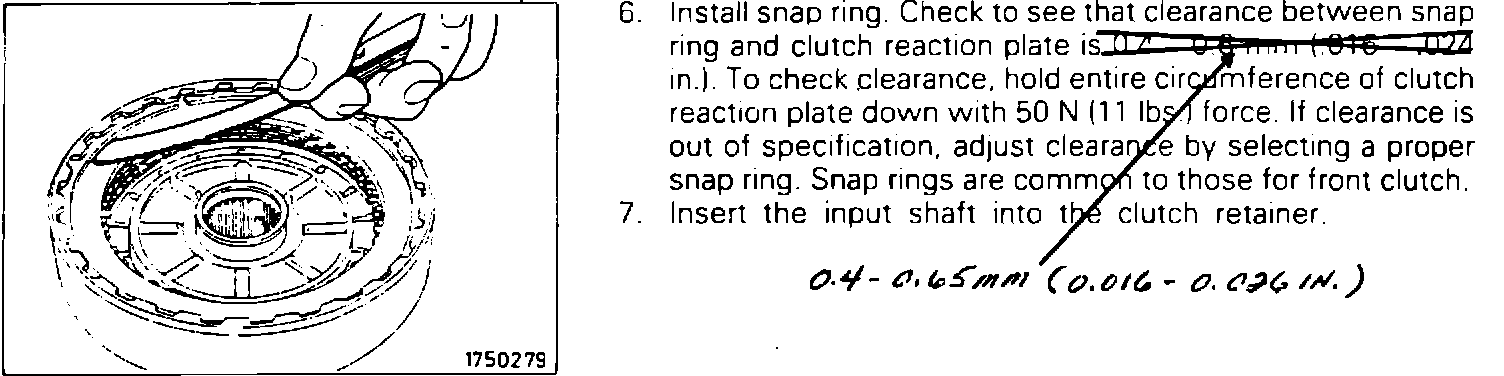

1990 Eclipse (MSSP-102B-90) Page 23-12

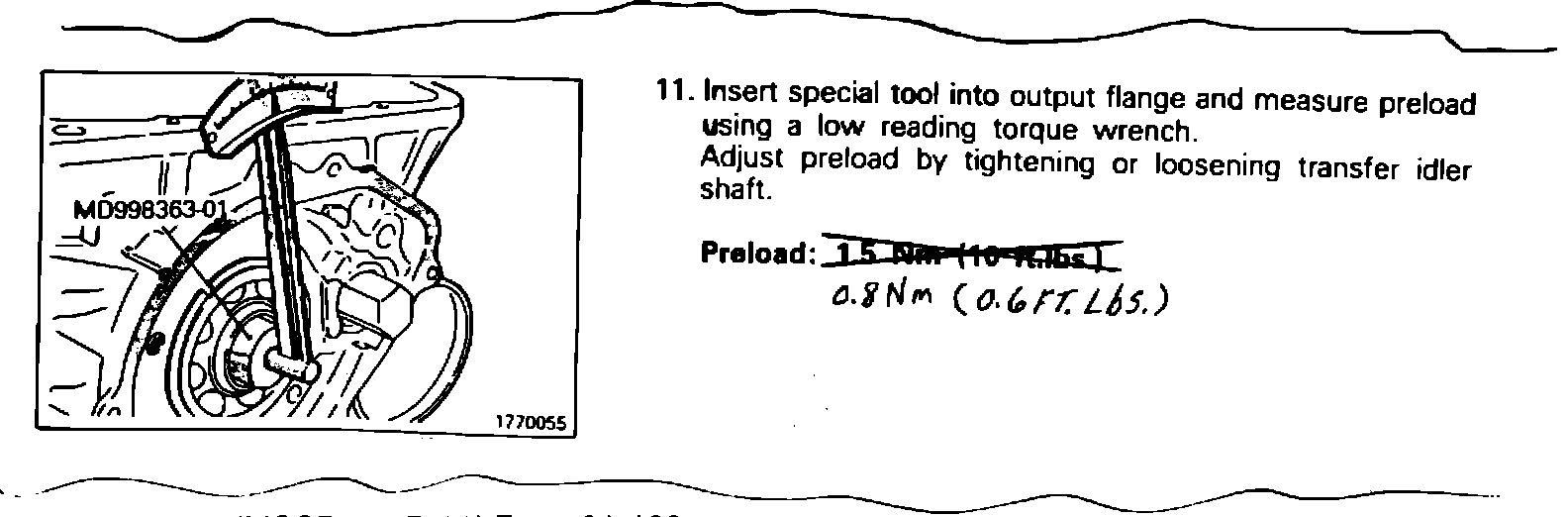

1990 Eclipse (MSSP-002B-90) Page 21-139 1990 Eclipse (MSSP-102B-90) Page 23-88 1989 Galant (MSSP-009B-89) Page 21-52 1989/1990 Galant (MSSP-006B-89) Page 23-11 1989 Galant (MSSP-009B-89) Page 21-123



1990 Eclipse (MSSP-002B-90) Page 21-163 1990 Eclipse (MSSP-102B-90) Page 23-110 1989 Galant (MSSP-009B-89) Page 23-170 1989/1990 Galant (MSSP-006B-89) Page 23-117 1989 Galant (MSSP-009B-89) Page 21-146



1989 Mirage (MSSP-006B-89) Page 21-148 1990 Mirage (MSSP-006B-90) Page 23-164



1989 Mirage (MSSP-006B-89) Page 21-150 1990 Mirage (MSSP-006B-90) Page 23-166
