Lights - Back-Up Light Circuit, Manual Revision

90mitsubishi07 SUBJECT:
GALANT BACK-UP LIGHT CIRCUIT -

SERVICE MANUAL REVISION
NO. TSB-90-54-004

DATE April, 1990

MODEL
1989, 1990
TSB Revision TSB-90-54-004

PURPOSE

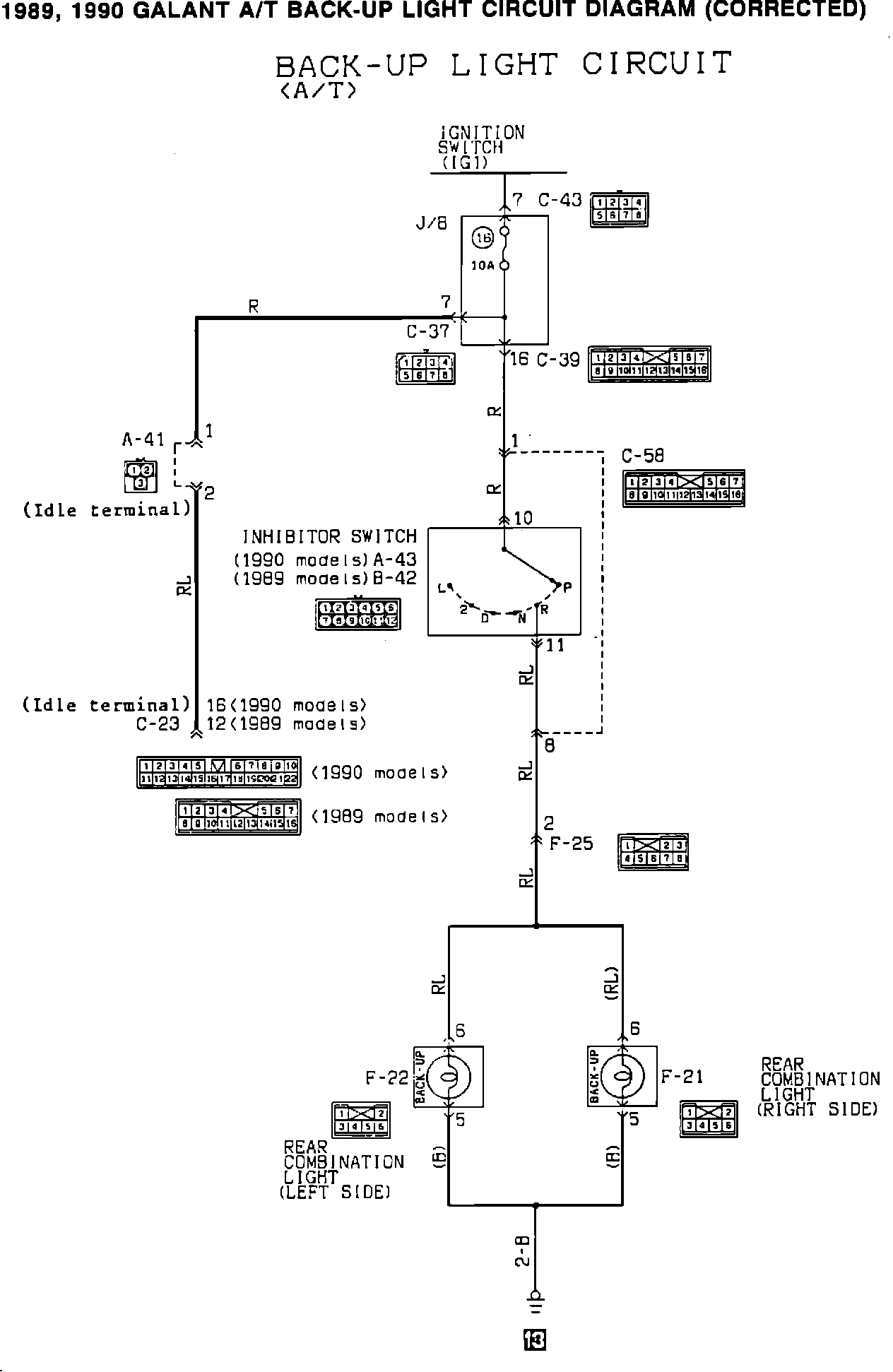

This bulletin contains a corrected back-up light circuit diagram for A/T equipped vehicles in the 1989 and 1989/1990 Galant Service Manuals. As a reference to this bulletin, please write the TSB number in the TSB revision box at the bottom of the affected pages.



AFFECTED MANUALS

Figure 1:

SERVICE MANUAL CORRECTIONS

On each page indicated above, cross out the wiring diagram and write, "REFER TO TSB 90-54-004" as shown in Figure 1. Use the corrected diagram in this TSB instead of the original diagram contained in the Service Manual.
