Piston Ring - End Gap Specification Change

90mitsubishi07 SUBJECT:

PISTON RING GAP CHANGE

NO. TSB-90-11-004

DATE June, 1990

MODEL Galant, Eclipse
TSB Revision TSB-90-11-004
PURPOSE

This bulletin is to inform you of a change in the specifications for measuring the end gap on No. 2 piston ring on the 2.0L DOHC engine.

When checking the ring gap, please use the new value instead of the old one that is in the Service Manual. Please write the new specification on the affected pages. Please write the TSB number in the TSB revision boxes on affected pages.

SERVICE MANUALS AFFECTED

1990 Galant, Volume 1, Pages 11-79, 11-139 1990 Eclipse, Volume 1, Pages 11-57, 11-71, 11-130

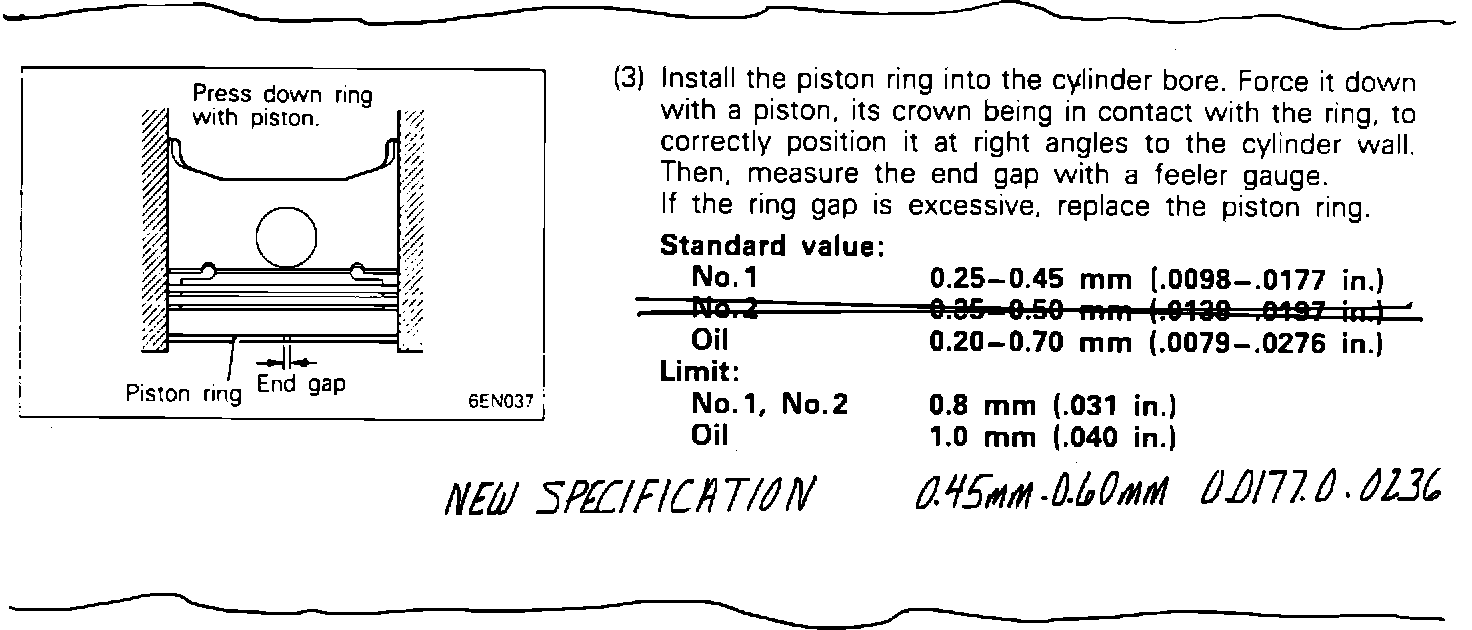

DESCRIPTION OF CHANGE
