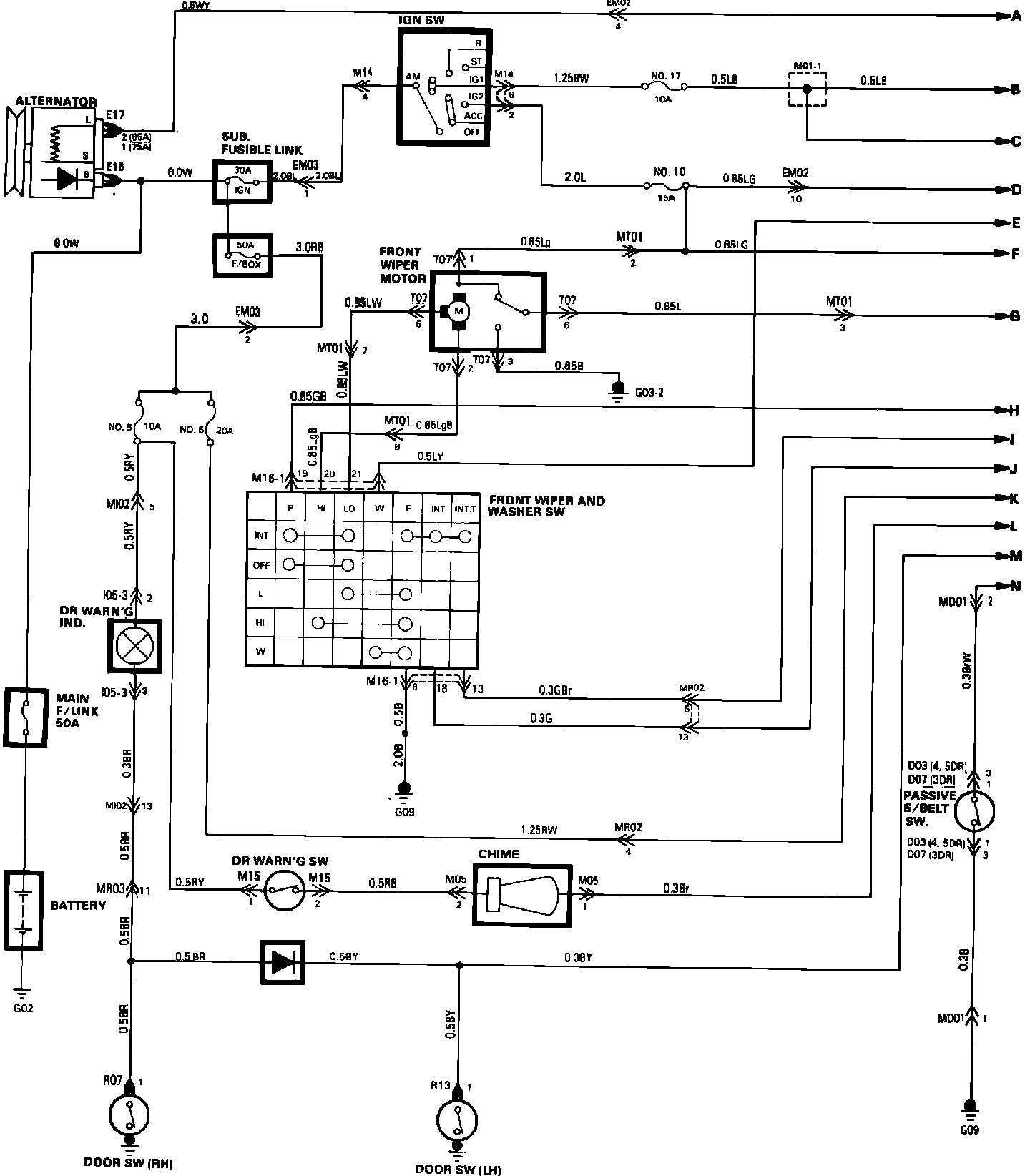

Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp

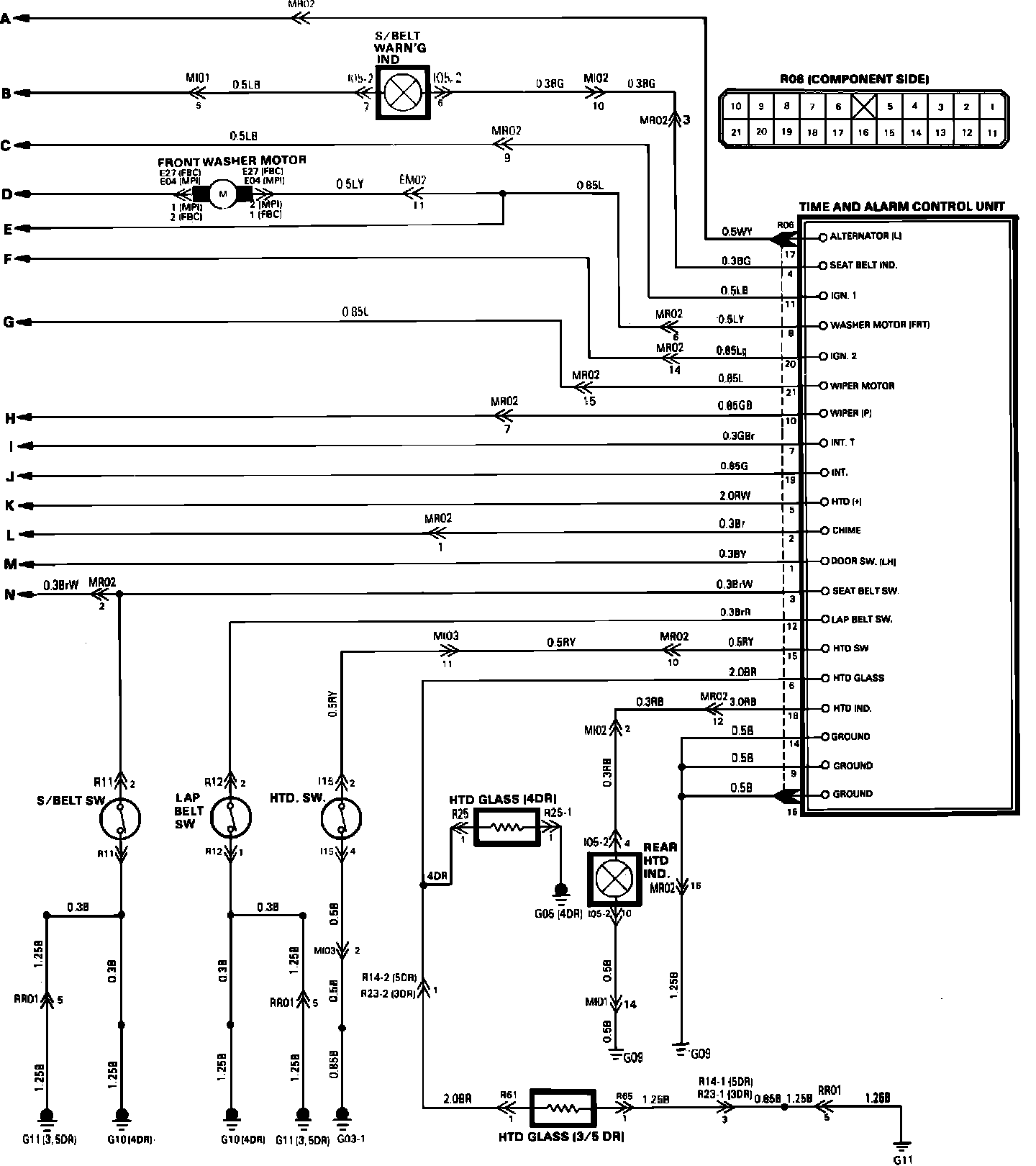

Time & Alarm Control:
Time & Alarm Control:
