Fuel Delivery and Air Induction: Locations

ACCELERATOR CABLE ADJUSTMENT





ELECTRONIC CONTROL UNIT

ECU Location:

The electronic control unit (ECU) is located LH of the vehicle, behind the dash bolster, next to the left kick panel.

EGR VACUUM SOURCE

EGR Vacuum Port Location:

The EGR vacuum source is located on the throttle body.

FUEL ACCUMULATOR

Fuel Accumulator And Rollover (Check Valve) Location:

The Fuel accumulator is mounted to the forward wall of the fuel tank.

FUEL FILTER (IN-LINE)

In-line Fuel Filter Location:

The In-line fuel filter is located on the firewall.

FUEL PRESSURE REGULATOR

Fuel Pressure Regulator Location:

The Fuel pressure regulator is mounted on the fuel rail.

FUEL PUMP

Fuel Tank And Components:

The fuel pump is located inside the fuel tank mounted on the top center of the fuel tank.

FUEL PUMP DRIVE TERMINAL

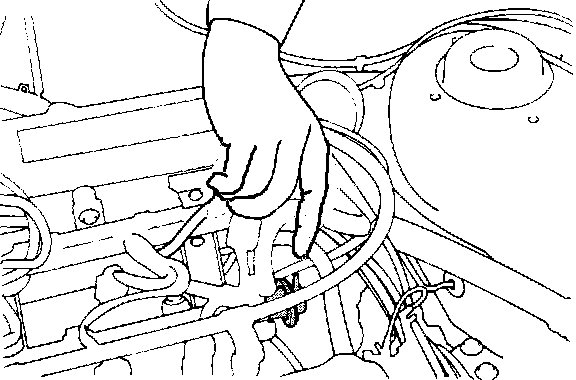

Fuel Pump Drive Terminal Location:

The fuel pump drive terminal (shown hooked-up) is located in the left rear corner of the engine compartment.

FUEL RAIL

Fuel Rail, Injectors, Fuel Pressure Regulator And Components:

The fuel rail is mounted to the intake manifold.

INJECTORS

Injector Locations:

The injectors are mounted between the fuel rail and the intake manifold.

OVERFILL LIMITER (TWO-WAY VALVE)

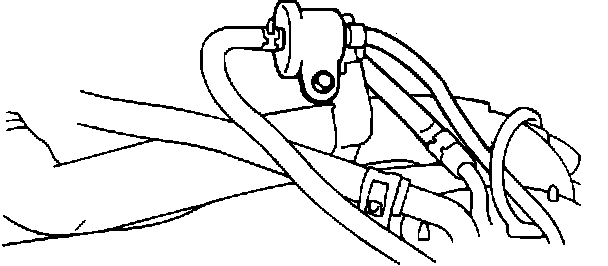

Overfill Limiter Location:

The overfill limiter is mounted in-line, in the vapor line, on top of the fuel tank next to the fuel pump mount.

PURGE HOSE VACUUM SOURCE

Purge Vacuum Port Location:

The Purge hose vacuum source is located on the throttle body.

ROLLOVER (FUEL CHECK) VALVE

Fuel Accumulator And Rollover (Check Valve) Location:

The rollover valve is mounted to the forward wall of the fuel tank.

THROTTLE POSITION SENSOR

Throttle Position (TPS) Sensor Location:

The throttle position sensor is mounted on the throttle body.
