Drivetrain - Rear Axle Hub Nut Torque, Manual Correction
90mitsubishi09SUBJECT: REAR AXLE HUB NUT -
SERVICE MANUAL CORRECTION
NO. TSB-90-34-001
DATE September, 1990
MODEL 1990 Precis
PURPOSE

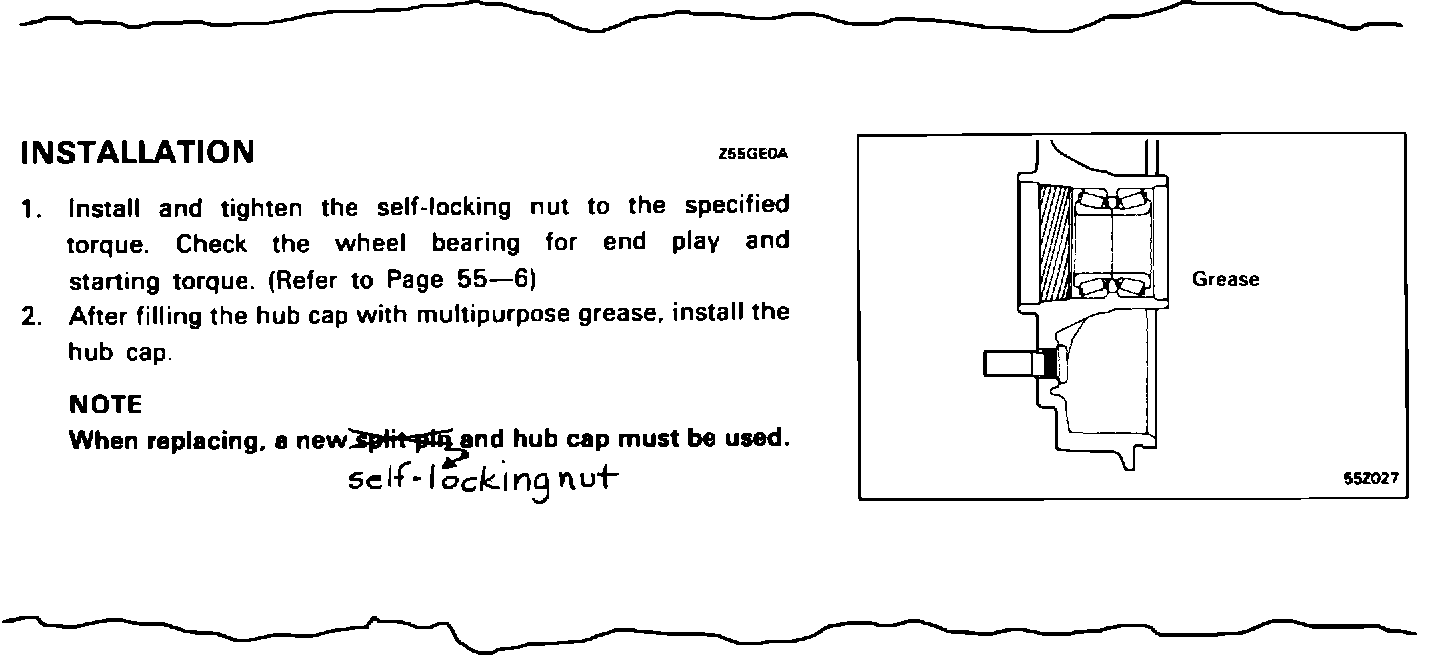

This bulletin describes a change to a note relating to the installation of the rear axle hub in the 1990 Precis Service Manual. To reference this bulletin, please write the TSB number in the revision box on page 55-15 of your 1990 Precis Service Manual.
SERVICE MANUAL AFFECTED
1990 Precis (MSSP-008B-90) Page 55-15
SERVICE MANUAL CORRECTION
The nut used to retain the rear axle hub is a self-locking type that must be replaced by a new one every time it is removed. This nut is to be torqued to 108-145 lb.ft. (147-196 N-m).
PARTS INFORMATION
Nut-self locking 52747-28000
