Warranty Information

Submit as Recall Claim type "C", Menu option "E-5" on your Diamond Network System. Do not submit as "W" claims.

Visual inspection only.

Labor Operation Code: C9404LXX
Time Allowance: 0.2 hr

Note:
The "O" in above labor code is the number Zero.





A sample visual inspection / no replacement work claim is shown in the illustration.

Removal/Reinstallation of converter for inspection - replacement not necessary

Labor Operation Code: C9404LXX
Time Allowance: 0.4 hr

Note:
The "O" in above labor code is the number Zero.

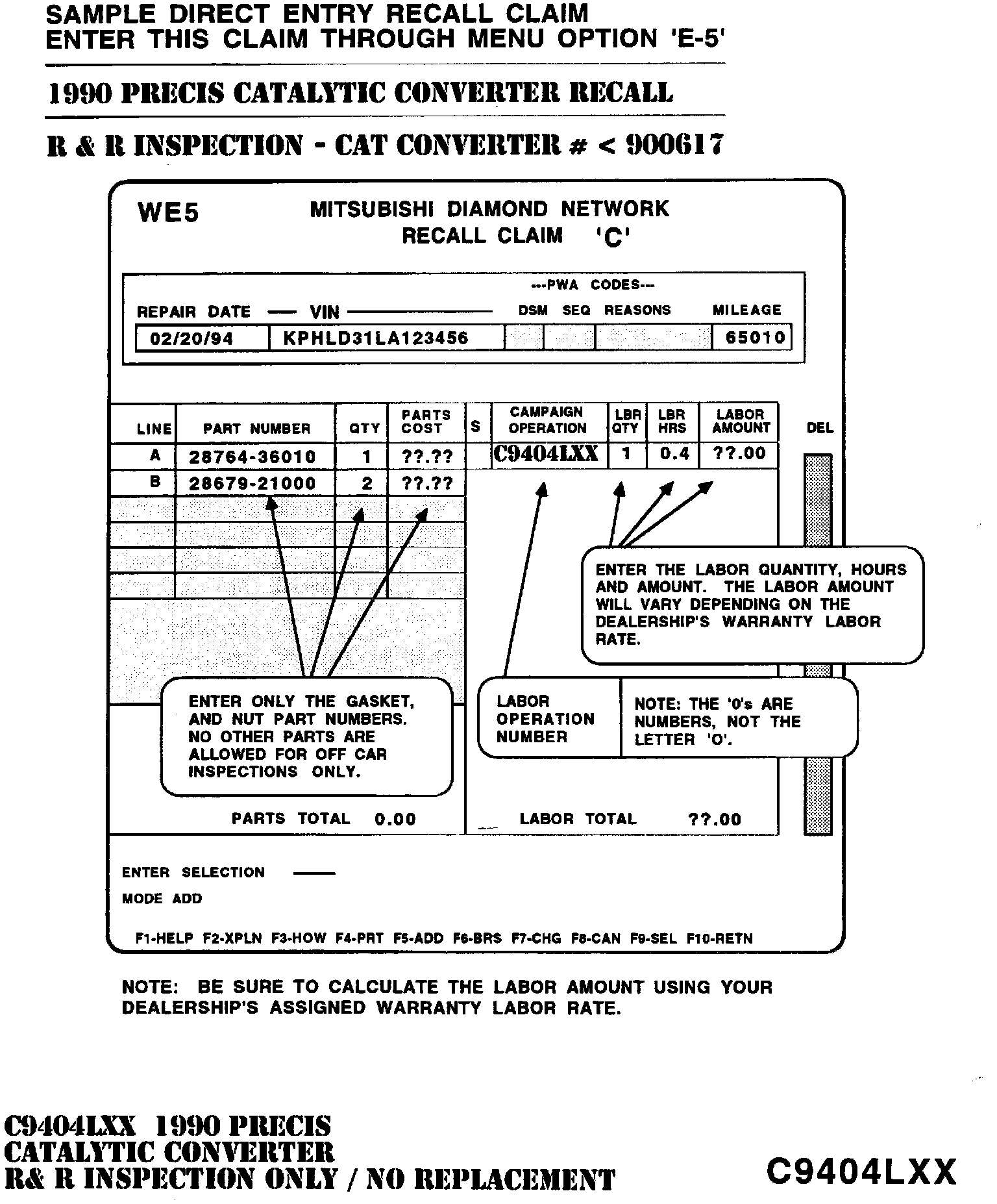

A sample R&R Inspection / no replacement work claim is shown in the illustration.

Inspection and Catalytic Converter Replacement

Labor Operation Code: C9404LXX
Time Allowance: 0.4 hr

Note:
The "O" in above labor code is the number Zero.





A sample R&R Inspection / with replacement work claim is shown in the illustration.
