Antilock Brakes / Traction Control Systems

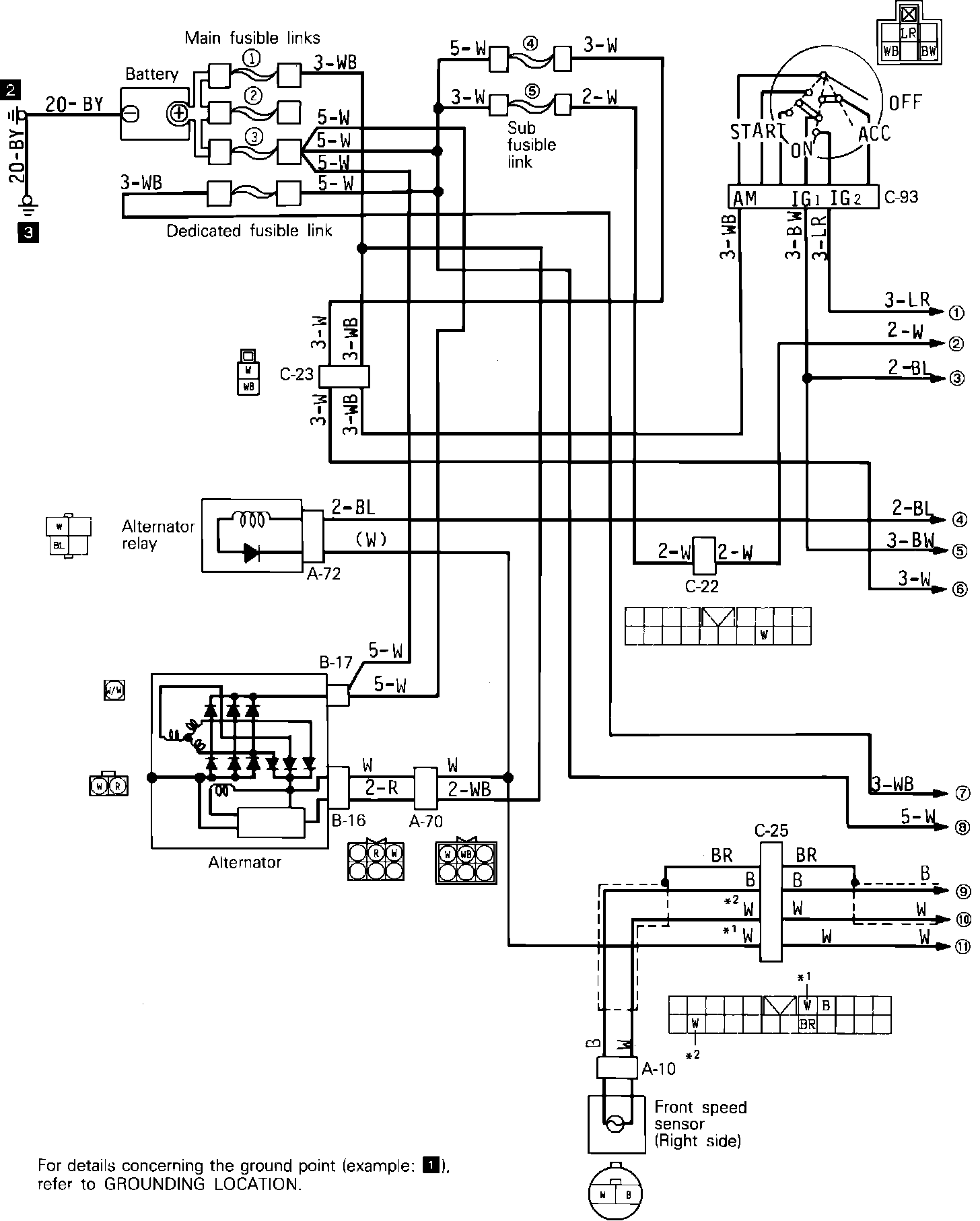

Fig. 11 Anti-lock Brake System Wiring Diagram (Part 1 Of 3). Sigma:

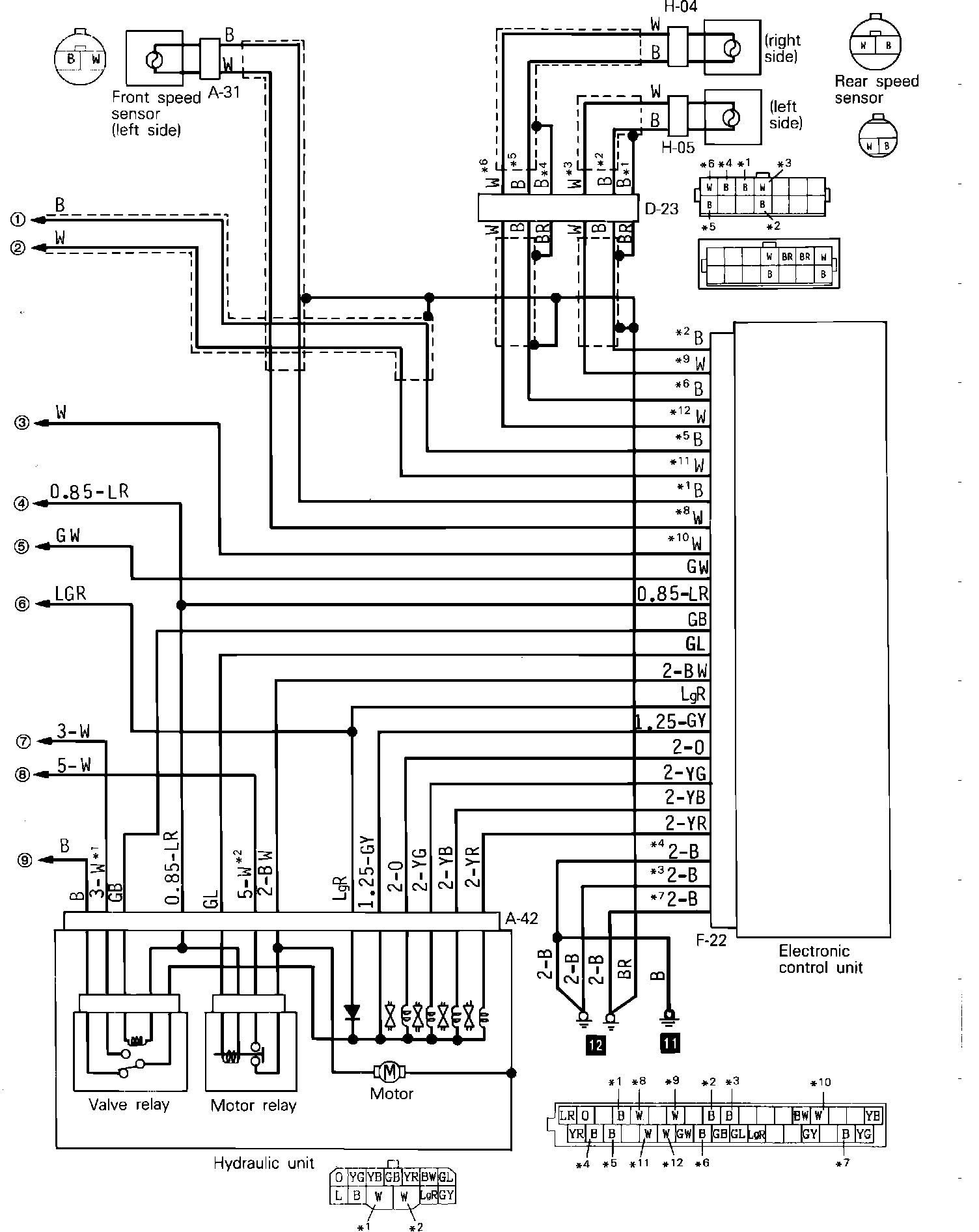

Fig. 11 Anti-lock Brake System Wiring Diagram (Part 2 Of 3). Sigma:

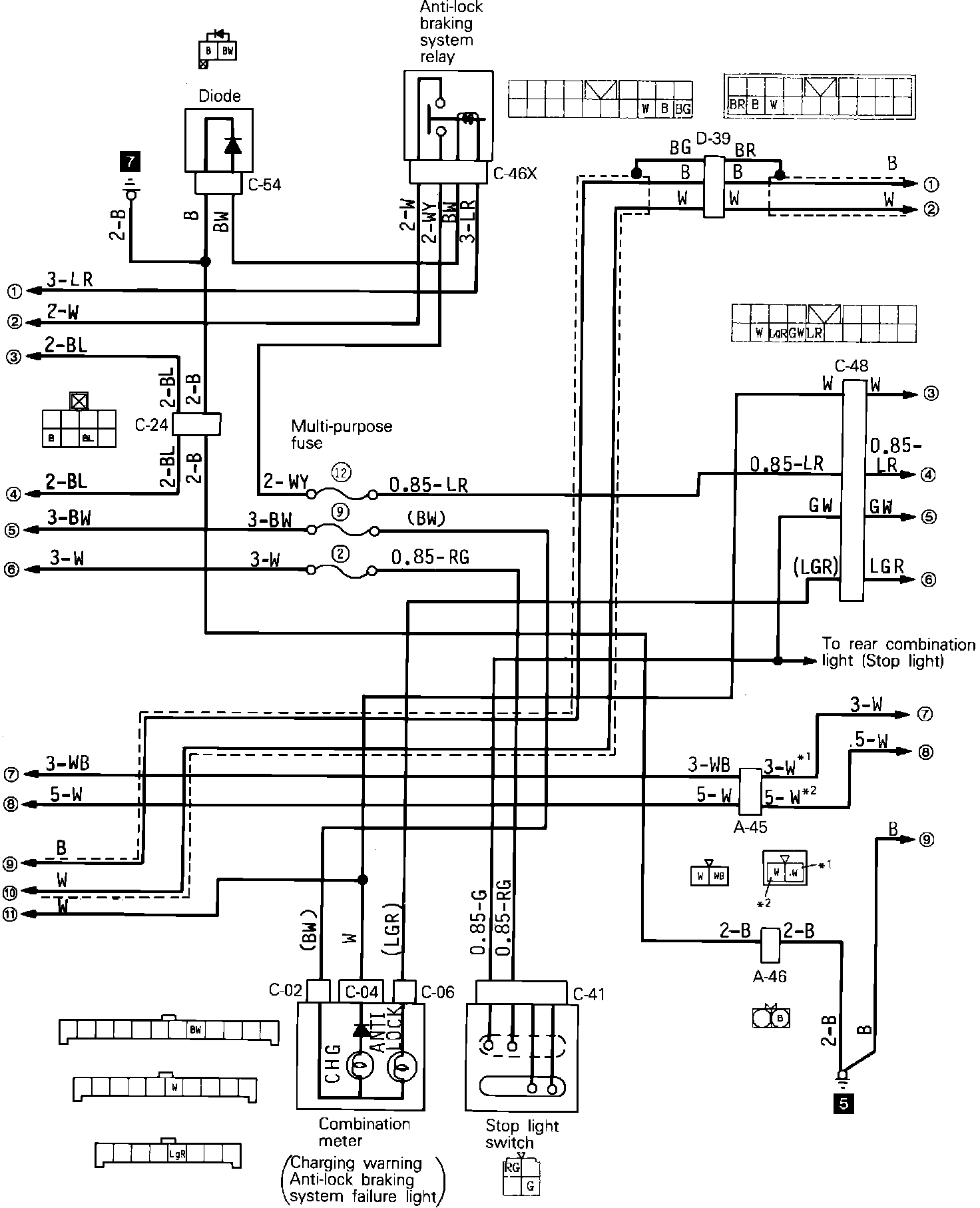

Fig. 11 Anti-lock Brake System Wiring Diagram (Part 3 Of 3). Sigma:



Anti-Lock Brake System:



Anti-Lock Brake System:



Anti-Lock Brake System:
