Transmission Control Systems
Transmission Control Systems

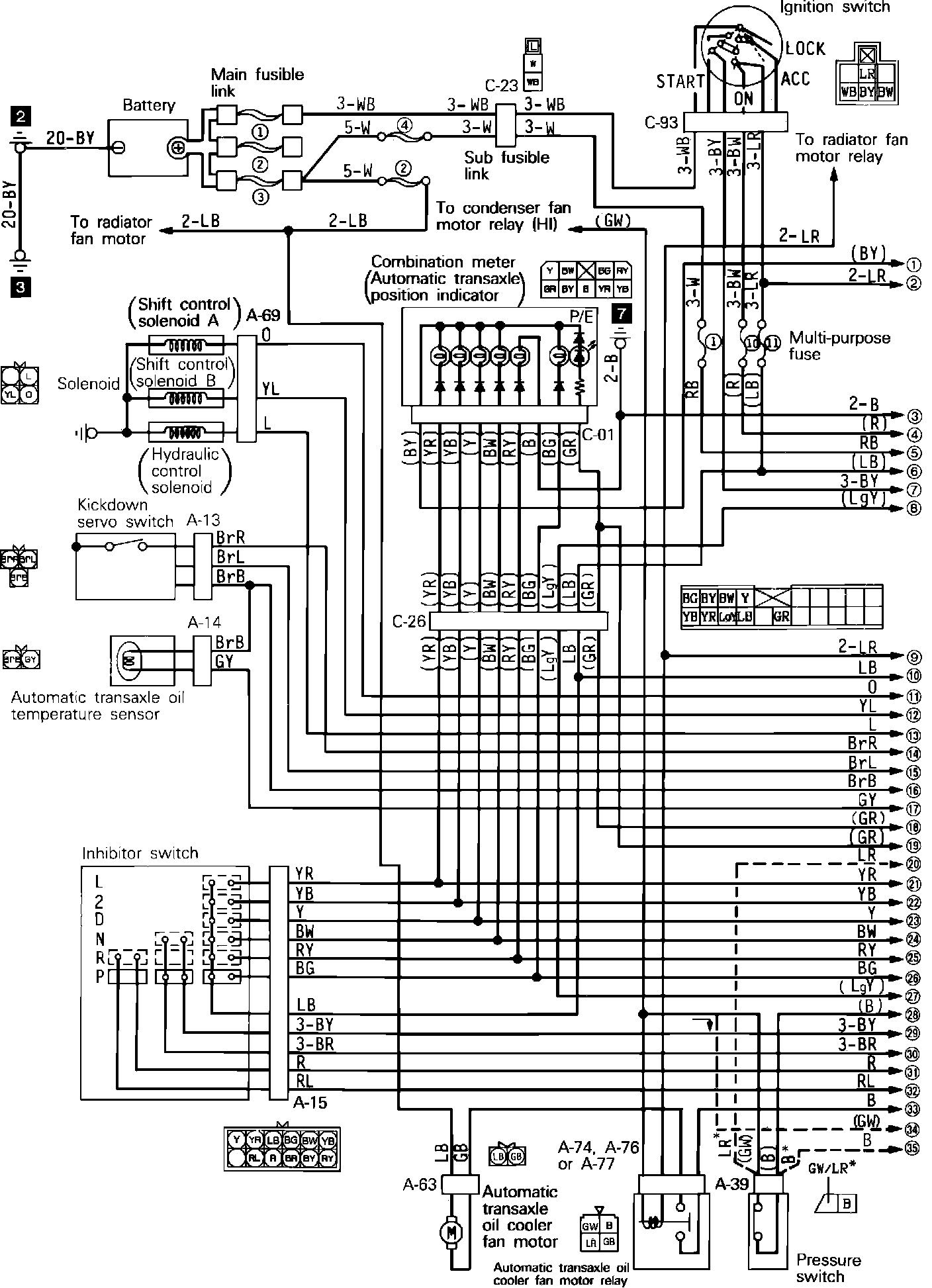

Electronic controlled 4-Speed Automatic Transaxle:

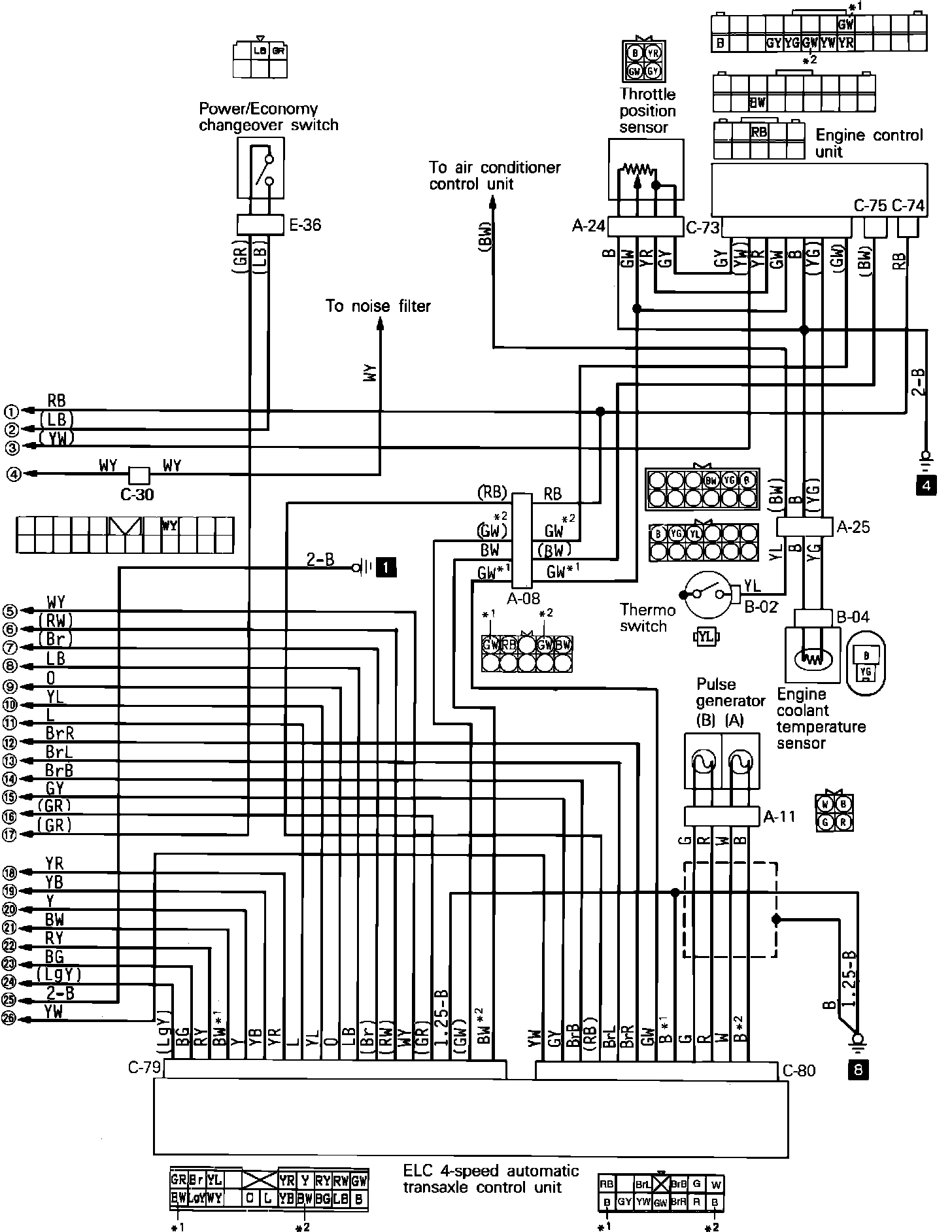

Electronic controlled 4-Speed Automatic Transaxle:
Electronic controlled 4-Speed Automatic Transaxle:
