Airbag - Trouble Code 43 Manual Correction
NO.: TSB-92-52B-003DATE: August, 1992
MODEL: 1990 Sigma
SUBJECT:
SRS WARNING LIGHT DIAGNOSIS - SERVICE MANUAL REVISION
[TSB Revision: TSB-92-52B-003]
PURPOSE
This bulletin revises the Supplemental Restraint System (SRS) "Warning Light Stays On" (Code 43) flow chart shown in the 1990 Sigma V6 Service Manual. As shown please make the indicated service manual revisions and as reference to this Technical Service Bulletin, please write this TSB number in the TSB Revision box on the affected service manual page.
AFFECTED SERVICE MANUAL
1990 Sigma V6, Page 52-69
SERVICE MANUAL REVISION

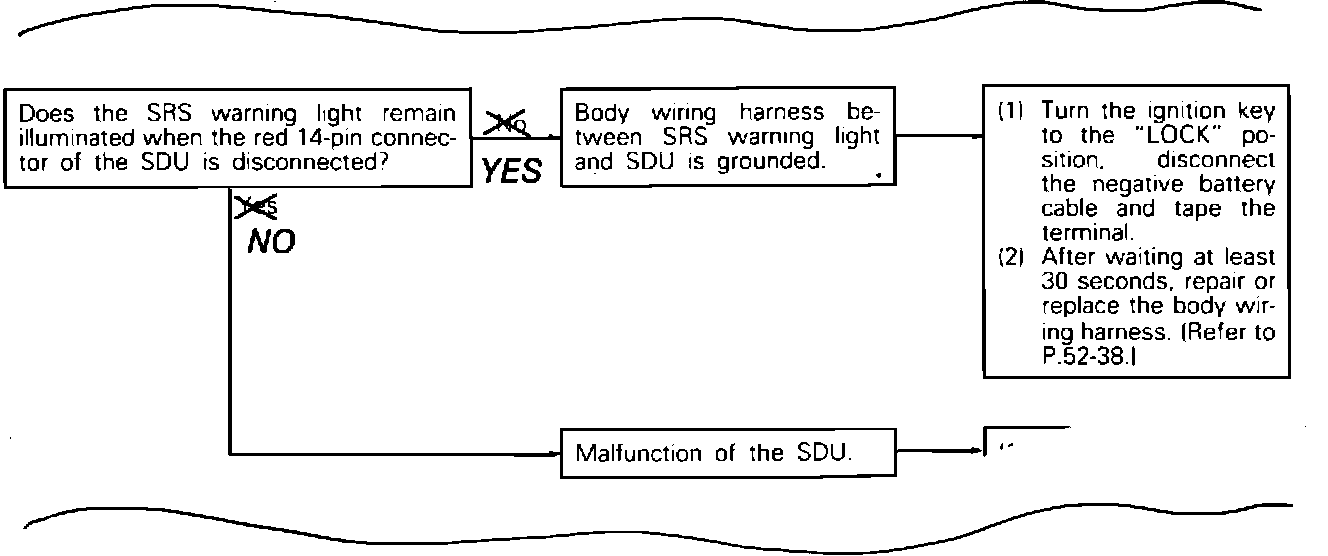

As shown, cross out "YES" and "NO" and rewrite in the correct places.
