Symptom Related Diagnostic Procedures

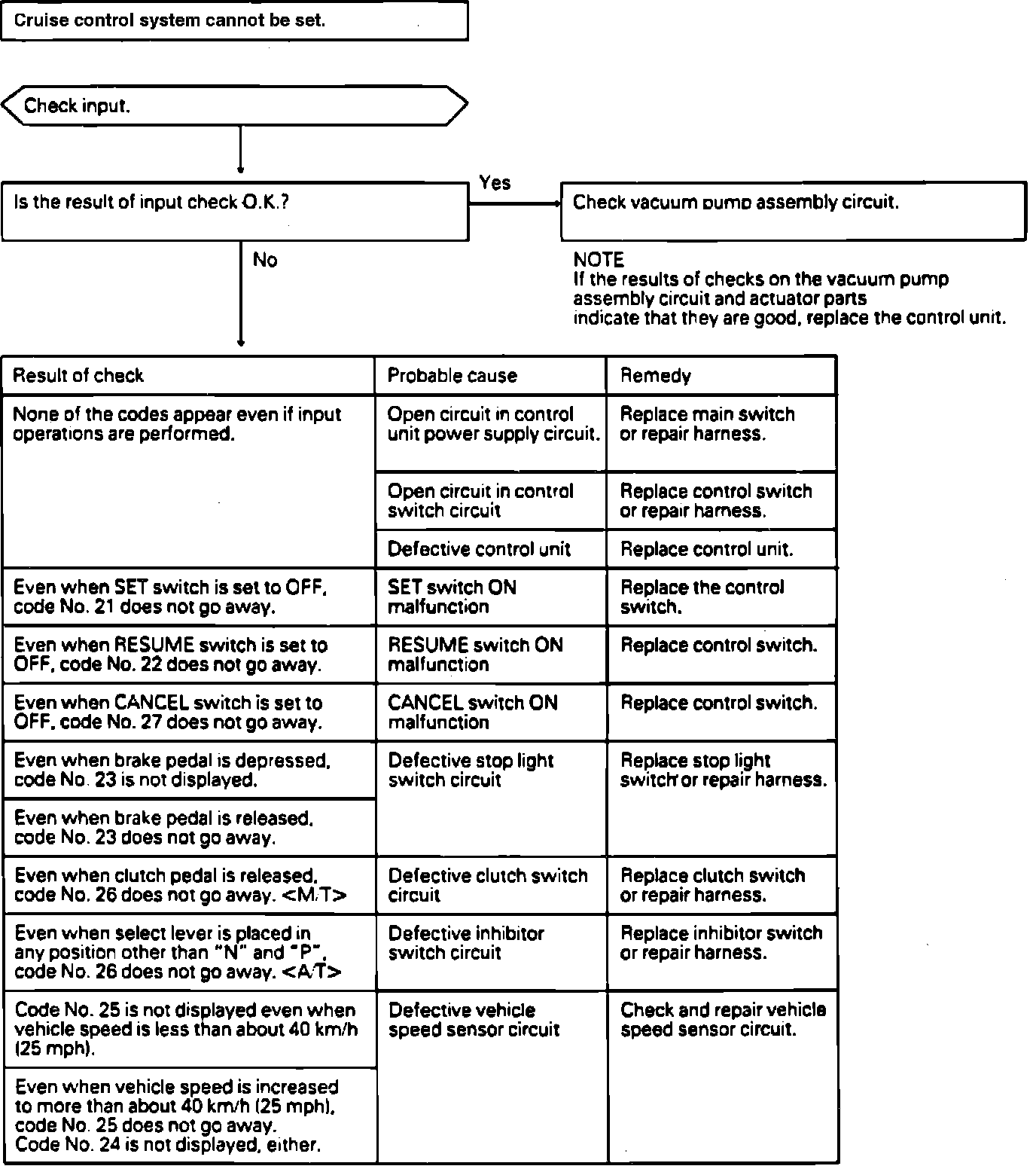

Fig. 11 Troubleshooting Flow Chart (Part 1 Of 4):

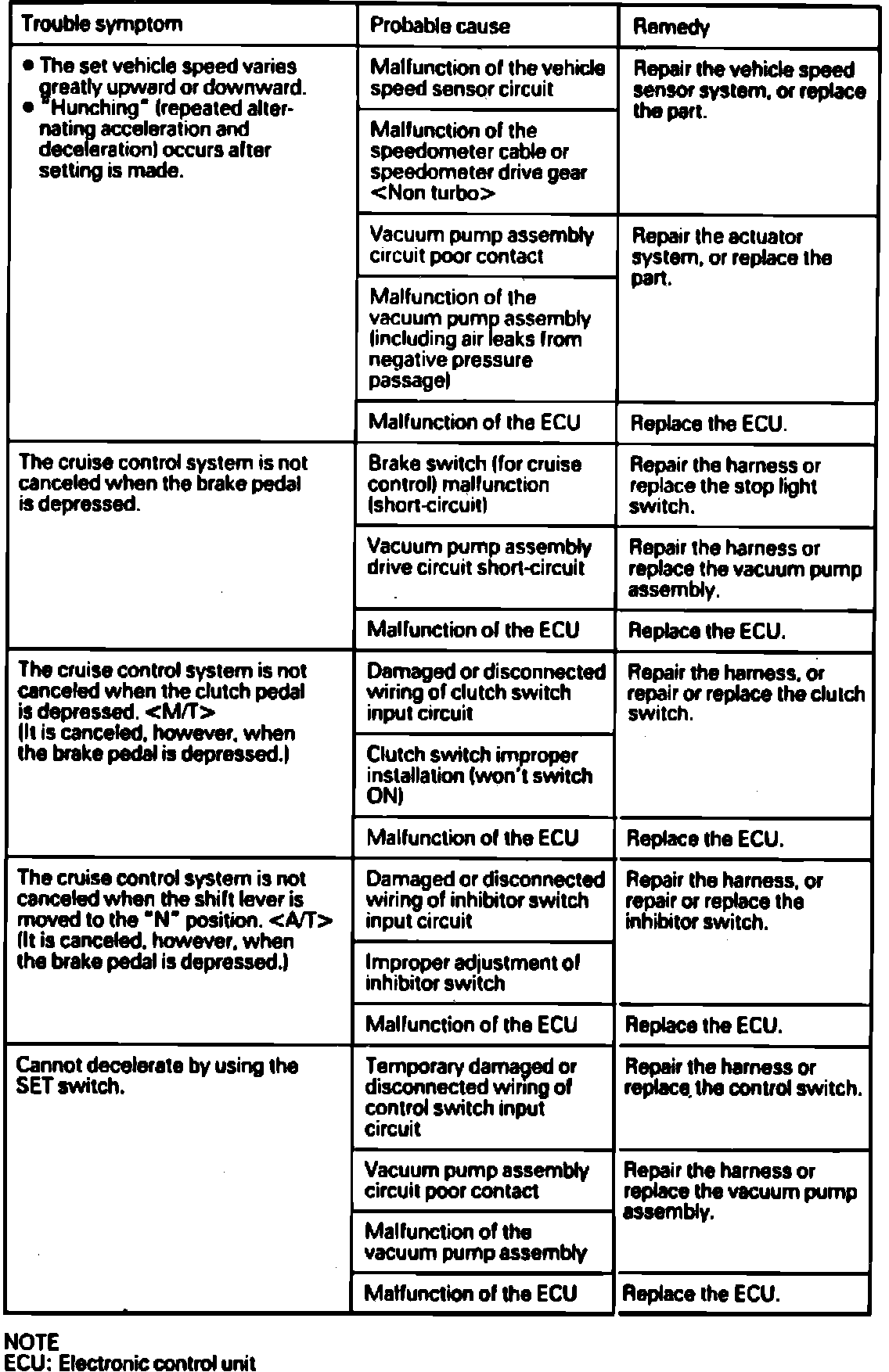

Fig. 11 Troubleshooting Flow Chart (Part 2 Of 4):

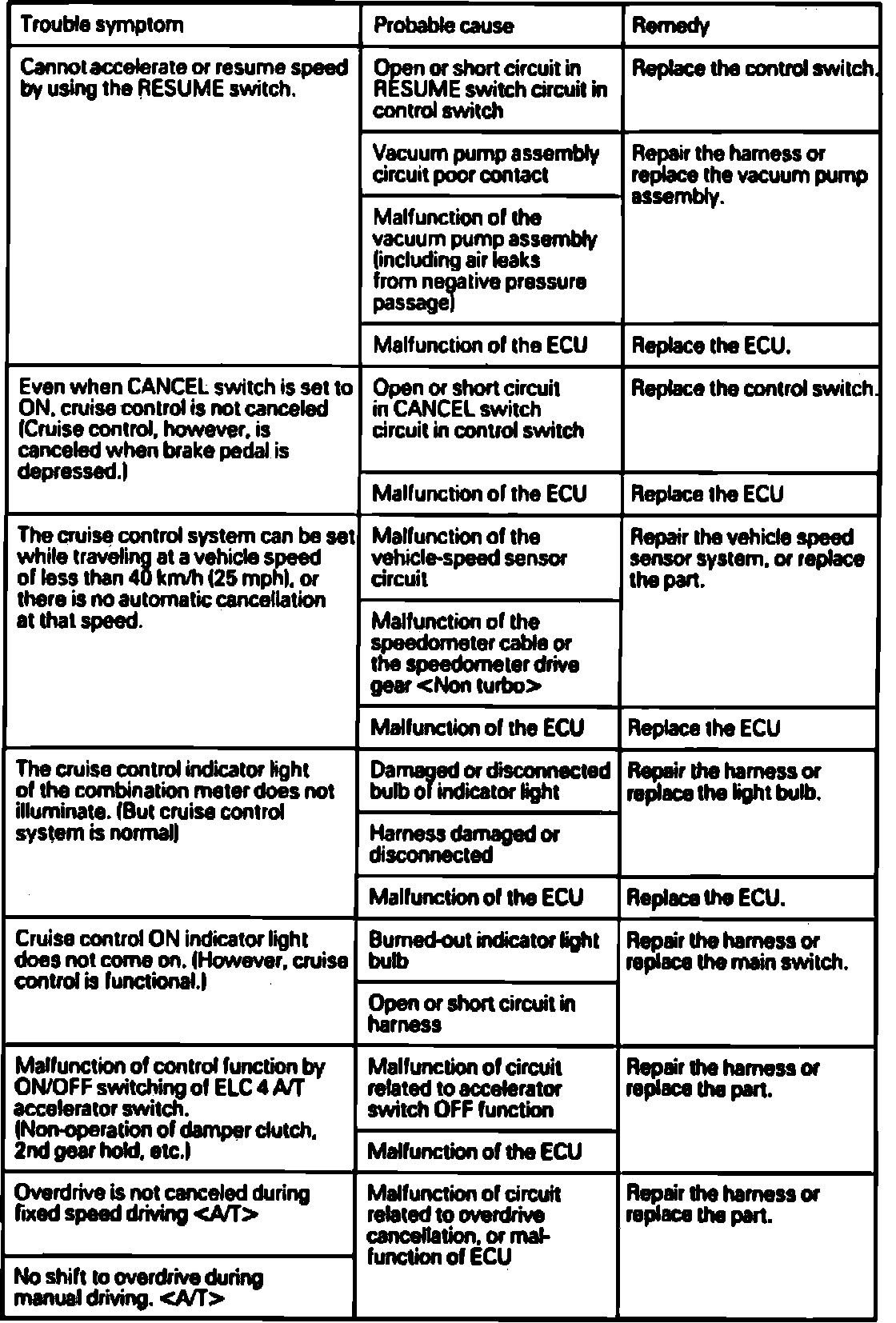

Fig. 11 Troubleshooting Flow Chart (Part 3 Of 4):

Fig. 11 Troubleshooting Flow Chart (Part 4 Of 4):
