Operation CHARM: Car repair manuals for everyone.
Home >> Mitsubishi >> 1991 >> 3000GT AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems

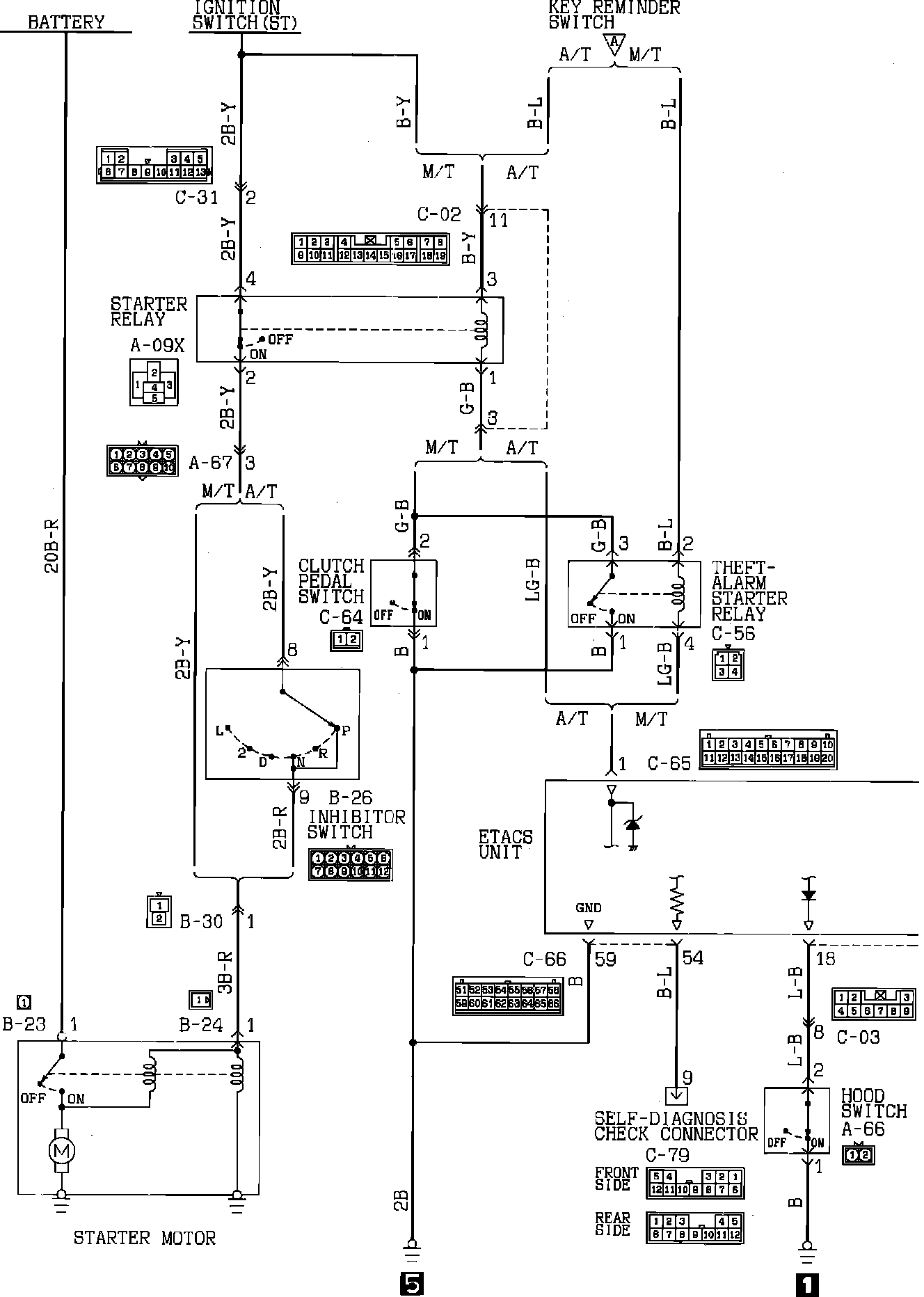

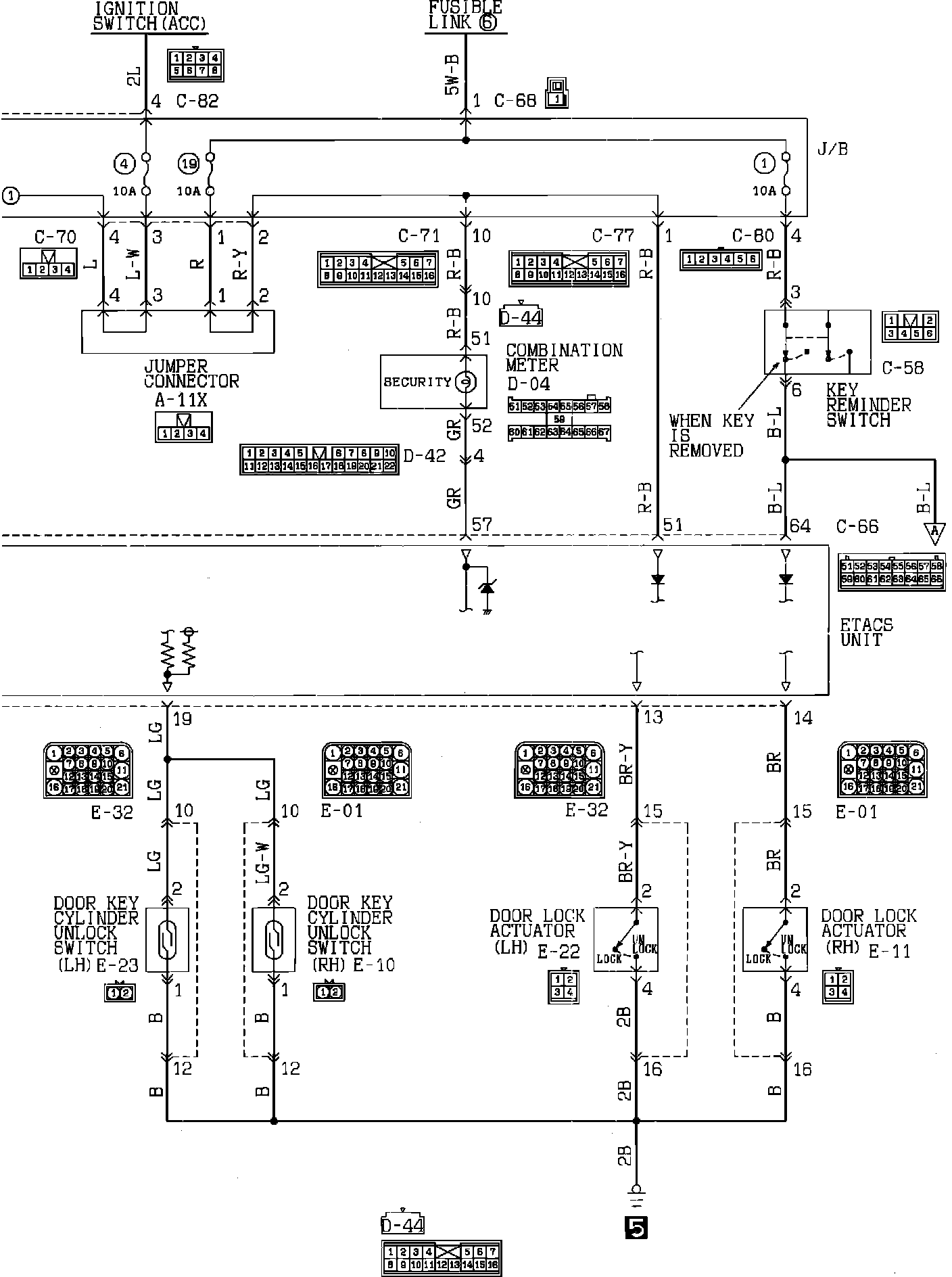

Antitheft and Alarm Systems

Part 1 Of 4:



Part 2 Of 4:



Part 3 Of 4:



Part 4 Of 4:
