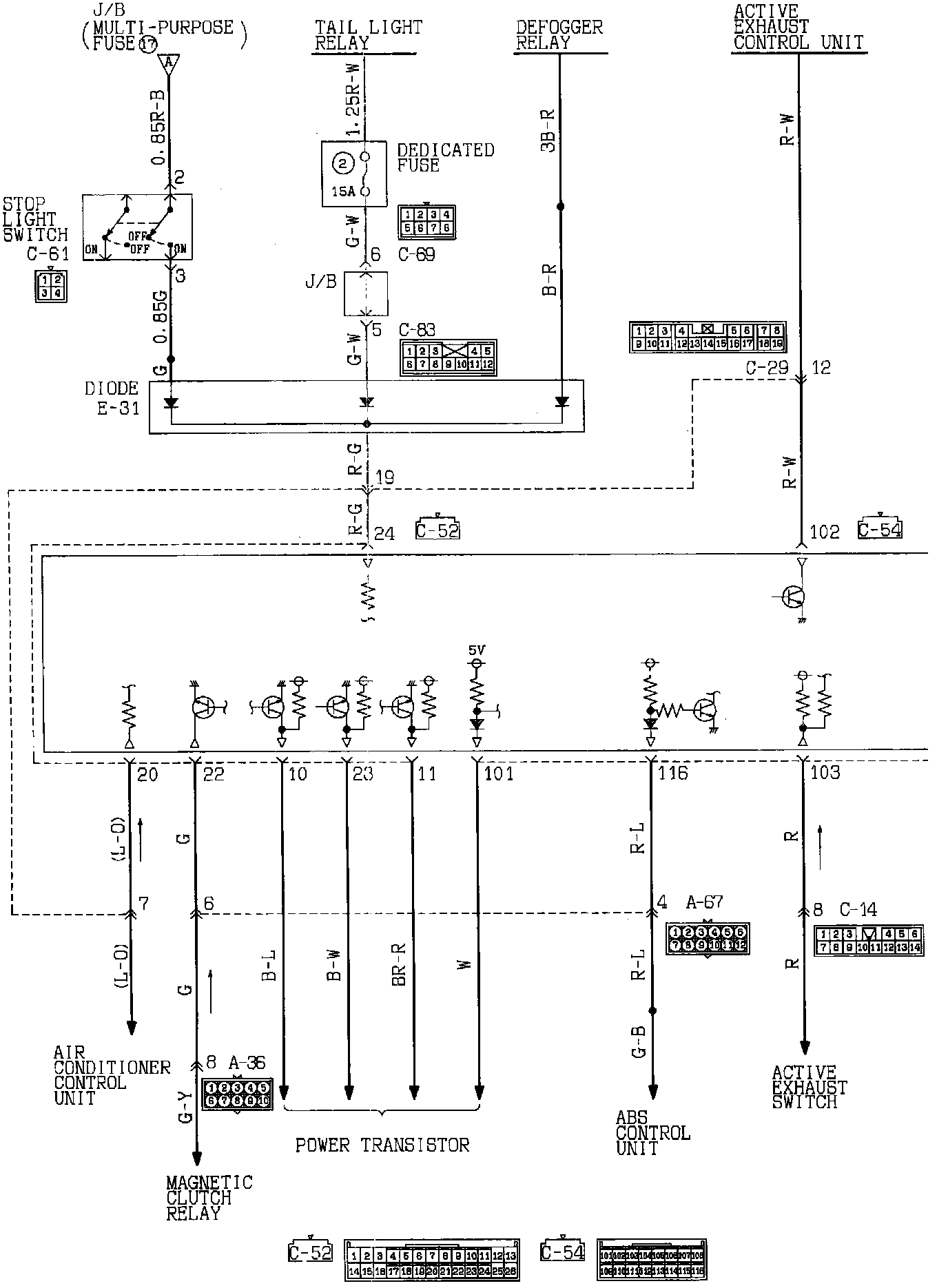

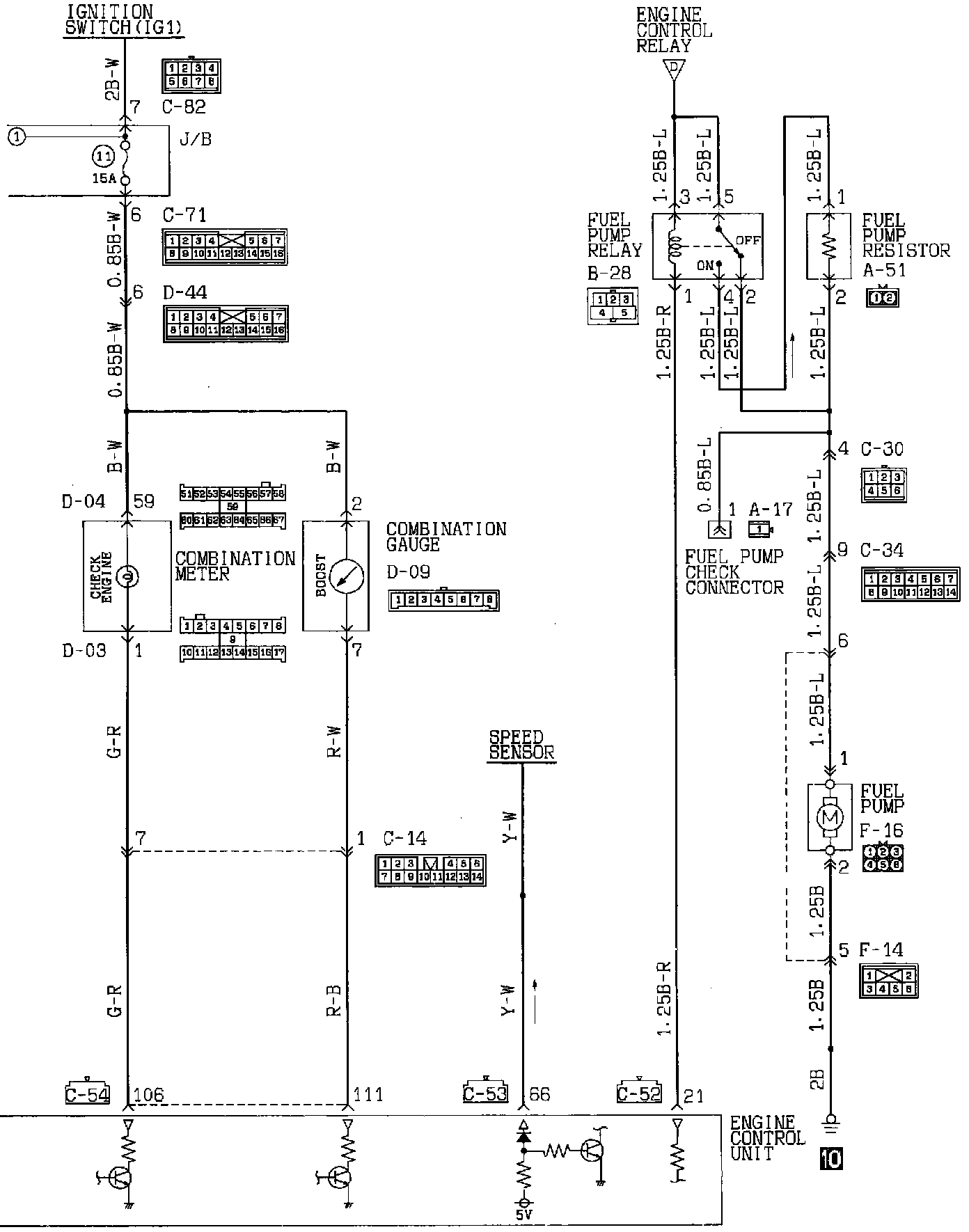

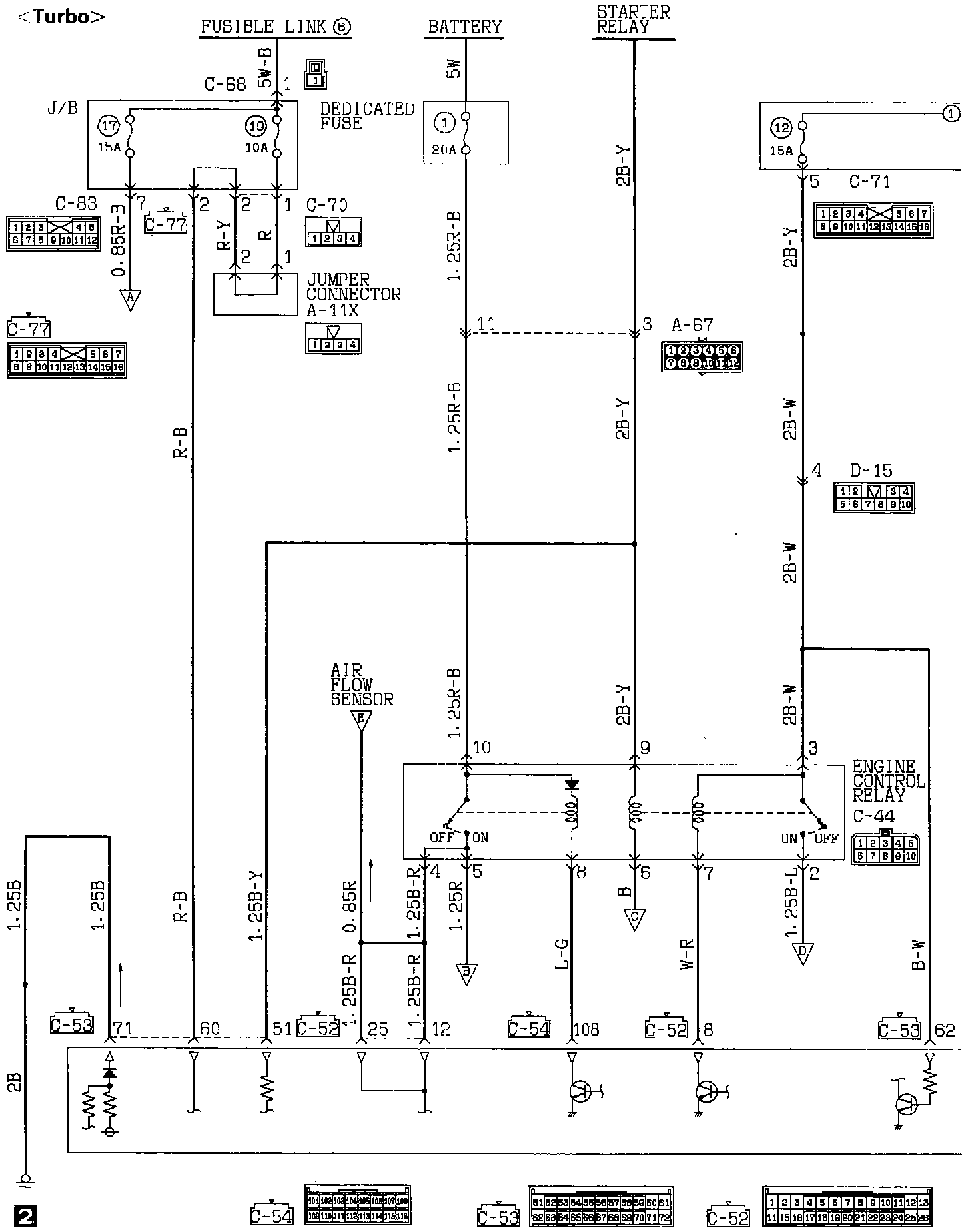

Computers and Control Systems

Part 1 Of 6:





Part 2 Of 6:





Part 3 Of 6:





Part 4 Of 6:





Part 5 Of 6:





Part 6 Of 6:
