Door Locks

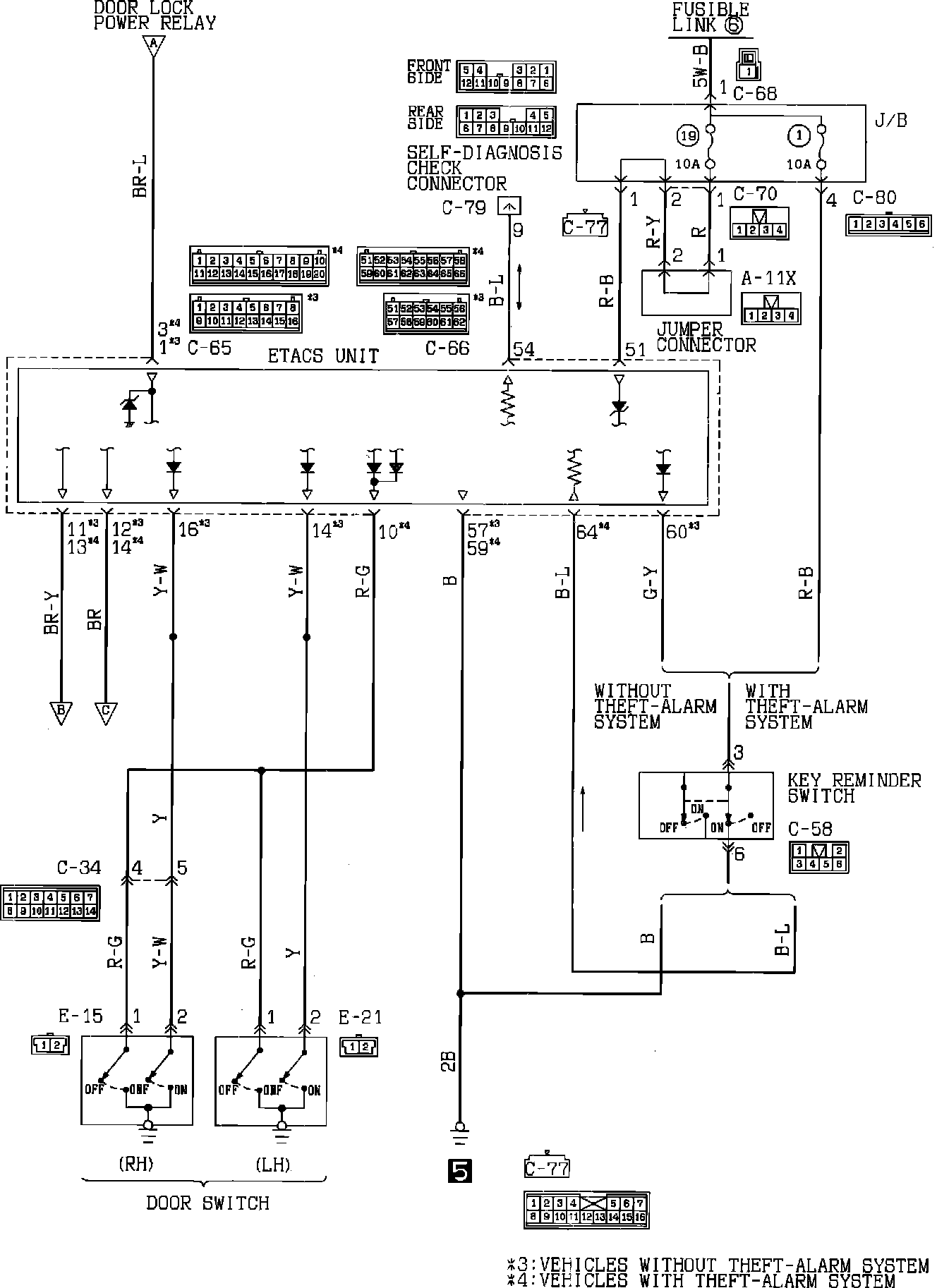

Power Door Locks (Central Locking) - Part 1 Of 2:

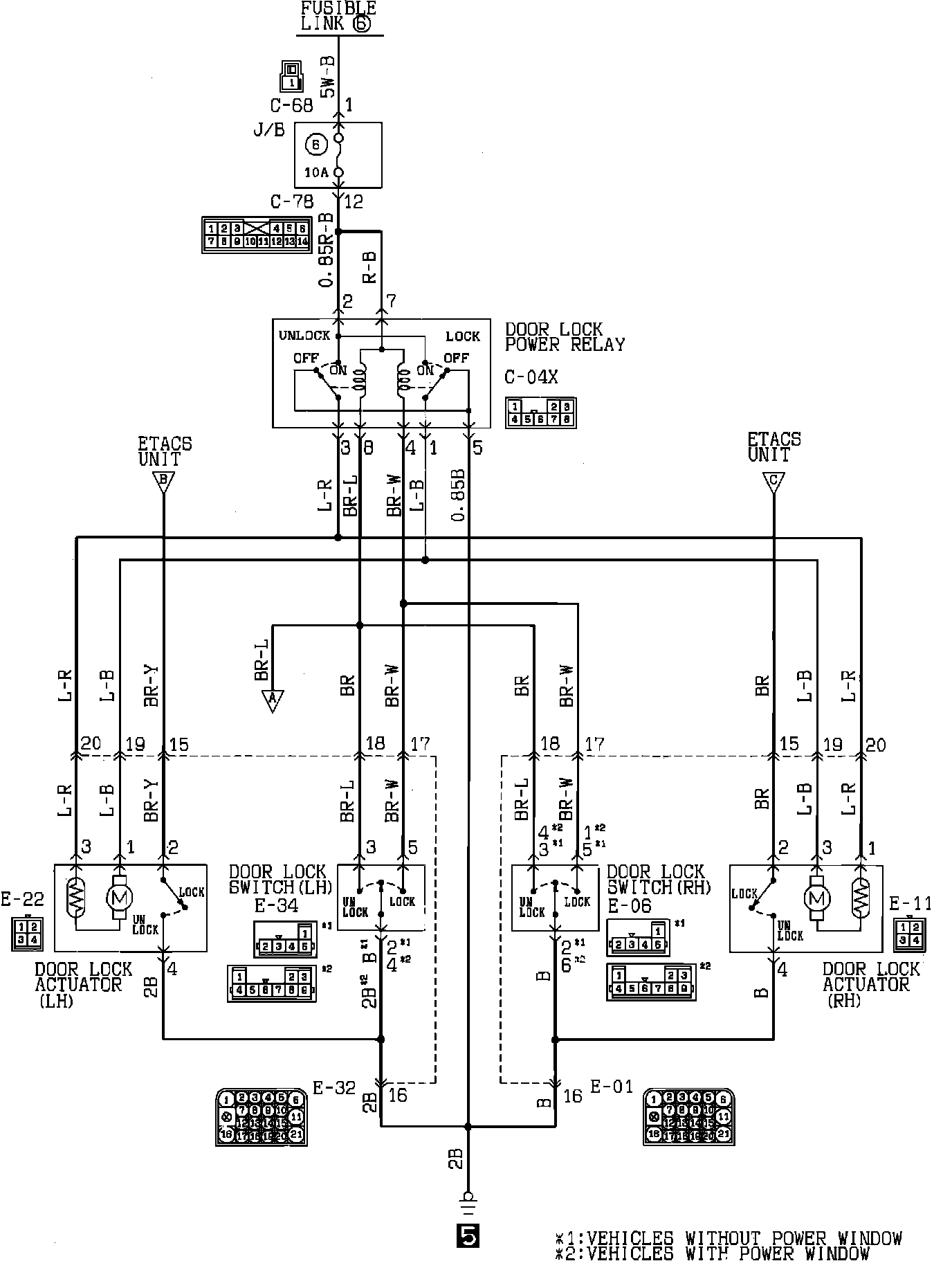

Power Door Locks (Central Locking) - Part 2 Of 2:
