Home >> Mitsubishi >> 1991 >> 3000GT AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic )

Suspension Control ( Automatic - Electronic )

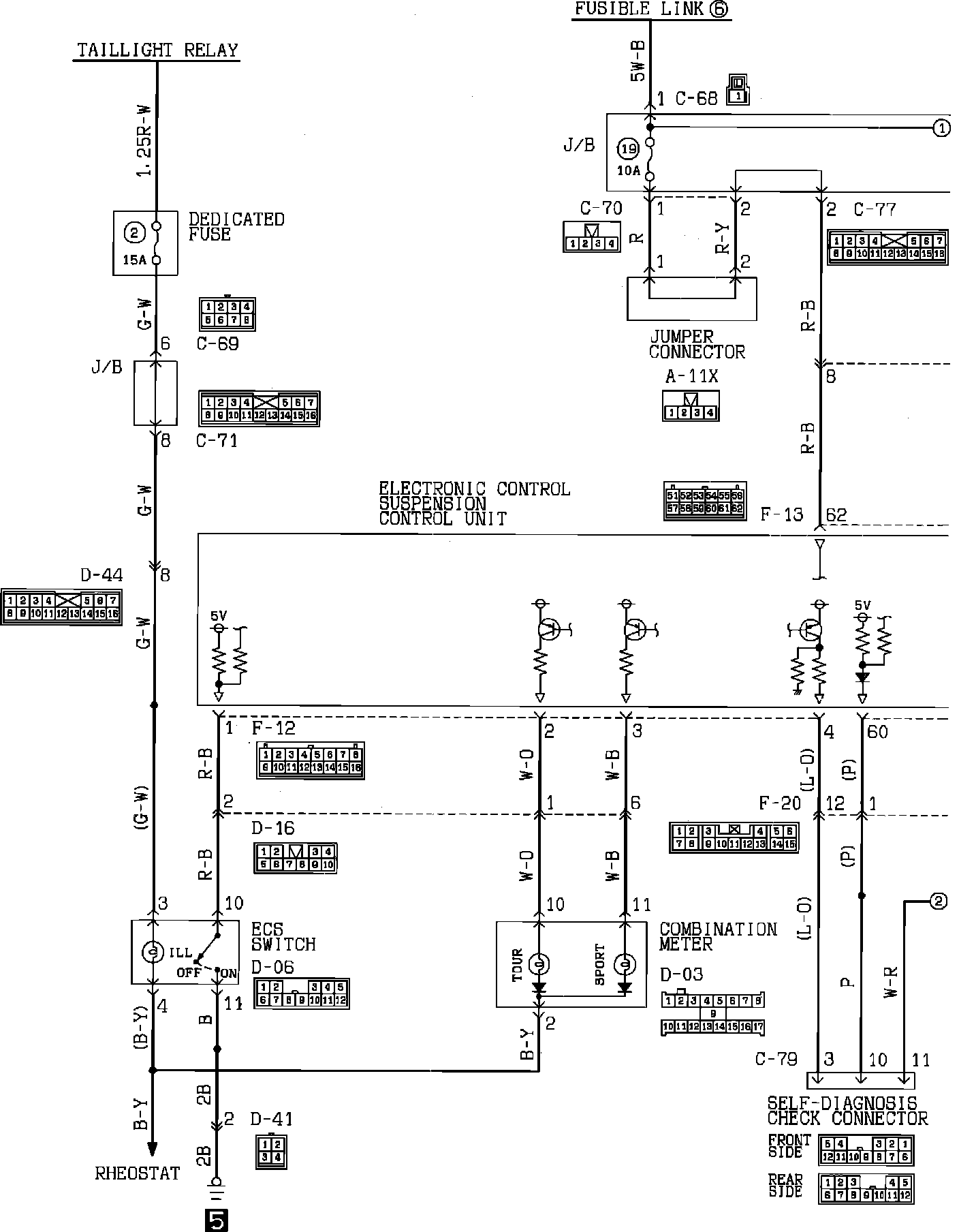

Electronically Controlled Suspension (ECS):



Electronically Controlled Suspension (ECS):



Electronically Controlled Suspension (ECS):
