Home
>>
Mitsubishi
>>
1991
>>
3000GT AWD V6-2972cc 3.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Computers and Control Systems
Computers and Control Systems

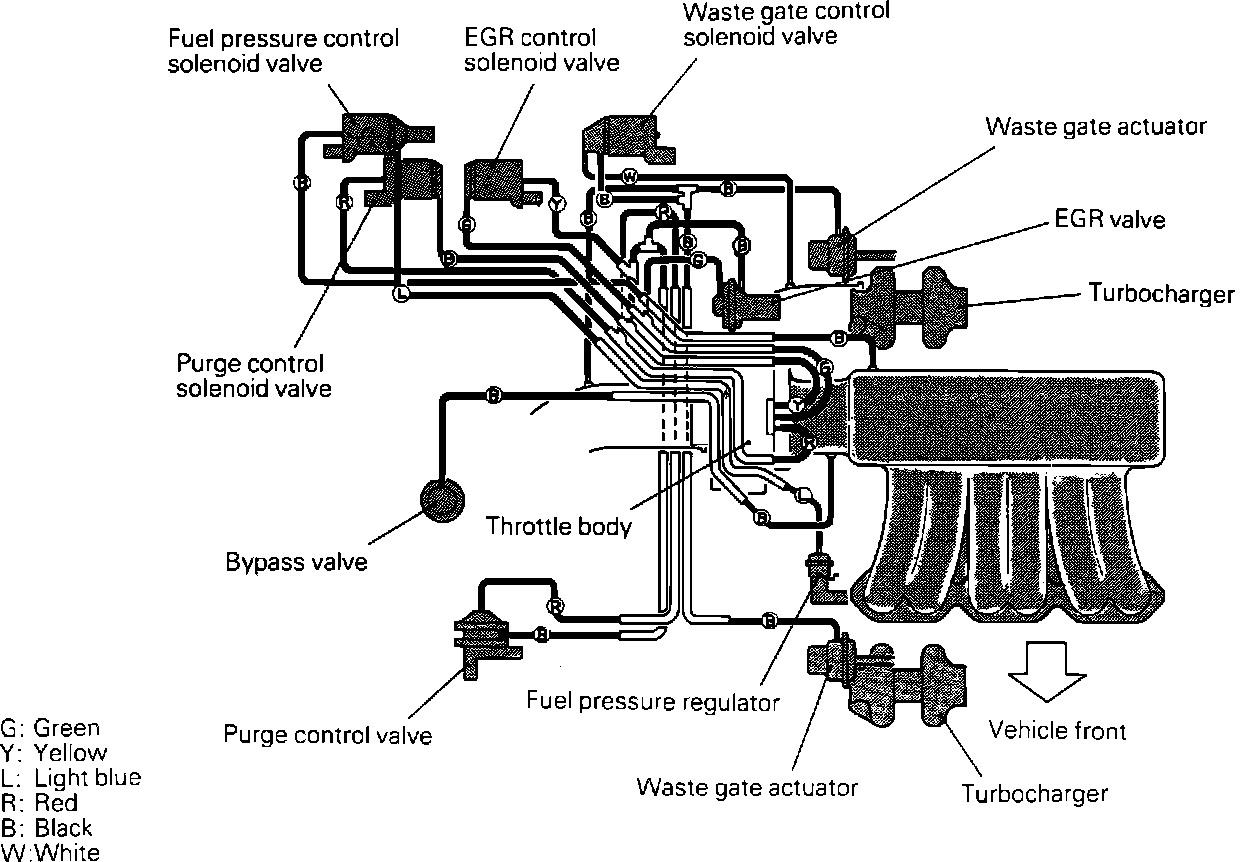

Vacuum Hose Diagram:
