Control Module HVAC: Locations

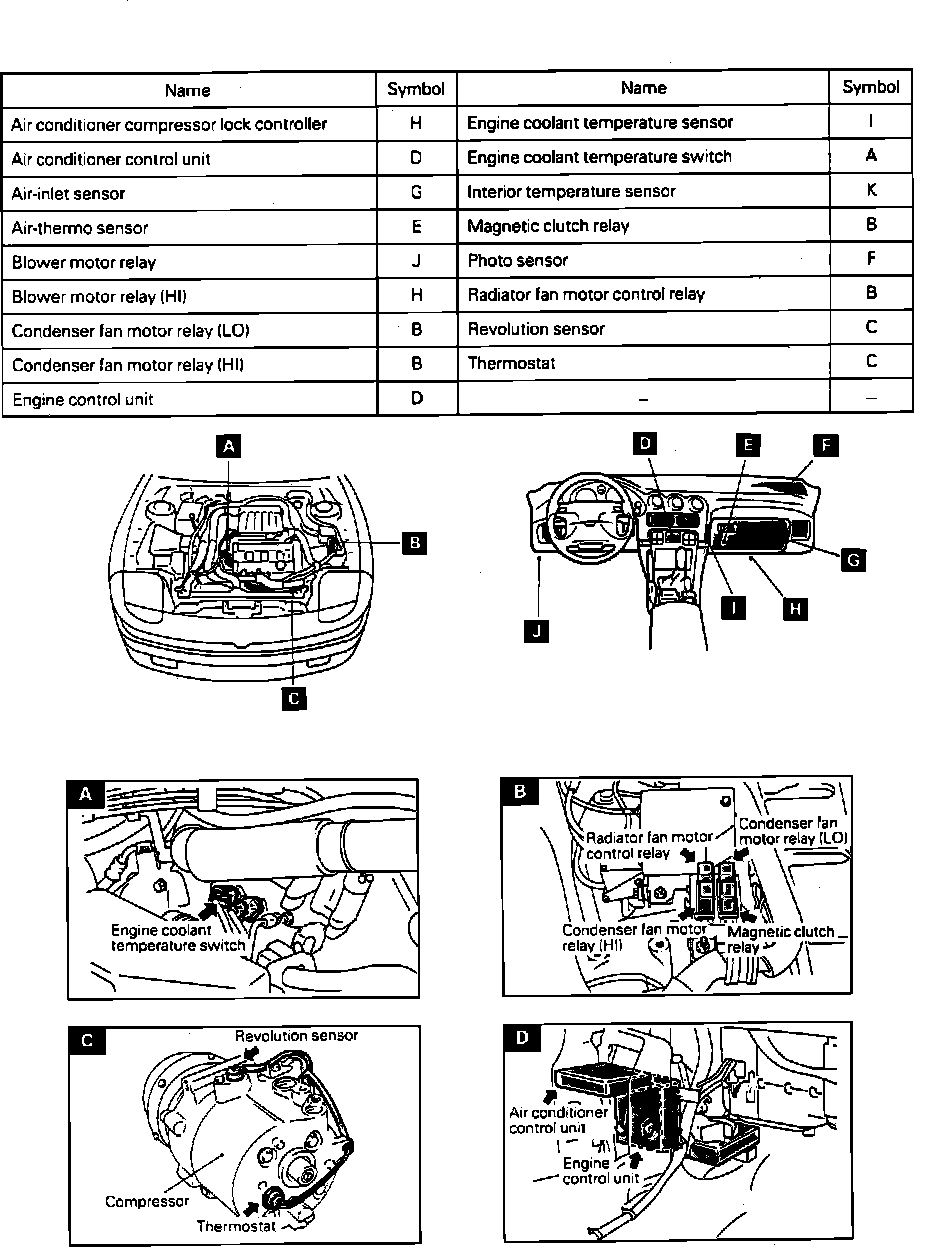

A/C Component Locations (Part 1 Of 2):

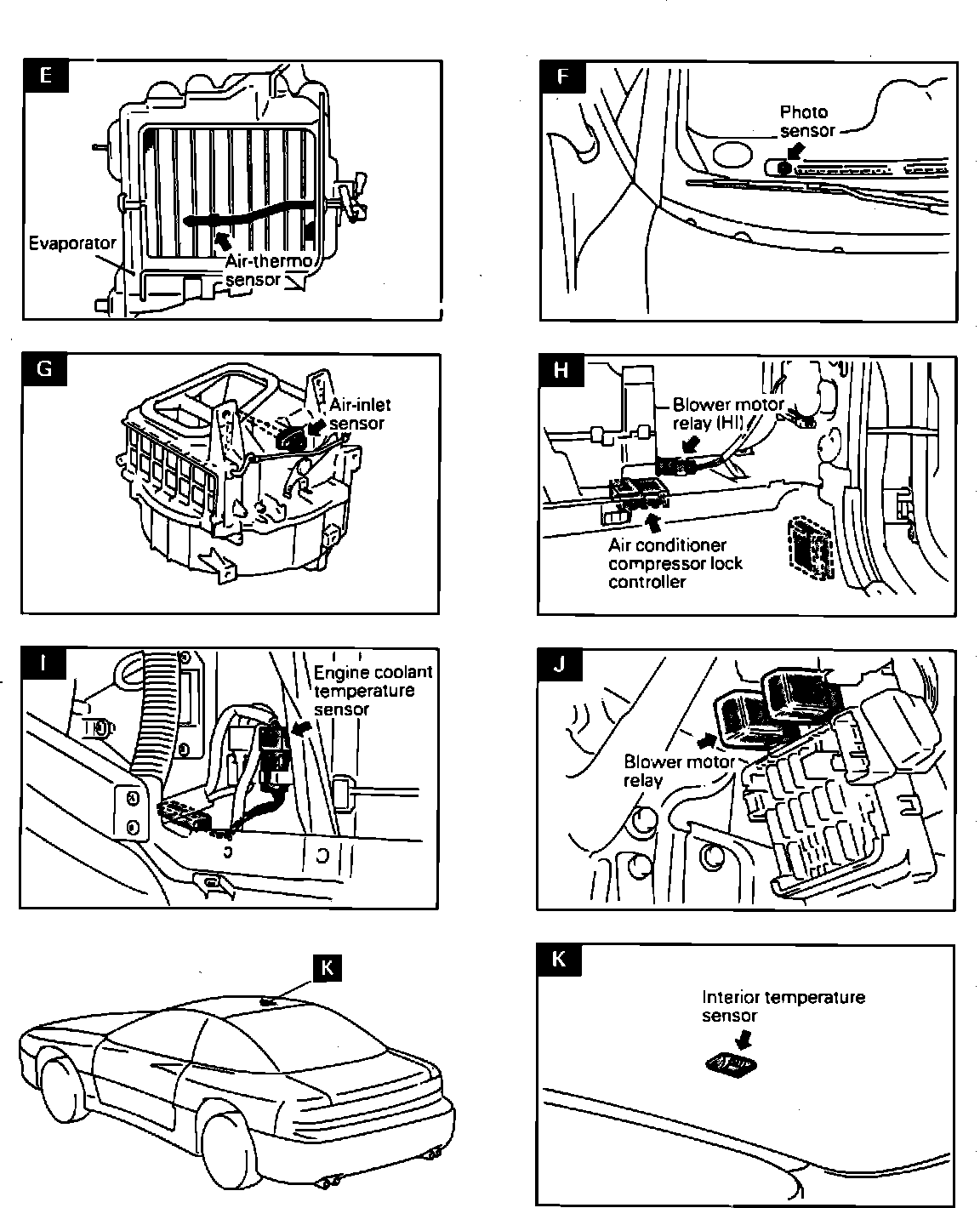

A/C Component Locations (Part 2 Of 2):
Behind Center Of I/P
