Electrical Diagrams

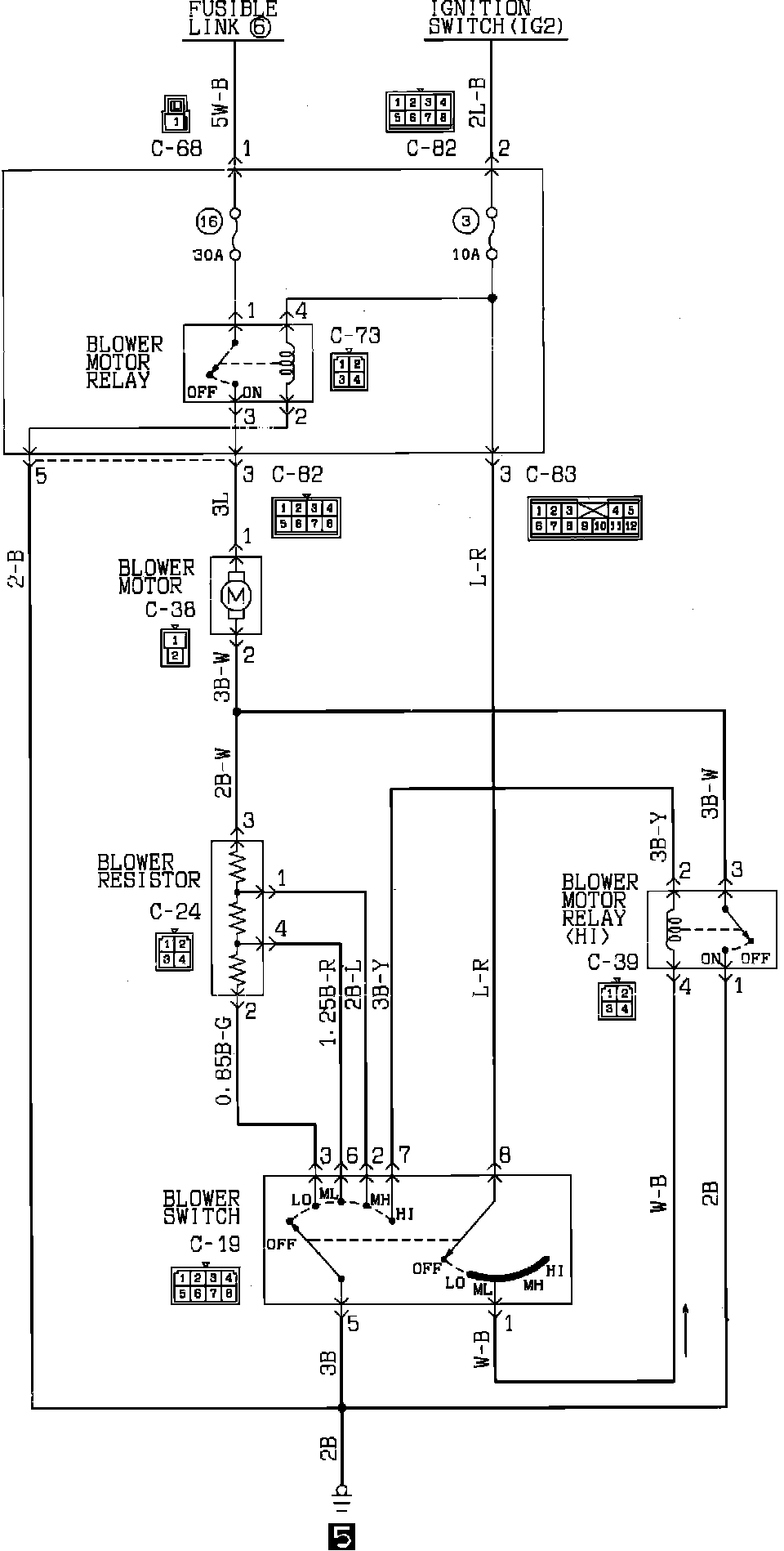

Heater:

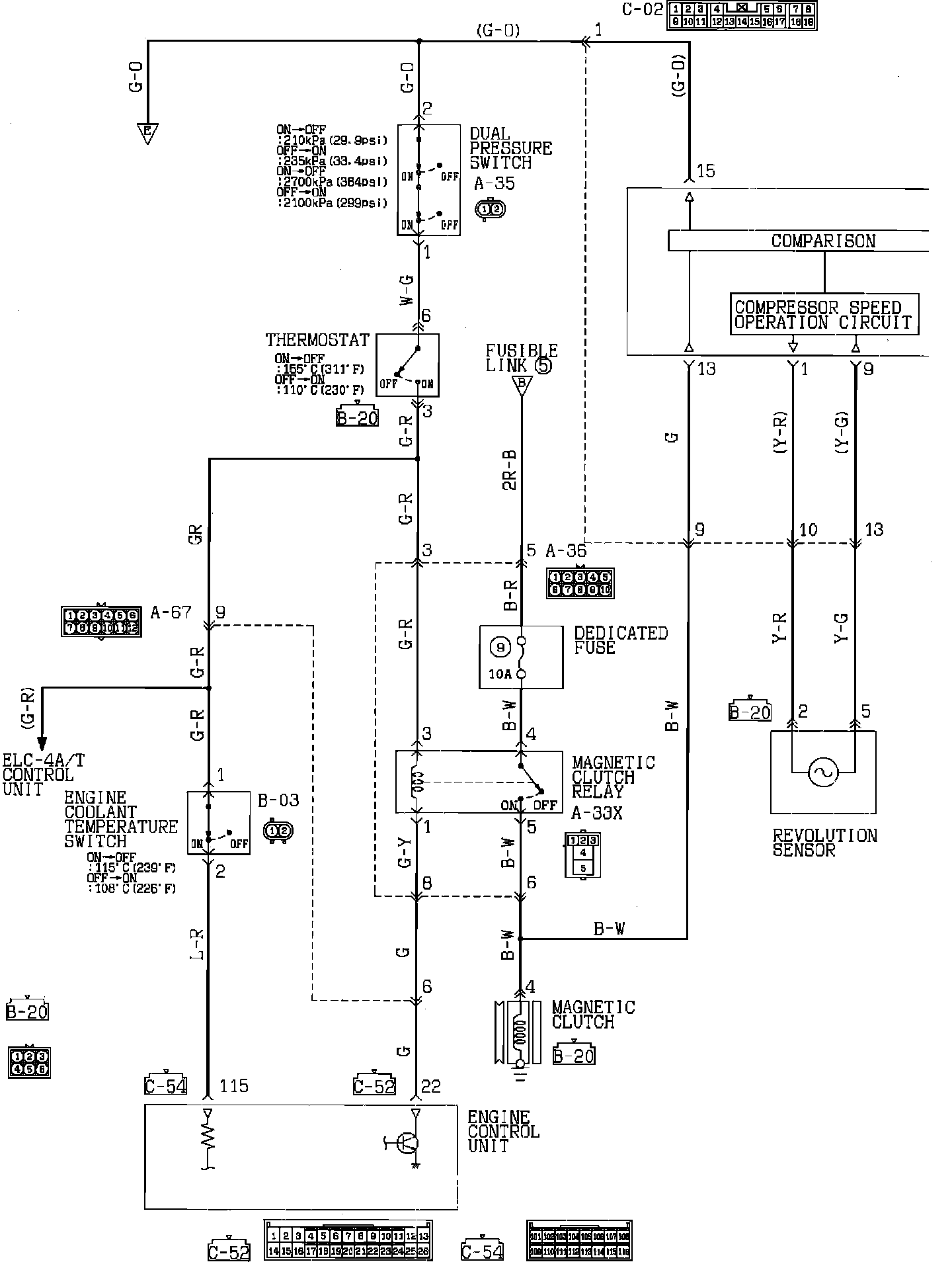

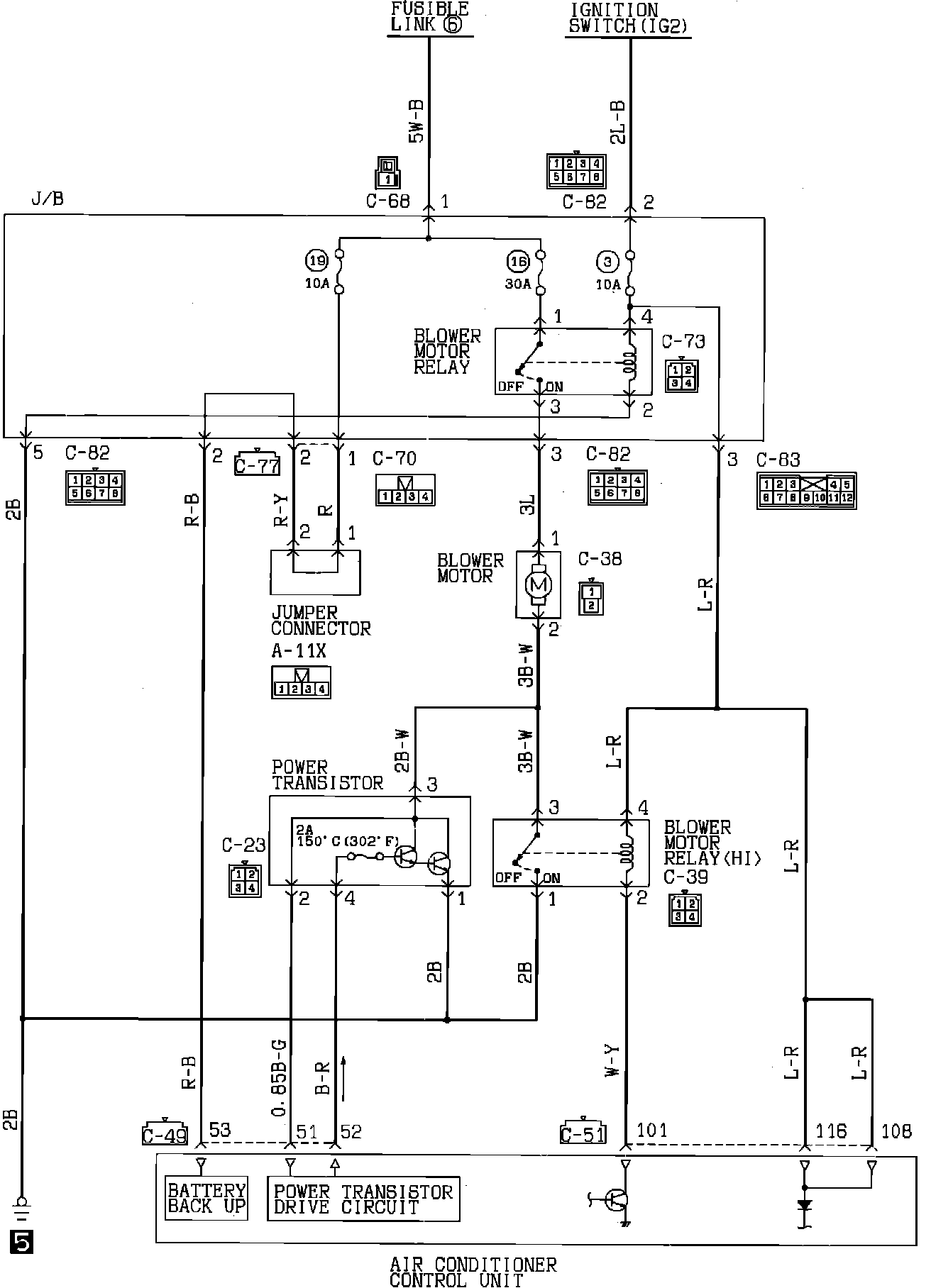

Air Conditioner (Manual):

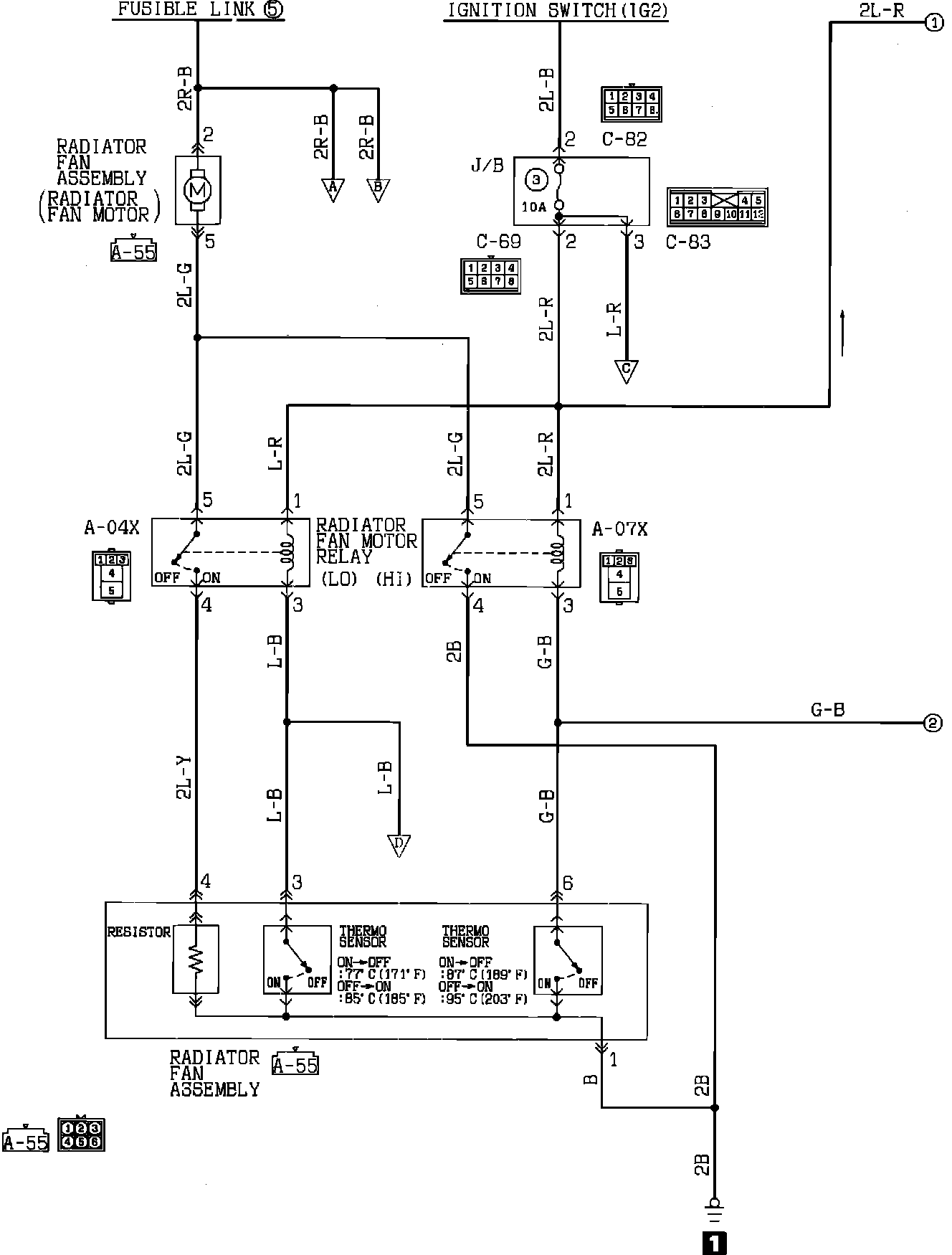

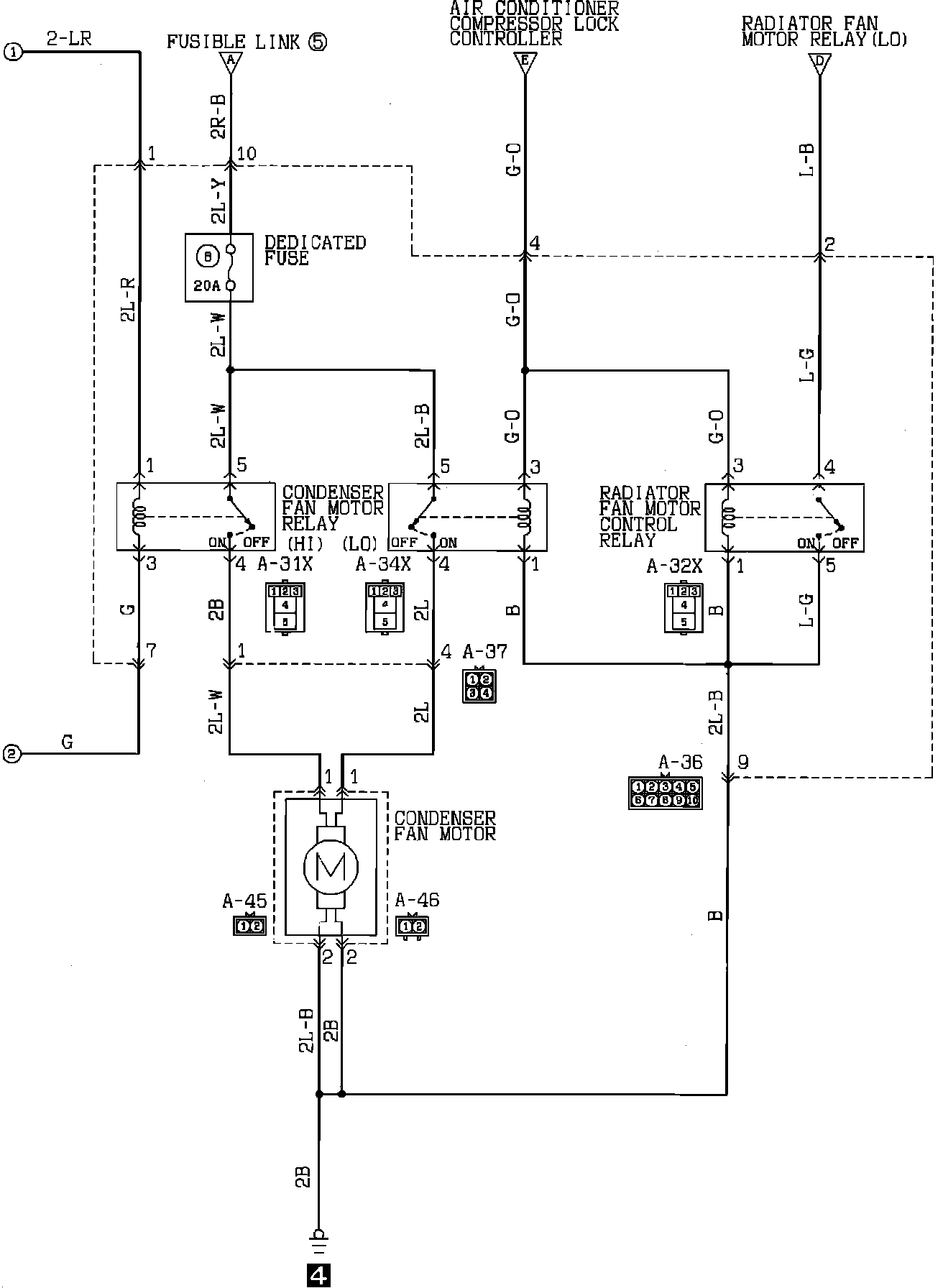

Air Conditioner (Manual):

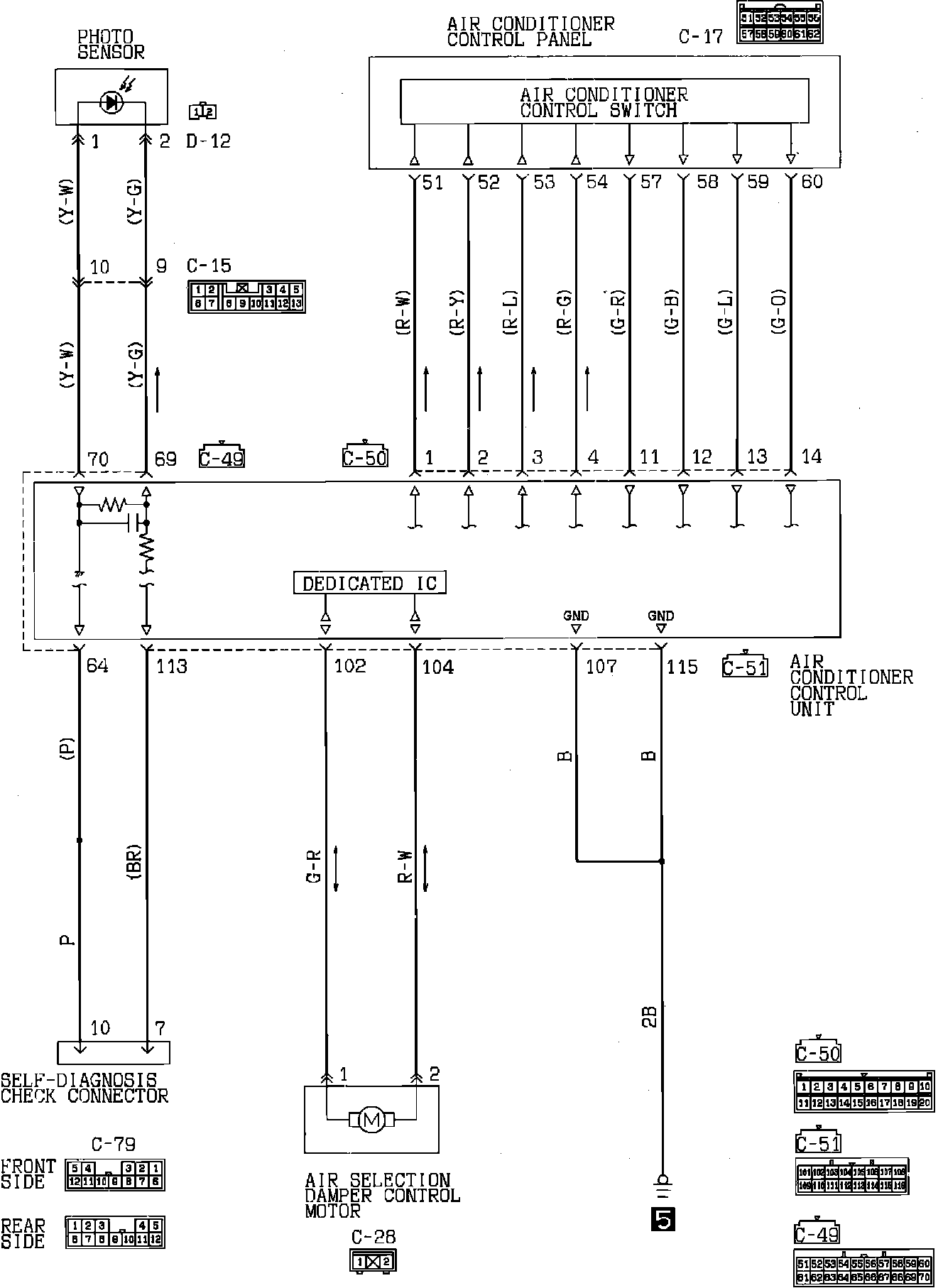

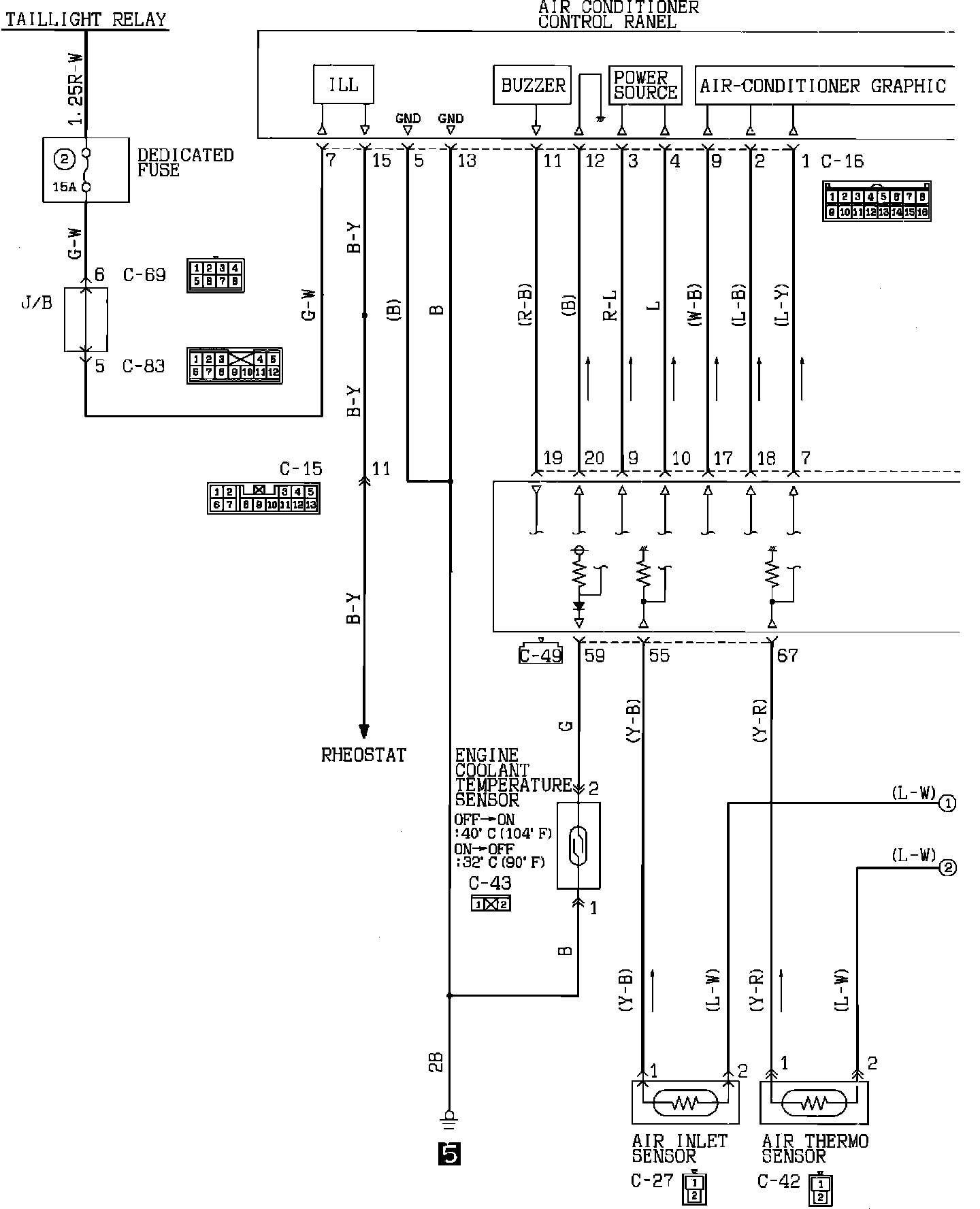

Air Conditioner (Manual):

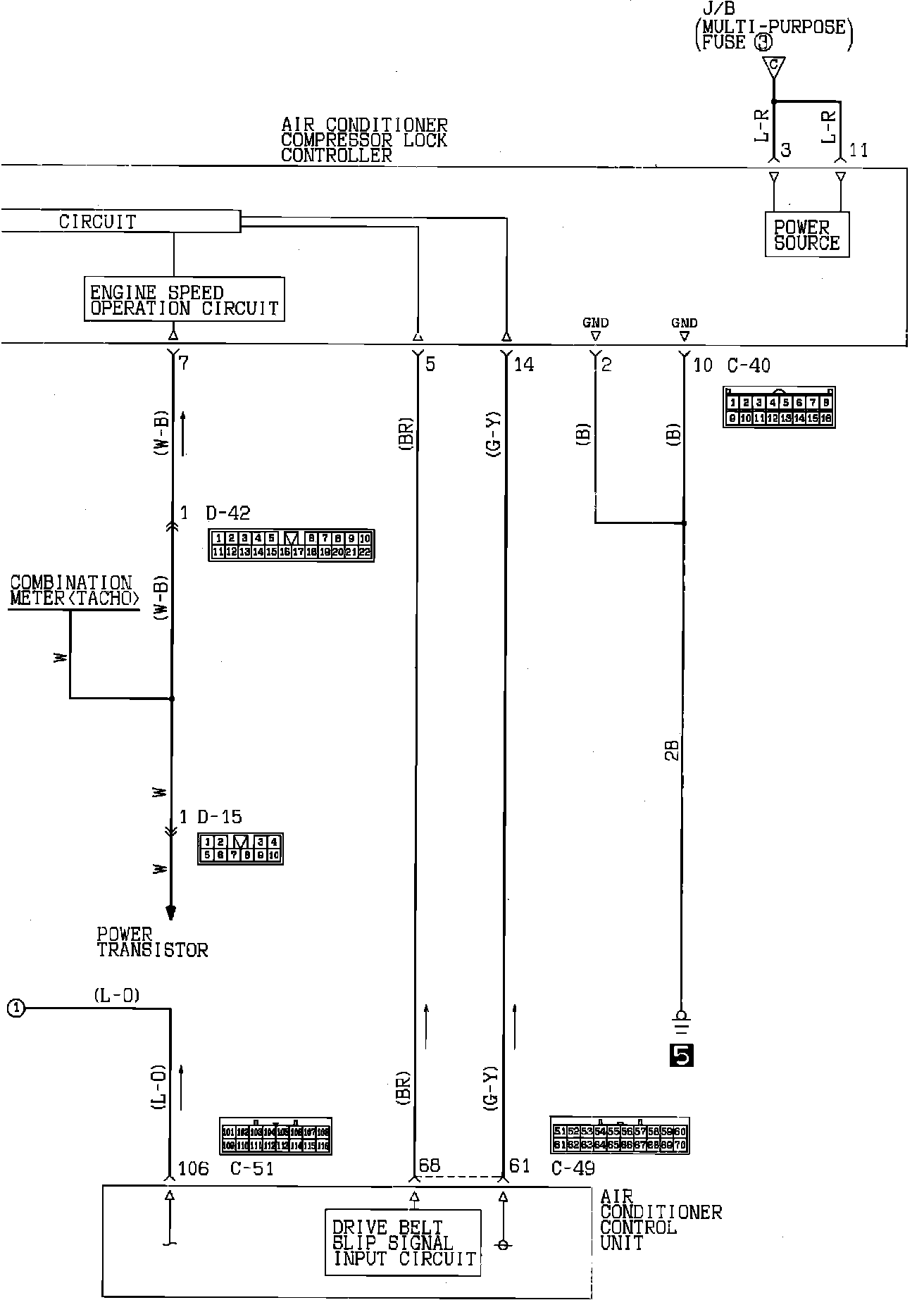

Air Conditioner (Manual):

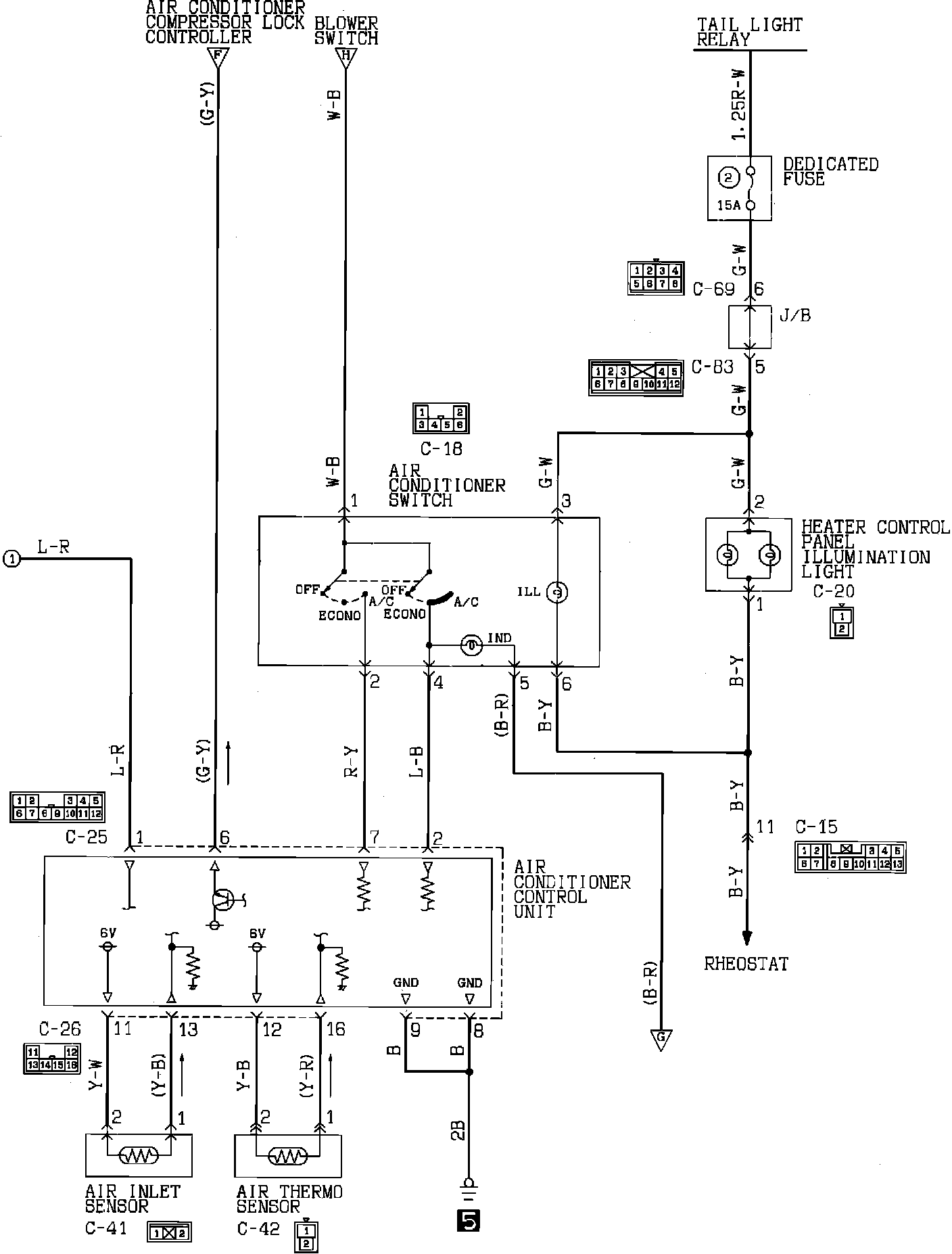

Air Conditioner (Manual):



Air Conditioner (Manual):

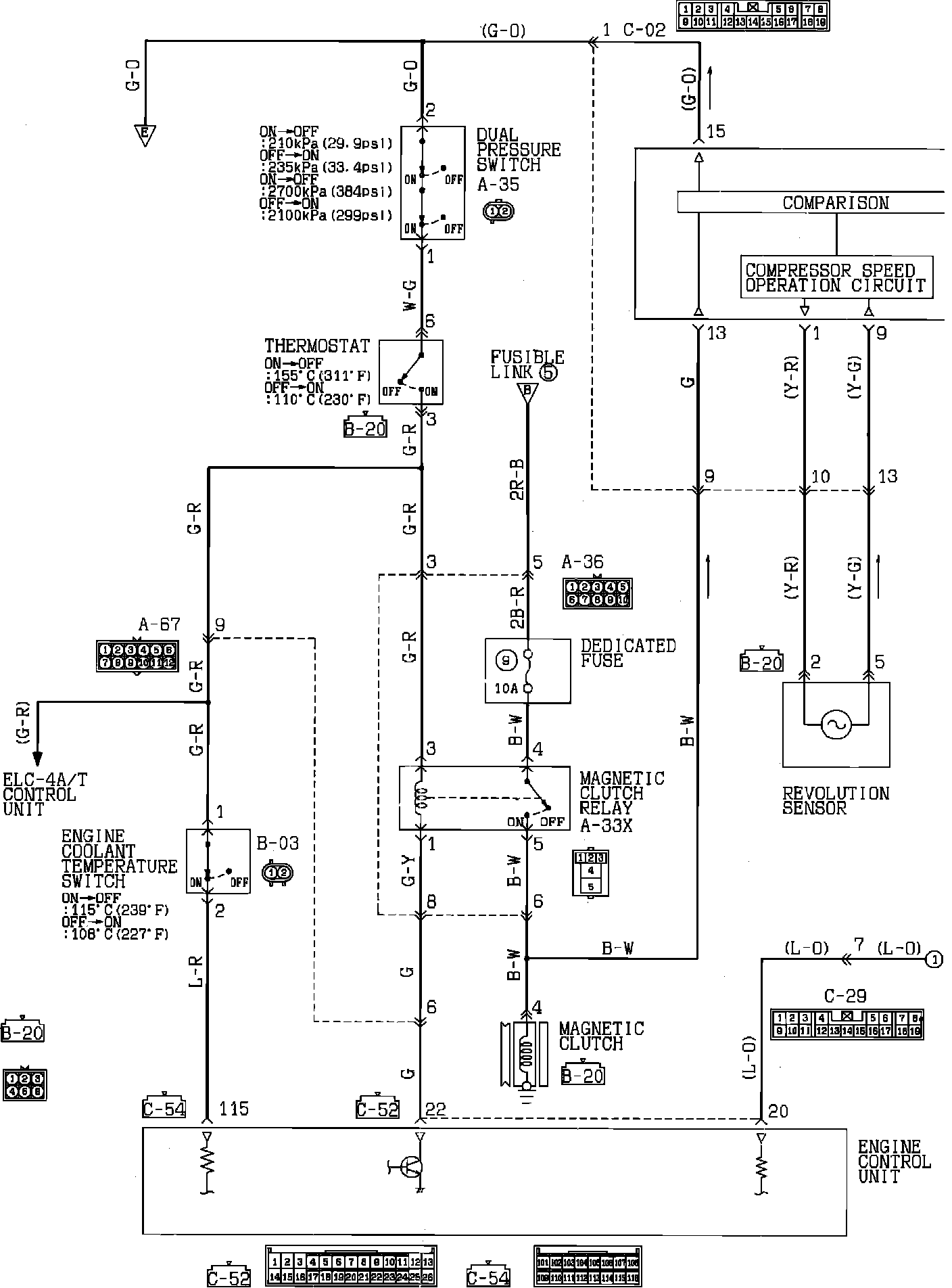

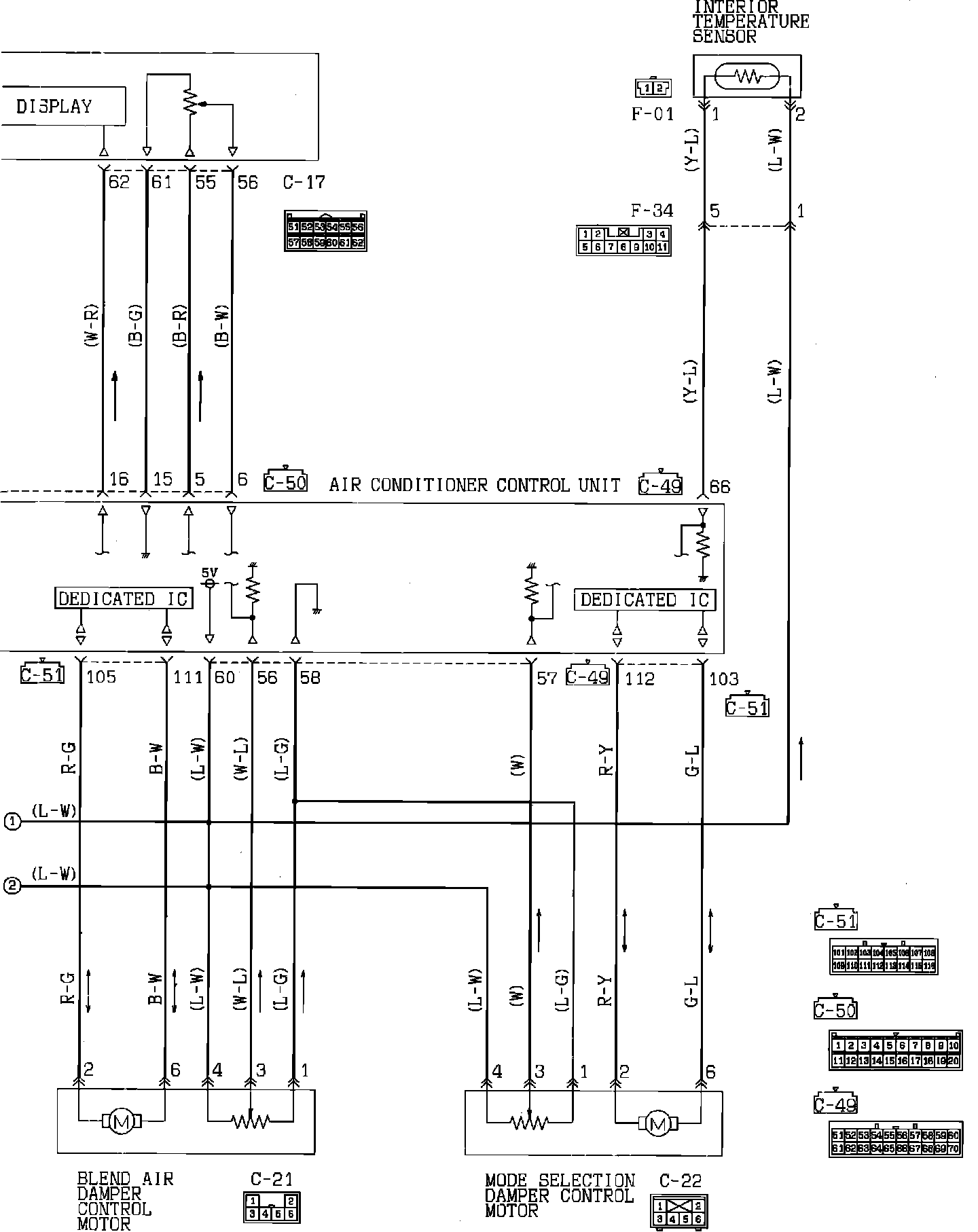

Air Conditioner (Automatic):

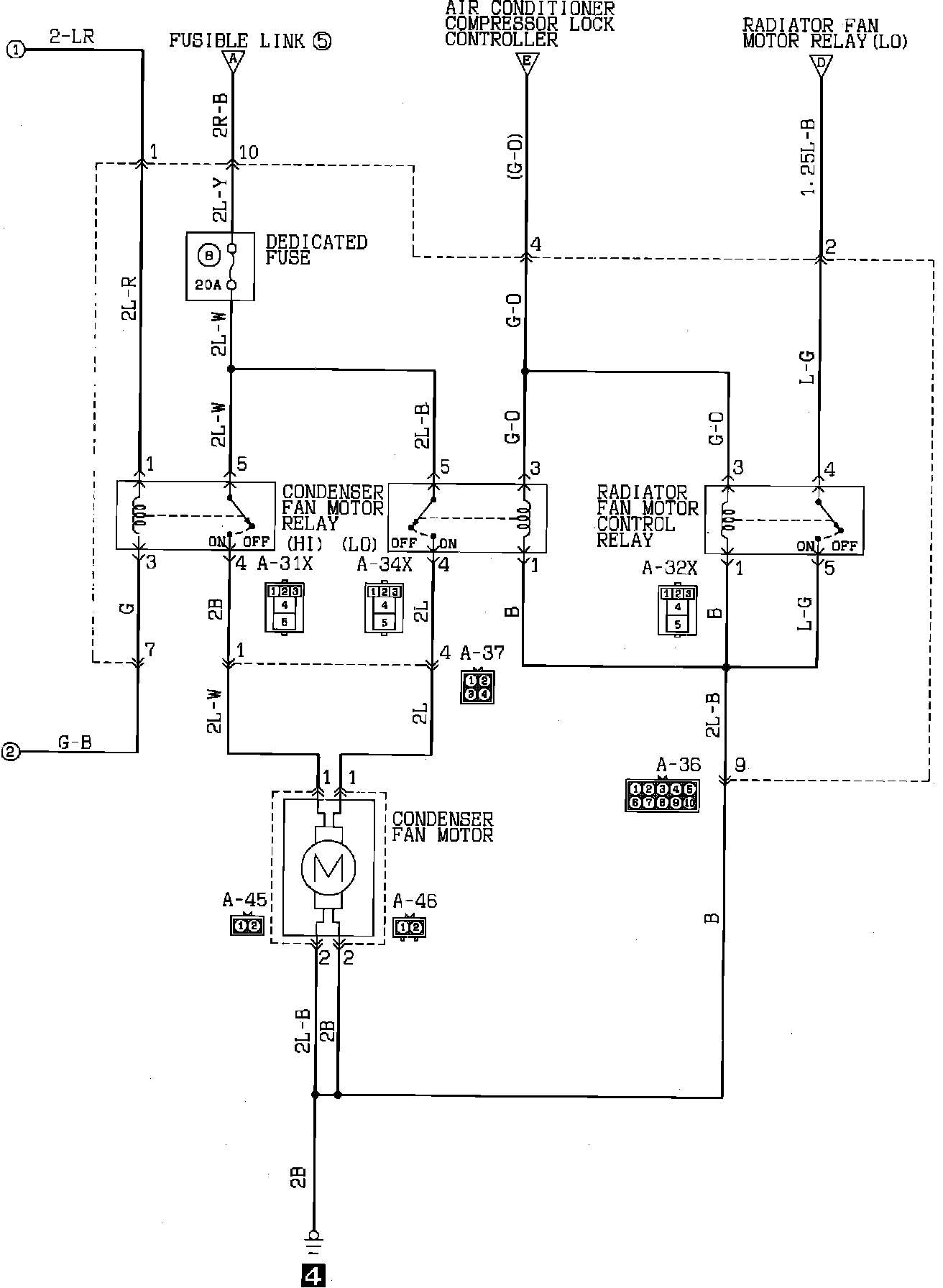

Air Conditioner (Automatic):



Air Conditioner (Automatic):



Air Conditioner (Automatic):



Air Conditioner (Automatic):



Air Conditioner (Automatic):



Air Conditioner (Automatic):



Air Conditioner (Automatic):
