Electrical Diagrams

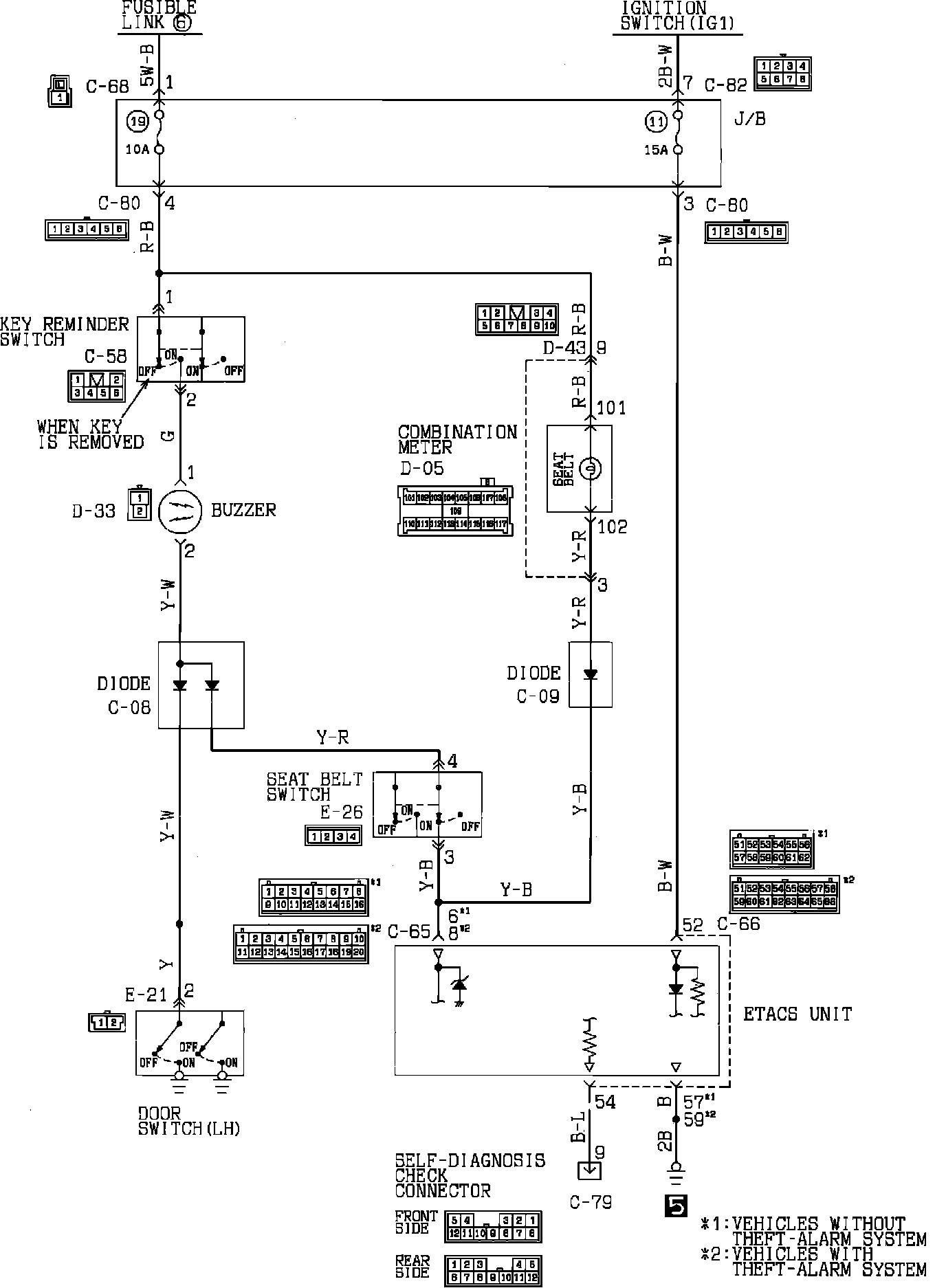

Buzzer:

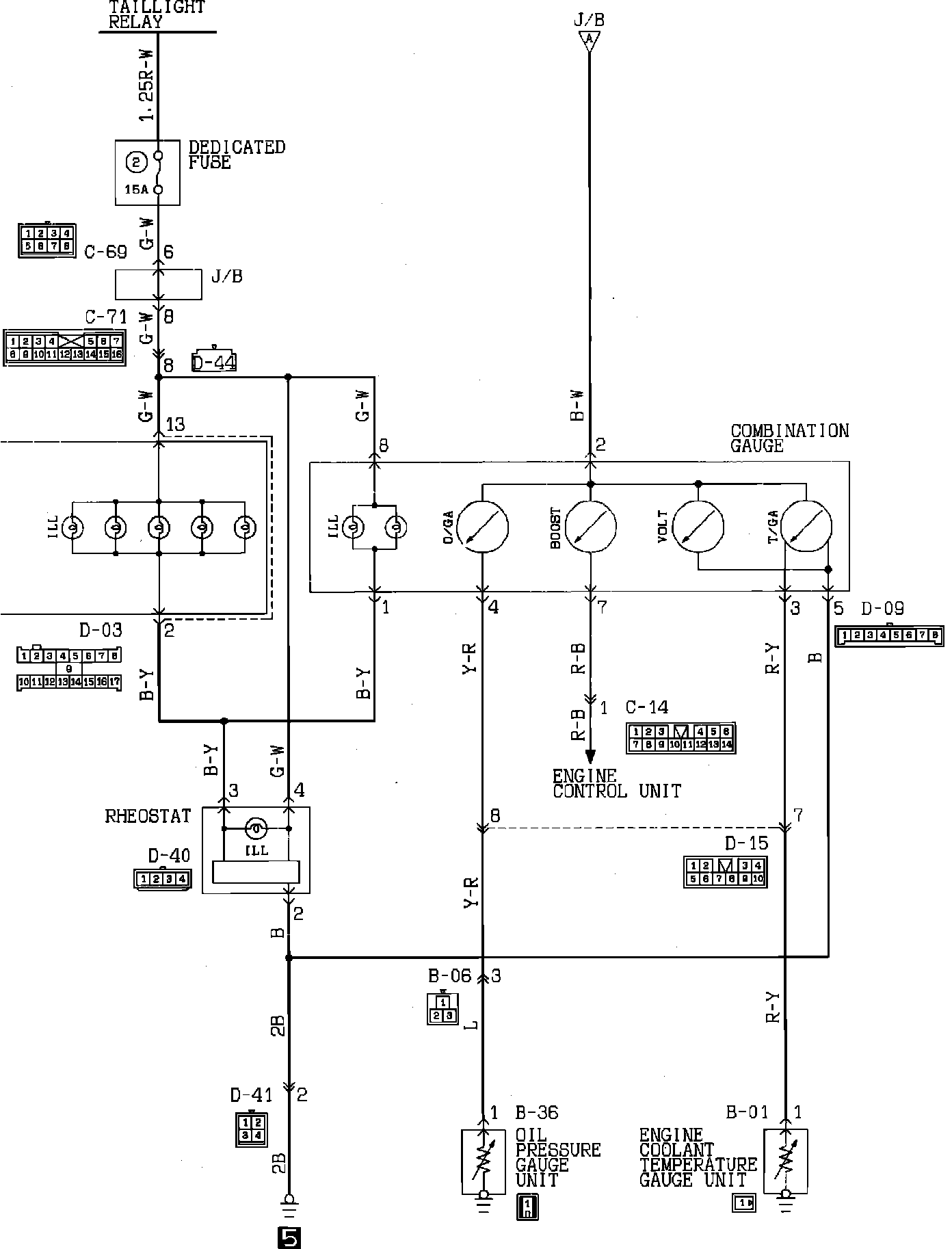

Instrument Panel (Gauges) - Part 1 Of 2:

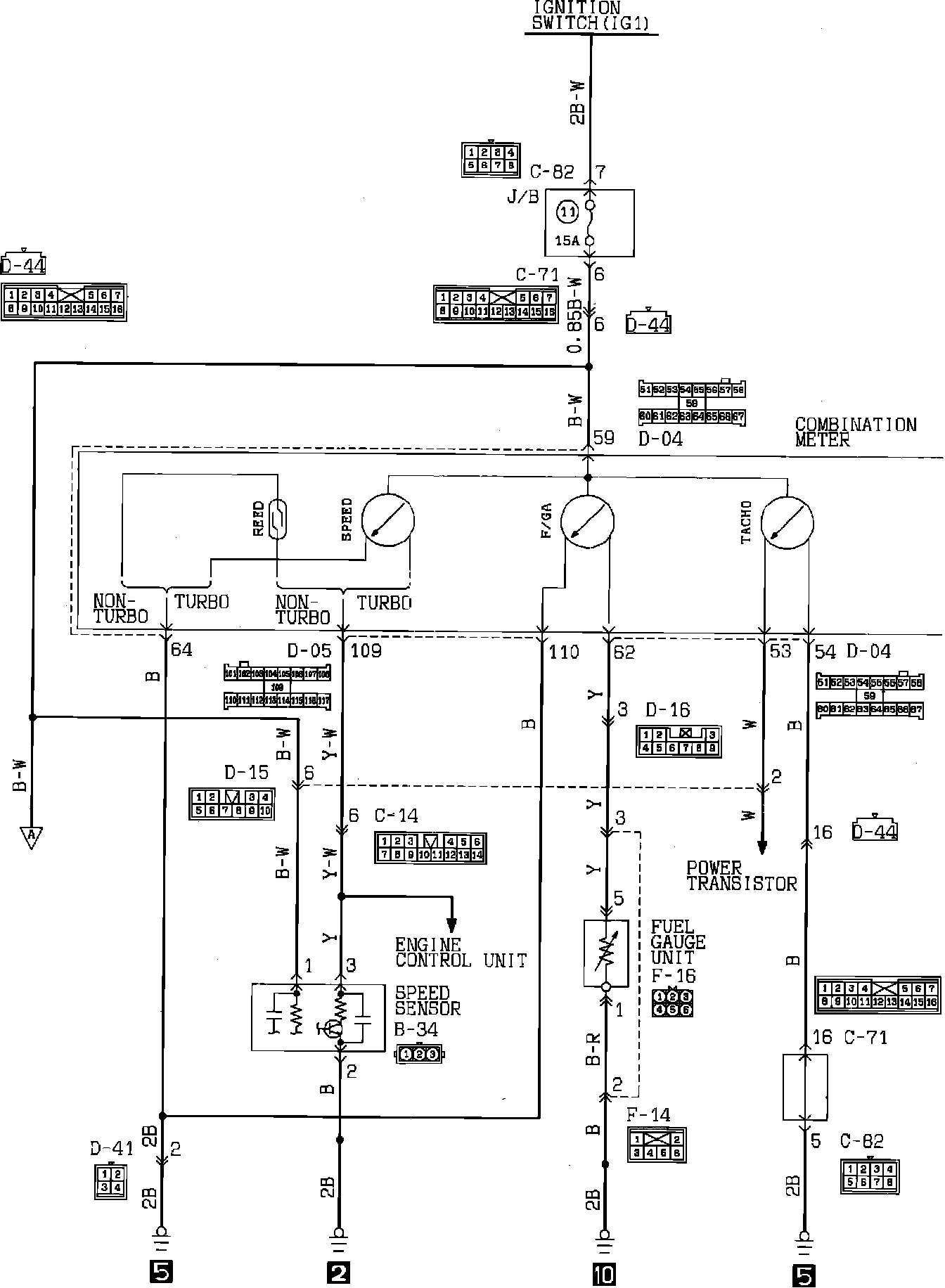

Instrument Panel (Gauges) - Part 2 Of 2:

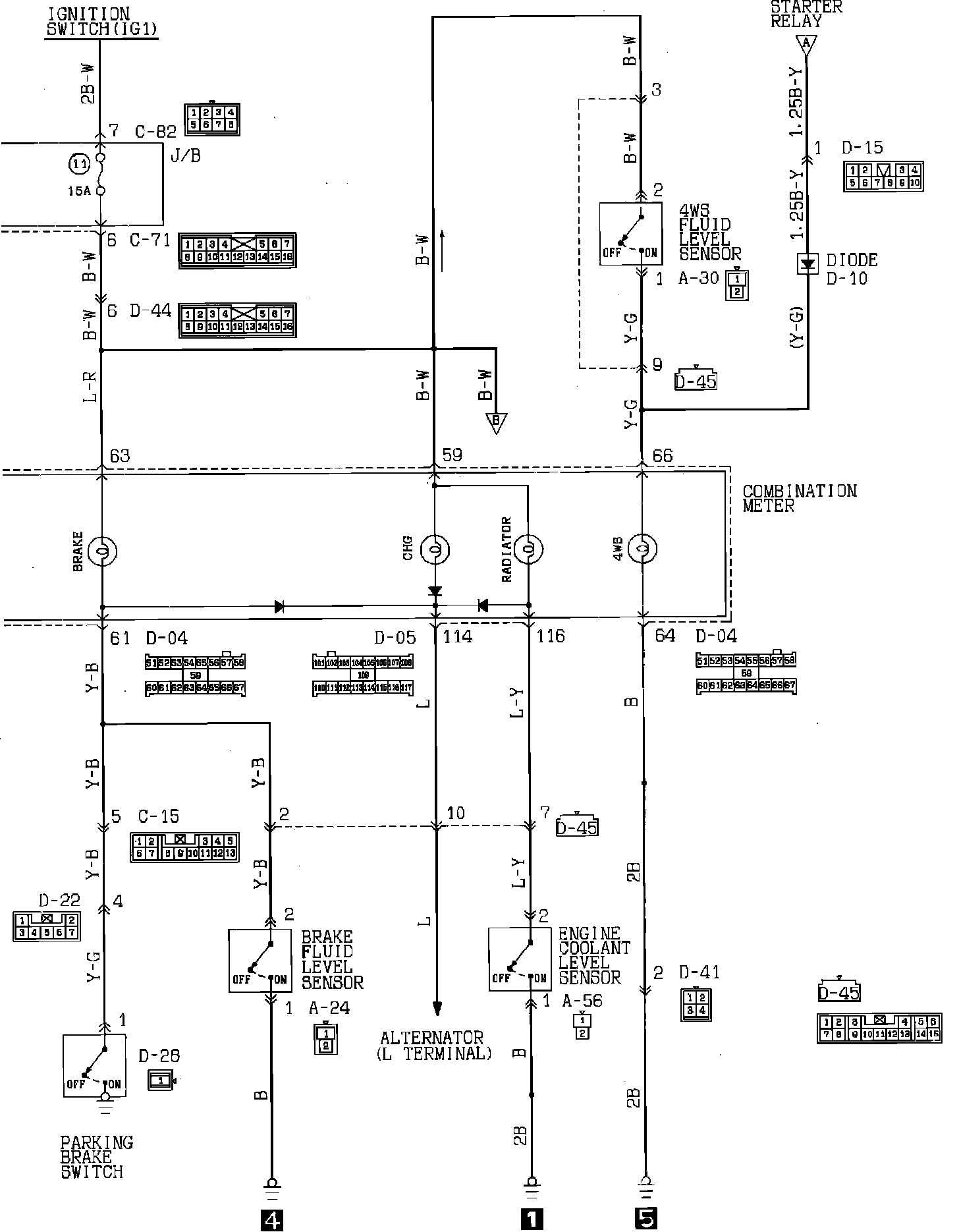

Instrument Panel And Warning Indicators - Part 1 Of 6:

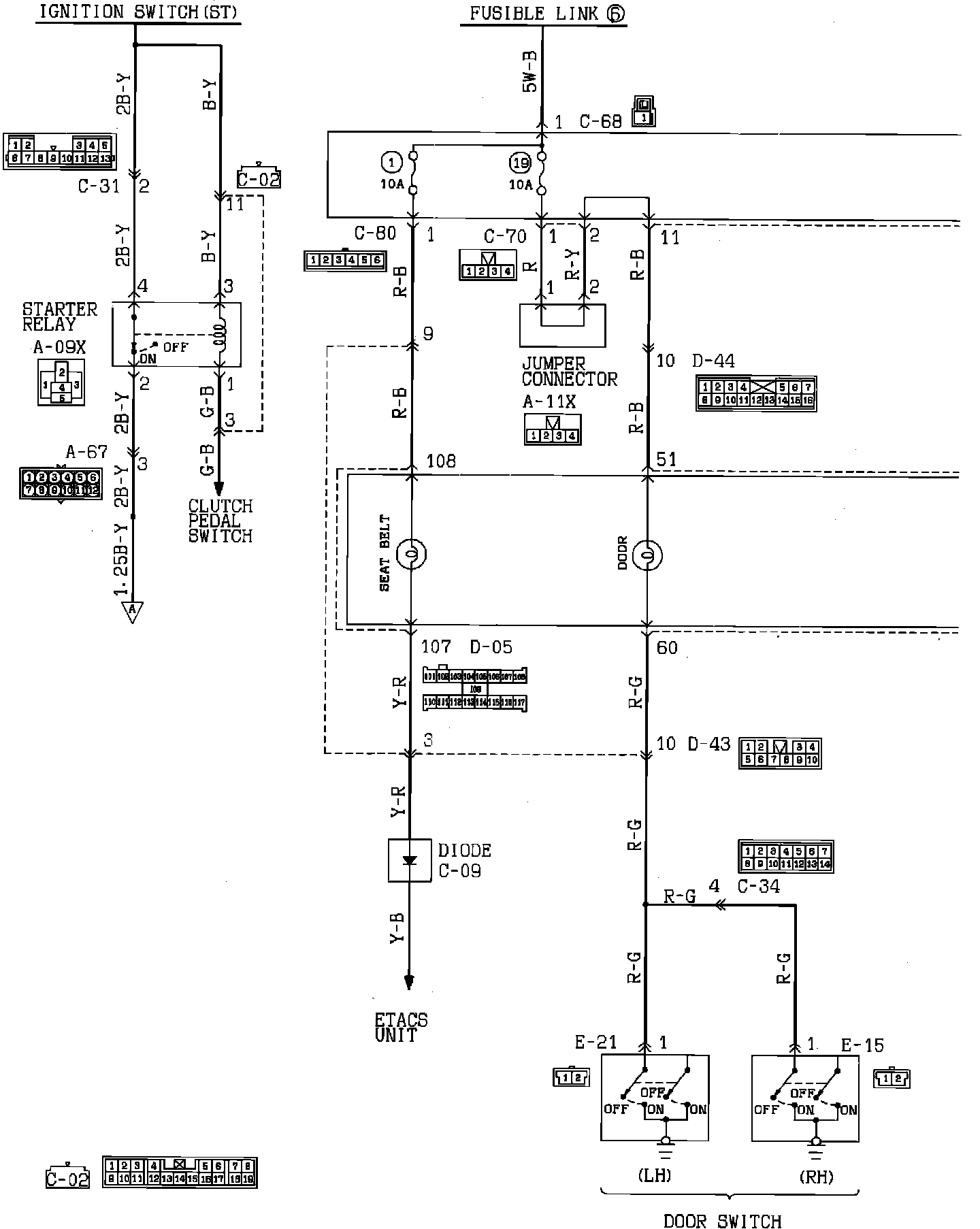

Instrument Panel And Warning Indicators - Part 2 Of 6:

Instrument Panel And Warning Indicators - Part 3 Of 6:

Instrument Panel And Warning Indicators - Part 4 Of 6:

Instrument Panel And Warning Indicators - Part 5 Of 6:

Instrument Panel And Warning Indicators - Part 6 Of 6:
