A/C - Connector Pin Number Correction

9229mitsubishi02

NO. TSB-91-55-012

DATE October, 1991

MODEL 1991 3000GT


SUBJECT:
A/C CONNECTOR - SERVICE MANUAL CORRECTION


TSB Revision TSB-91-55-012

PURPOSE

This bulletin corrects the 1991 3000GT service manual thermostat/revolution pick up connector designation and which terminals should be tested when troubleshooting the affected connectors. Please make the indicated service manual corrections and as reference to this TSB please write this TSB number in the TSB revision boxes on the affected service manual pages.

DETAILS

1. When testing the thermostat sensor, test for continuity between terminals - 3 and 6.

2. When testing the revolution pick up sensor resistance, test the resistance between the connector's middle two terminals - 2 and 5.

SERVICE MANUAL CORRECTIONS





1991 3000GT, volume 1, Page 55-30

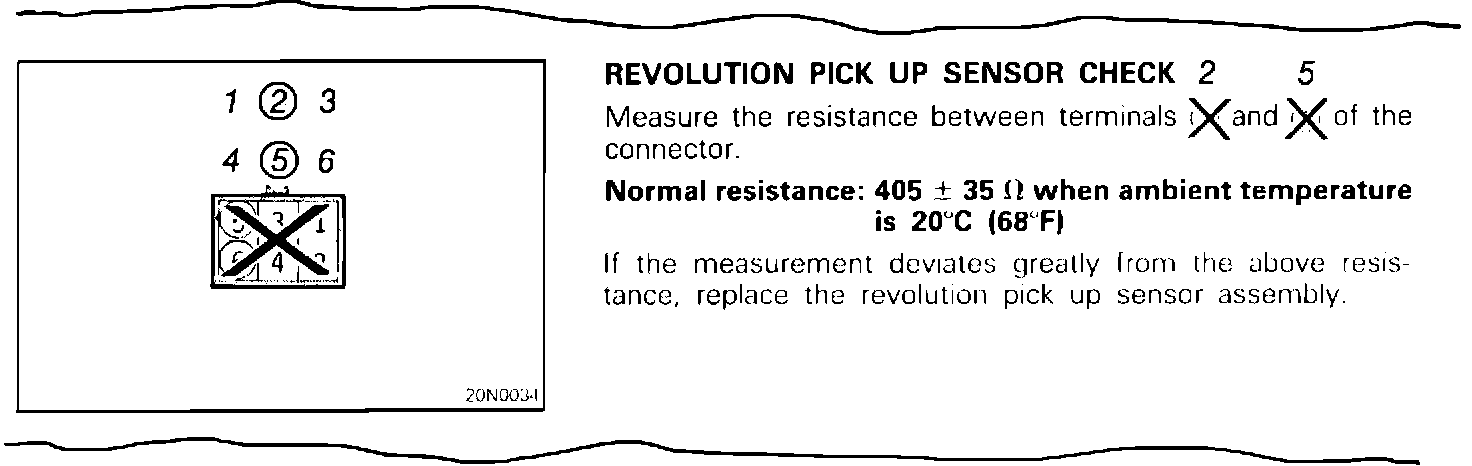

As shown, cross out the connector numbers and write in the new connector numbers.





1991 3000GT, volume 1, page 55-31

As shown, cross out the connector number and write in the new connector numbers.
