A/T - Removal of Differential Bearing Retainer Updated

91mitsubishi04

NO. TSB-91-23-009

DATE February, 1991

MODEL 1991 3000GT, Eclipse, and Galant


SUBJECT: REMOVAL OF DIFFERENTIAL BEARING

RETAINER - SERVICE MANUAL REVISION


TSB Revision TSB-91-23-009

PURPOSE

A revised procedure has been established for removing the A/T differential bearing retainer. Please write this TSB revision number in the TSB revision box located at the bottom of the affected Service Manual pages.

AFFECTED SERVICE MANUALS

1991 300OGT, Volume 1, Page 23-69.
Integrated 1989/90/91 Galant, Volume 3, Page 23-60.
1991 Eclipse, Volume 1, Page 23-139.

Figure 1. Differential Bearing Retainer:

DESCRIPTION

To provide easier removal of the A/T differential bearing retainer, two threaded bolt holes have been added (Figure 1).

Figure 2.:

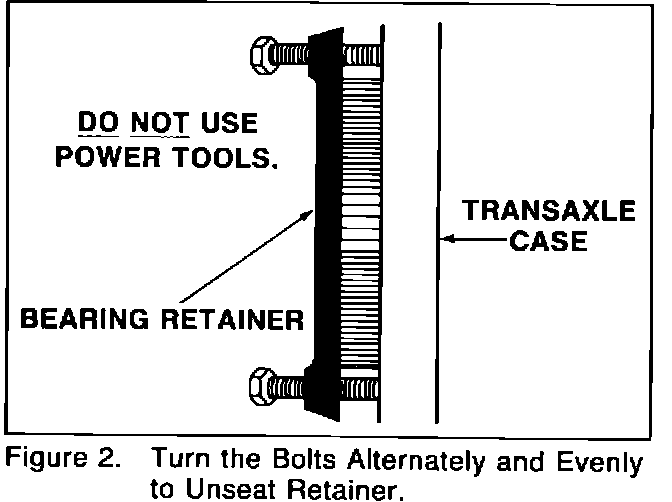

The retainer is removed by inserting a M8 x 30 bolt into each hole, turning them alternately and evenly until the retainer is unseated (Figure 2).

When performing this procedure, the following precautions must be observed:

Figure 3. M8x30 Bolts:

- To prevent retainer thread damage, use bolts that are threaded from head to tip (Figure 3).

- Make sure the bolts have squared, smooth tips (Figure 3).

- Do not use power tools. Use hand tools only.

- To prevent damage to transaxle case, tighten both bolts alternately and evenly.

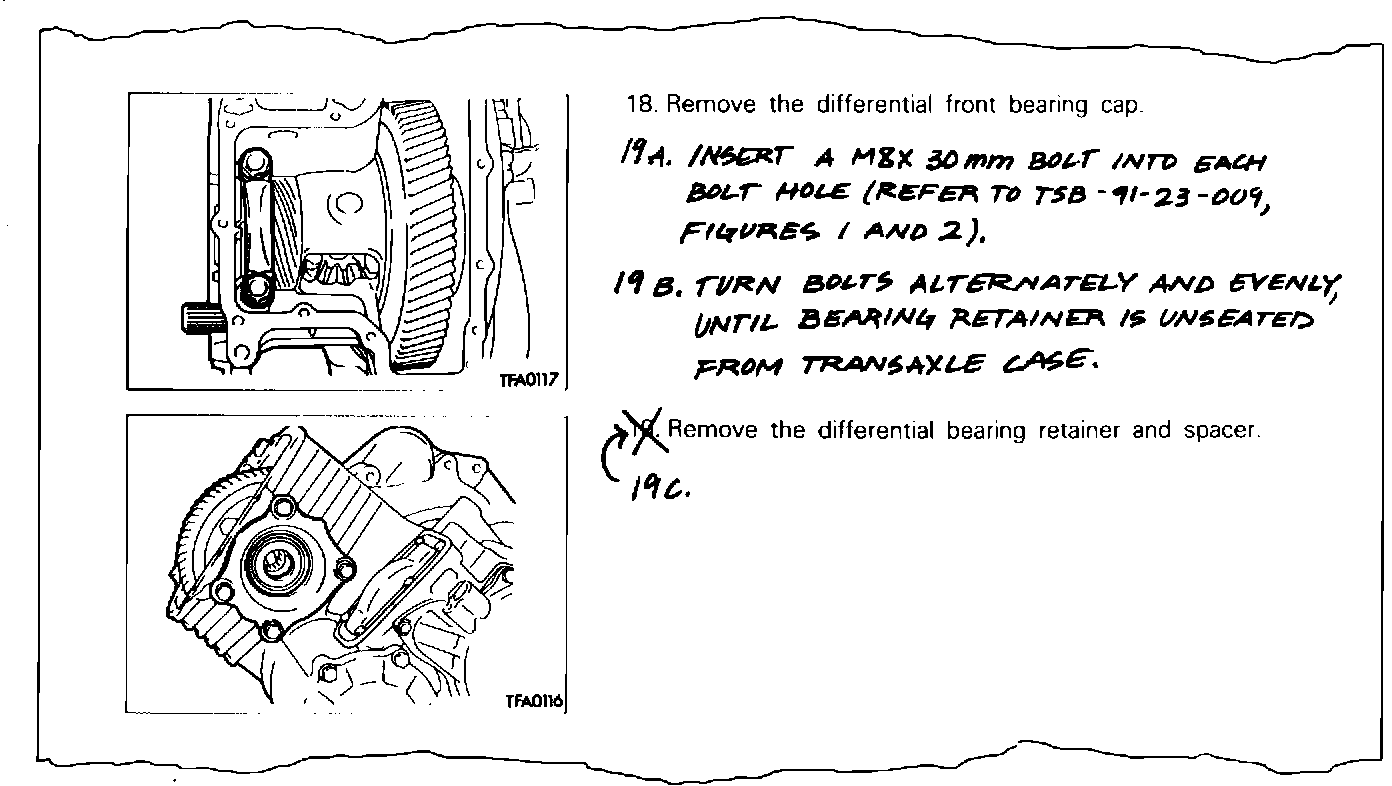

Revise the Service Manual pages as indicated.
