Body - Active Aero Circuit Diagram Correction

NO.: TSB-92-54-001
DATE: January, 1992
MODEL: 1991 3000GT

[TSB Revision TSB-92-54-001]

SUBJECT:
ACTIVE AERO CIRCUIT DIAGRAM - SERVICE MANUAL CORRECTION

PURPOSE

This Technical Service Bulletin corrects information in the Active Aero Circuit Diagram of the 1991 3OOOGT Service Manual.

As a reference to this bulletin, write the TSB revision number in the TSB revision boxes located at the bottom of the affected service manual pages.

AFFECTED SERVICE MANUALS

1991 3OOOGT, Volume 2, Pages 142 and 143.

DESCRIPTION

In the Active Aero Circuit Diagram on page 142, one wire is incorrectly numbered. On page 143, one wiring harness connector has been omitted. Correct these errors as shown in the examples.





1991 3OOOGT Service Manual, Volume 2, Page 142: Change the wire labeled number 7 to number 9.

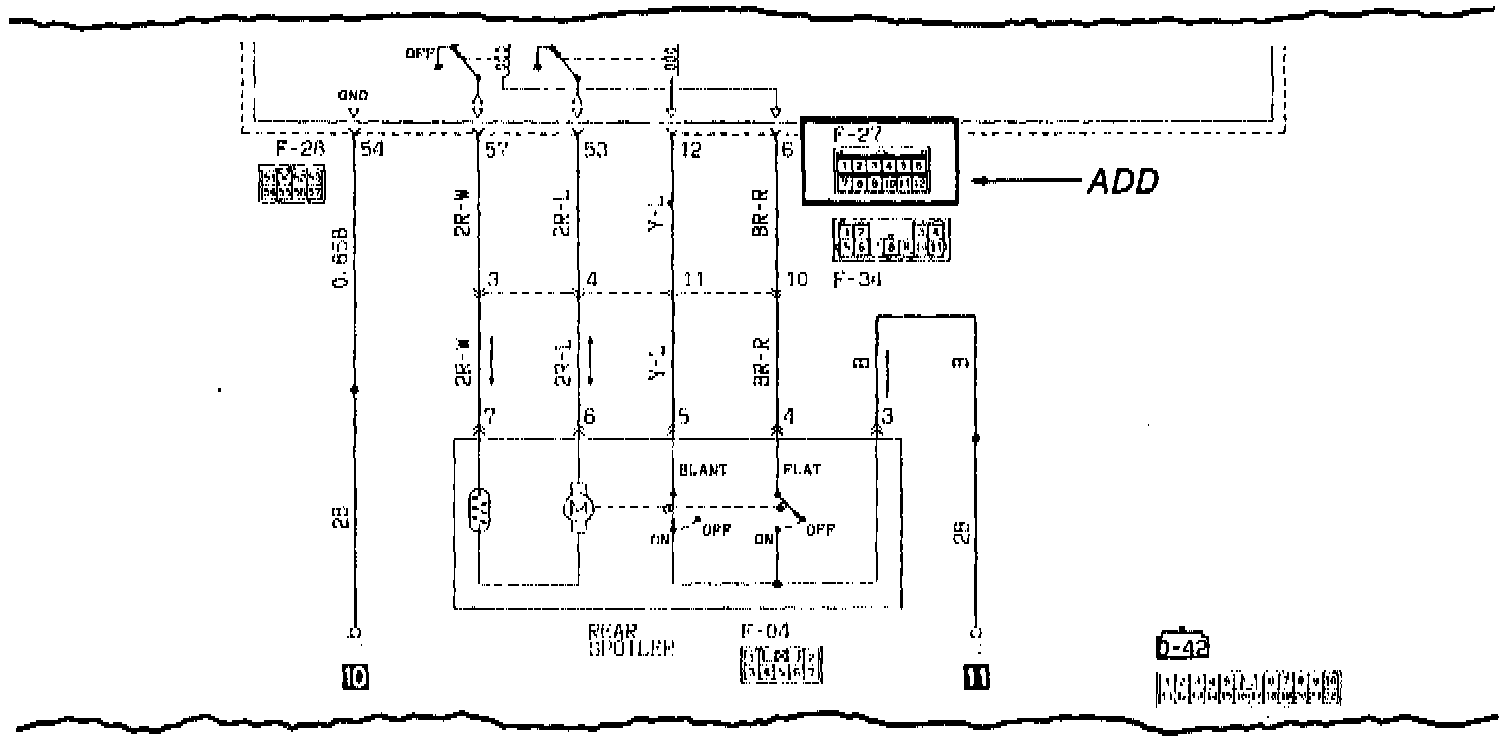

1991 3OOOGT Service Manual, Volume 2, Page 143: Add the "F-27" wiring harness connector.
