Cooling System - New Design Thermostat Installation

91mitsubishi04

NO. TSB-91-14-001

DATE February, 1991

MODEL 3000GT


SUBJECT: THERMOSTAT INSTALLATION



PURPOSE

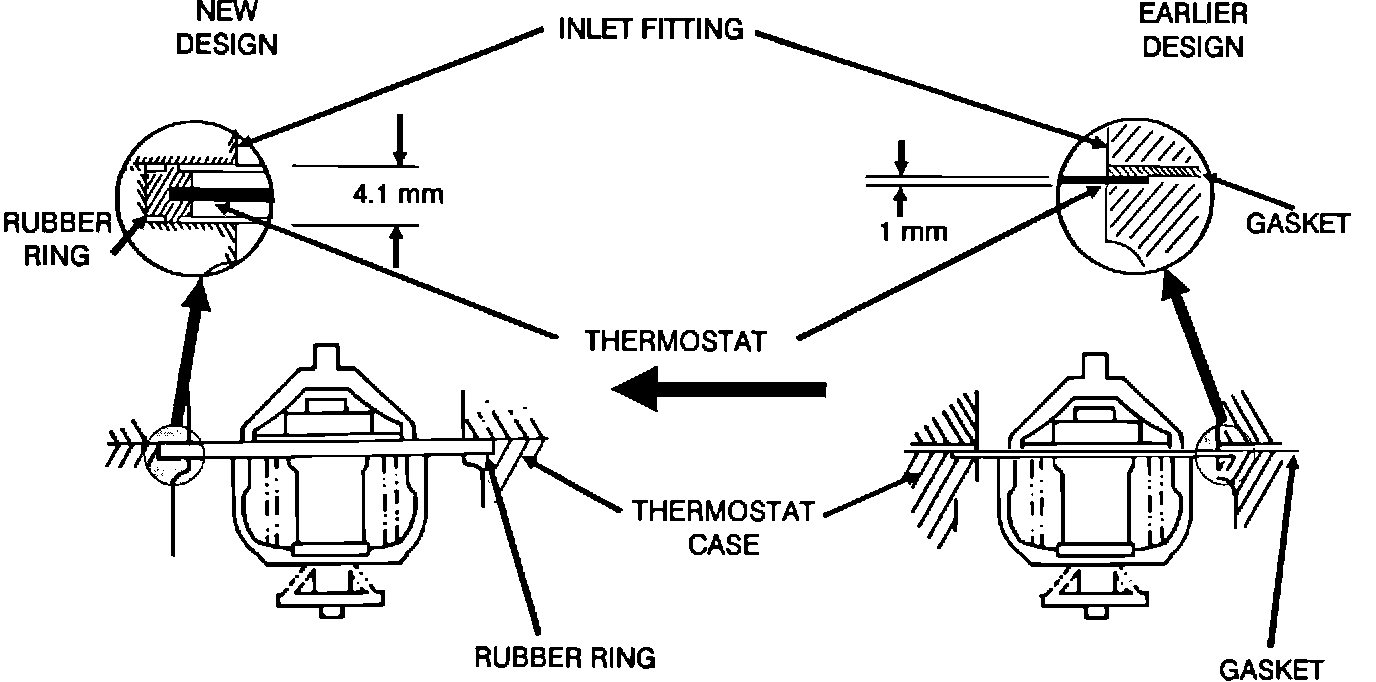

1991 3000GT models built after October 2, 1990 incorporate a new cooling system thermostat design. The new design thermostat incorporates a rubber ring around the mounting flange. This rubber ring replaces the conventional thermostat gasket. The thermostat case has been machined with a 4.1 mm recess which allows clearance for the rubber ring and provides the correct sealing surface.

CAUTION: Do not use a gasket with thermostats equipped with a rubber ring.

When replacing the thermostat it is important to determine the type of thermostat (with ring vs. without ring) before installation. Use of the wrong thermostat may cause damage to the case, thermostat, or engine.





PARTS INFORMATION

Thermostats, cases and gaskets are not interchangeable.


PARTS INFORMATION continued


PART NAME NEW DESIGN EARLIER DESIGN
PART NUMBER PART NUMBER

THERMOSTAT MD174234 MD997679

GASKET NOT REQUIRED MD146834

CASE, NON-TURBO MD174229 MD146830

CASE, TURBO MD174231 MD160379
