Drivetrain - Axle Shaft Nut Torque Manual Correction

91mitsubishi05

NO. TSB-91-27-001

DATE February, 1991

MODEL 1991 3000GT AWD


SUBJECT: AXLE SHAFT NUT TORQUE -
SERVICE MANUAL CORRECTION


TSB Revision TSB 91-27-001

PURPOSE

This bulletin corrects the tightening torque values for the 3000GT rear axle shaft nut. This nut secures the companion flange to the rear axle of AWD models.

As reference to this bulletin, please write the TSB number in the revision boxes on the affected pages, cross out the incorrect torques as illustrated on pages 2, 3, and 4 of this bulletin, and write in the correct torque value.


SERVICE MANUAL AFFECTED

1991 3000GT SERVICE MANUAL, VOL. 1

Pages 27-15, 34-30, 36-9

DESCRIPTION

The correct torque for tightening the rear axle nut is 260-300 N-m (188-217 ft.lb). Any other torque value for this nut shown in the service manual is incorrect.

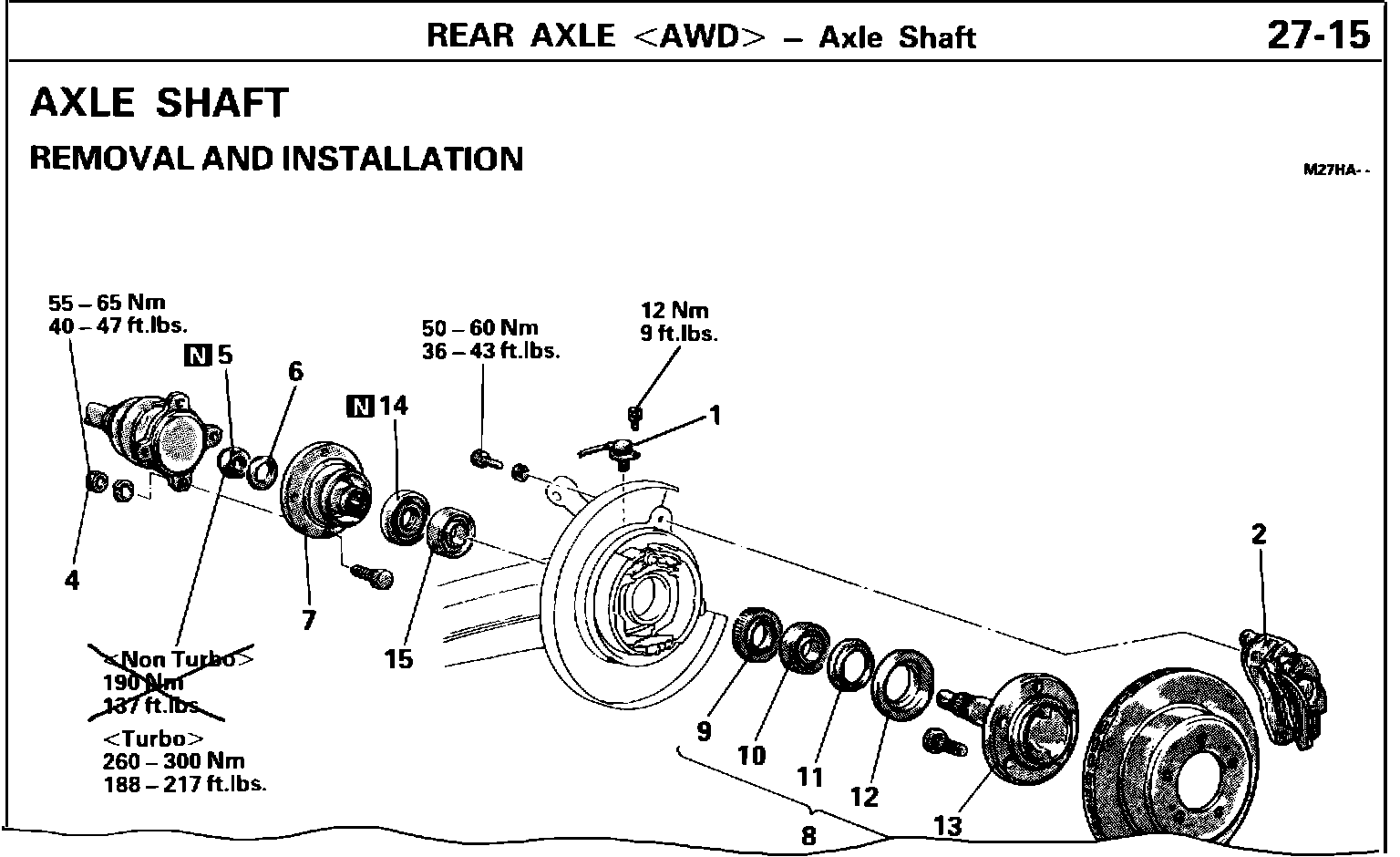

1991 3000 GT SERVICE MANUAL, PAGE 27-15

Cross out the incorrect torque value and leave the correct one.

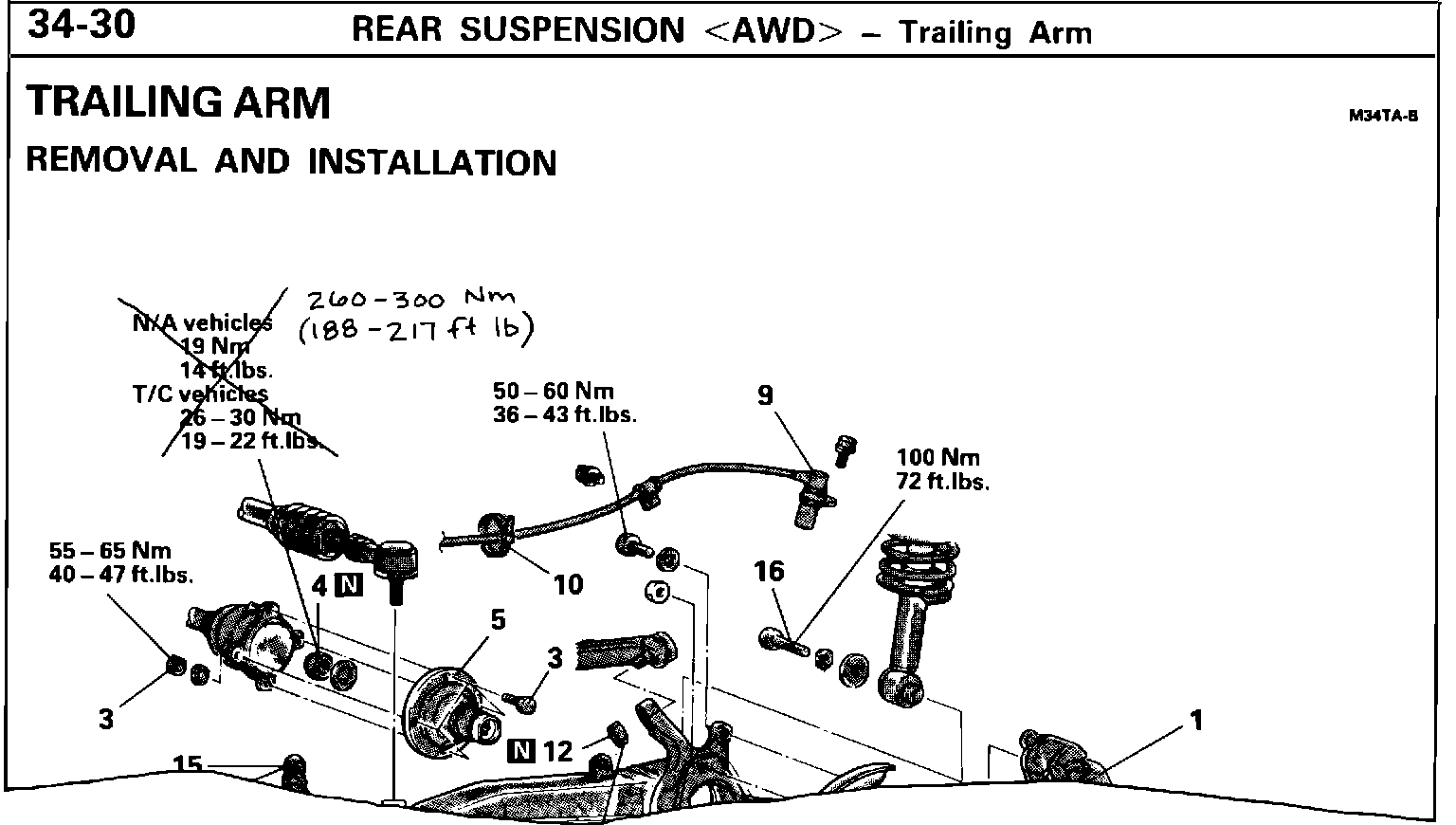

1991 3000GT SERVICE MANUAL, PAGE 34-30

Cross out both incorrect torque values, and write in the correct torque value.

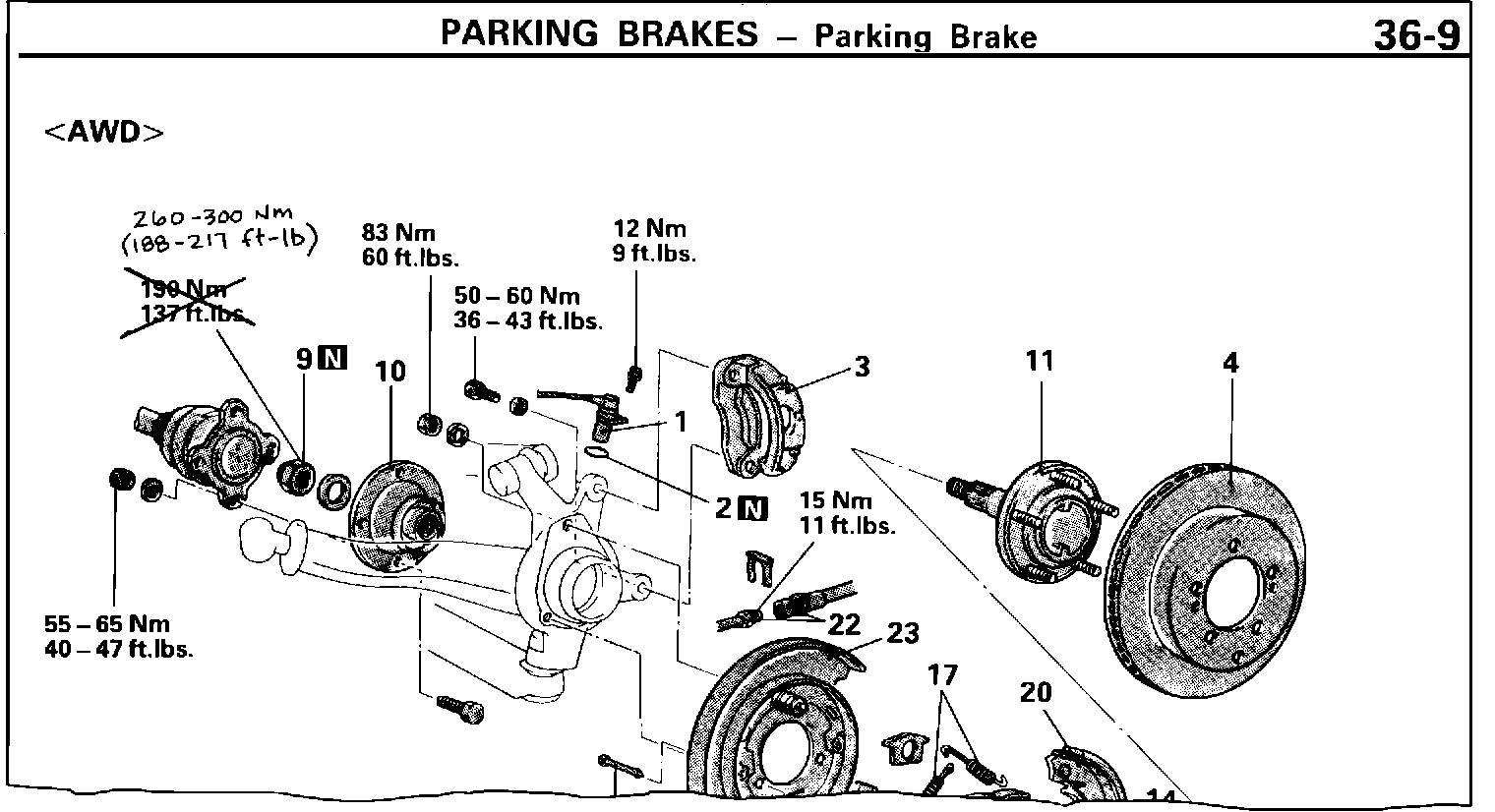

1991 3000GT SERVICE MANUAL, PAGE 36-9

Cross out the incorrect torque values and write in the correct values.
