Engine - Lower Timing Belt Cover Caution
NO.: TSB-93-11-001DATE: February, 1993
MODEL: 1991-92 3000GT
SUBJECT:
LOWER TIMING BELT COVER
BOLT LENGTH AND LOCATION -
SERVICE MANUAL REVISION
TSB Revision: TSB-93-11-001
PURPOSE
On 1991-92 3000GTS, two different length bolts are used to attach the engine's lower timing belt cover. It is important to insert the correct length bolts in their proper locations on the cover. This bulletin assists you by revising the lower timing belt cover bolt lengths and locations shown in the service manual.
For reference, write the TSB revision number of this bulletin in the TSB revision box located near the bottom of each affected service manual page.
SERVICE MANUALS AFFECTED
1991 3000GT, Volume 1, Page 11-30
1992-93 3000GT, Volume 1, Page 11-34
DESCRIPTION
Revise the service manuals to include the corrected timing belt cover bolt lengths and locations shown in the two examples.

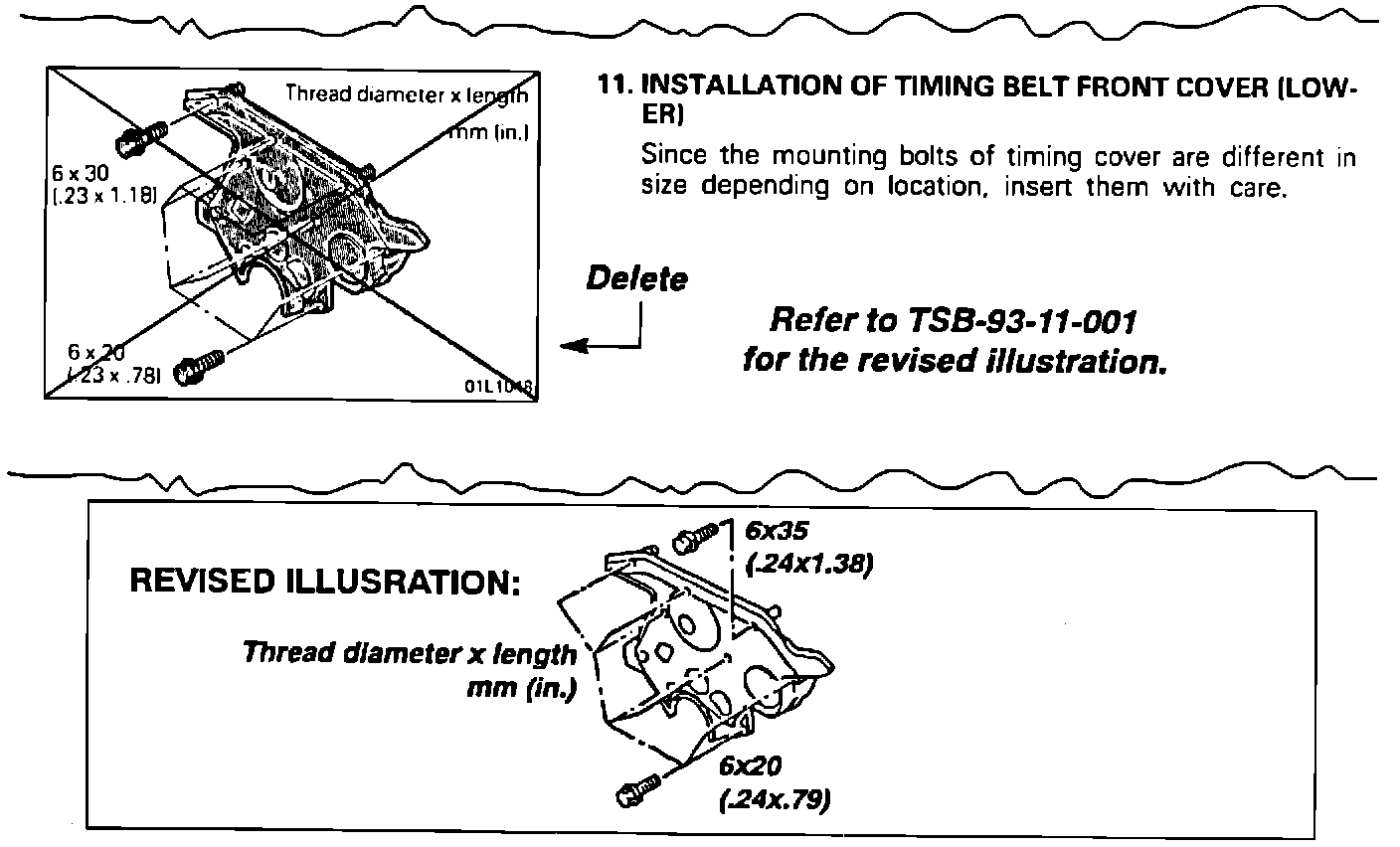

1. 1991 3000GT, Volume 1, Page 11-30:
Delete the present illustration and refer the reader to this bulletin (TSB-93-11-001) for the revised illustration.
2. 1992-93 3000GT, Volume 1, Page 11-34:
Revise the bolt length.
