NO. TSB-91-42B-001

DATE March, 1991

MODEL 1991 3000GT


SUBJECT:
DOOR LOCKING SYSTEM -

SERVICE MANUAL UPDATE


TSB Revision TSB 91-42B-001

PURPOSE

This Technical Service Bulletin (TSB) provides updated information for three of the door locking system circuit diagrams. As a reference to this TSB, write the revision number in the TSB Revision box located near the bottom of each affected Service Manual page.

AFFECTED SERVICE MANUALS

1991 3000GT, Volume 1, Pages 42-57, 42-58, and 42-59.





DESCRIPTION

Update each affected Service Manual page as shown in the following examples:

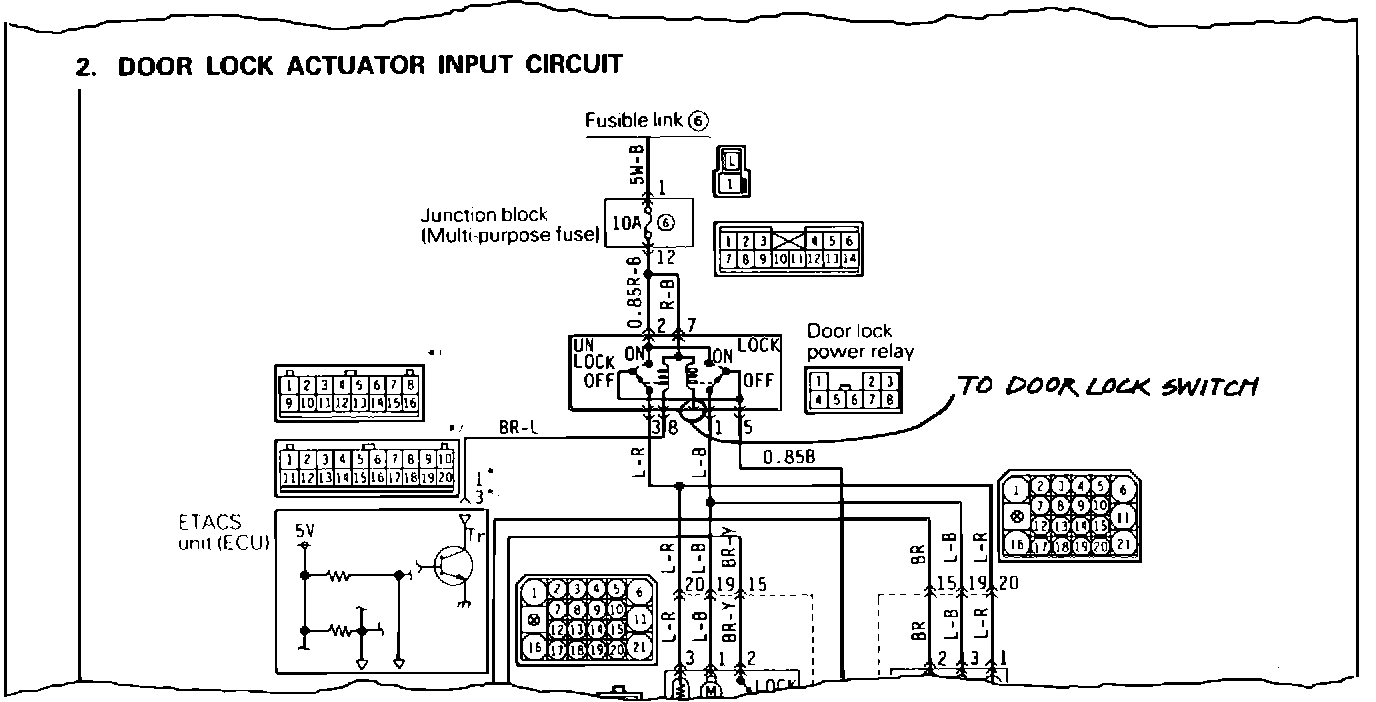

1991 3000GT, Volume 1, Page 42-57

Add note as shown.

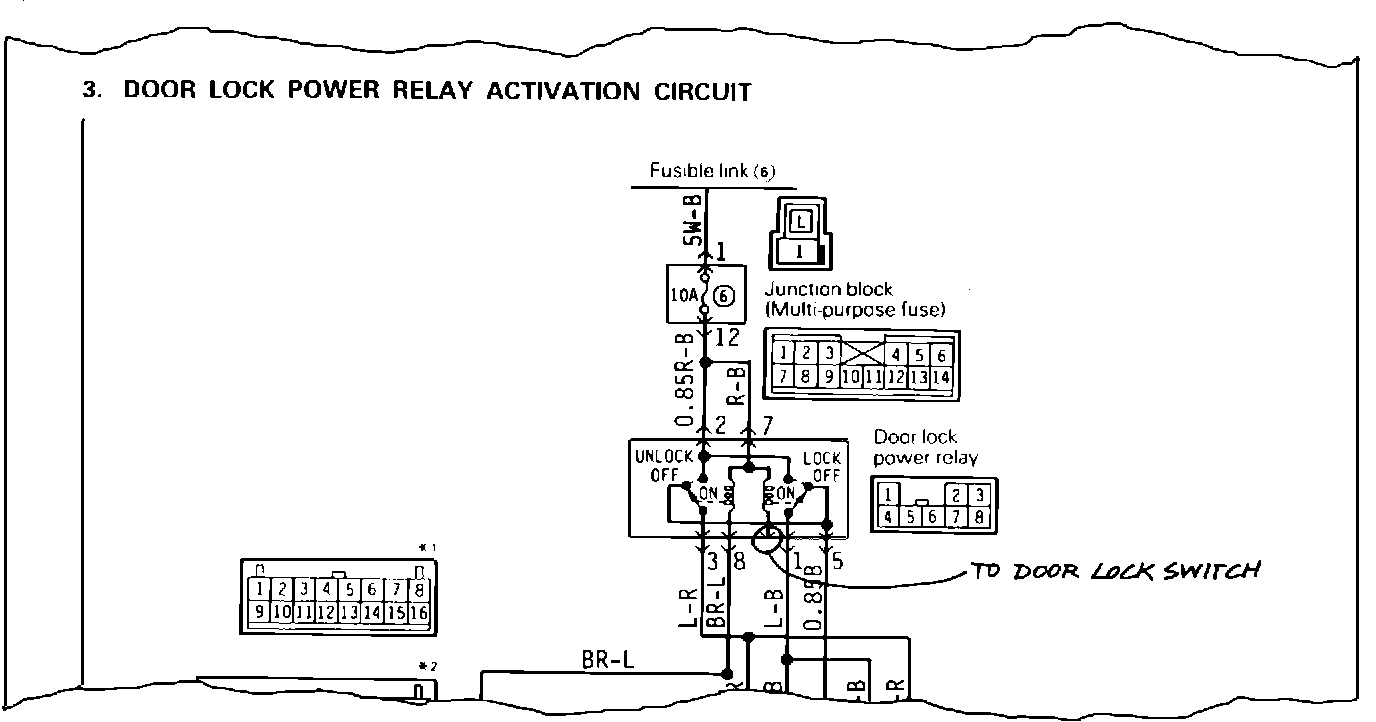

1991 3000GT, Volume 1, Page 42-58

Add note as shown.

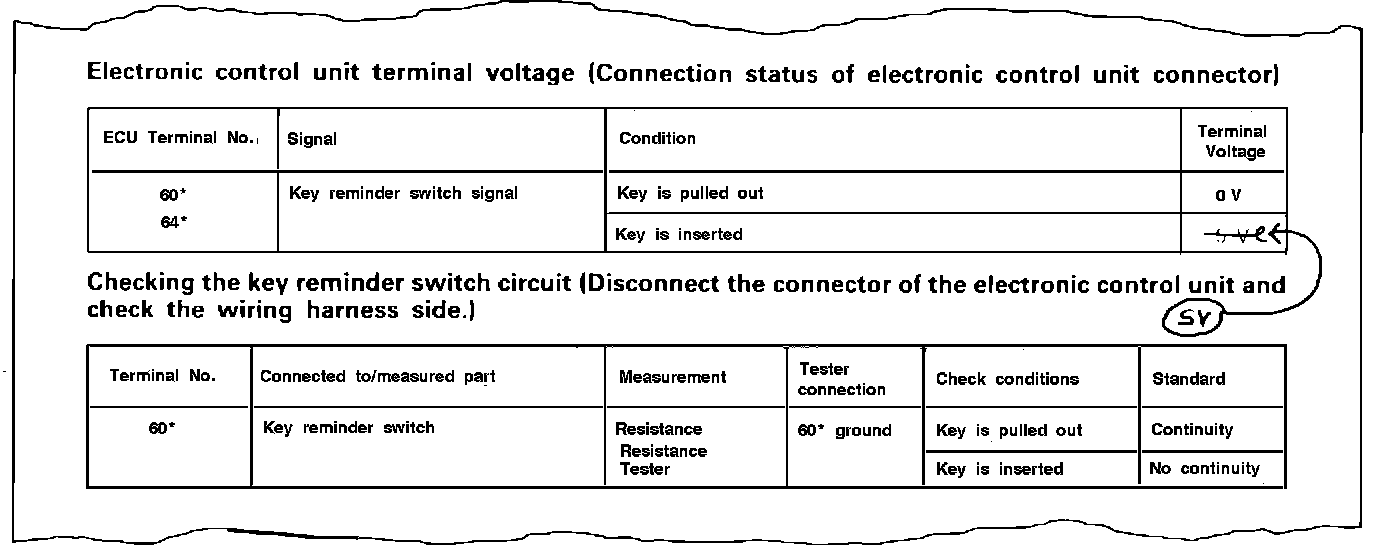

1991 3000GT, Volume 1, Page 42-59

Correct the terminal voltage as shown.
