Multiple Systems - Repair Manual Corrections
NO.: TSB-91-00-012DATE: September, 1991
MODEL: 1991 3000GT
SUBJECT:
3000GT SERVICE MANUAL CHANGES
[TSB Revision TSB-97-00-012]
PURPOSE
This Technical Service Bulletin updates information contained in the 1991 3000GT Service Manual, Volume 1. As a reference to this bulletin, write the TSB number in the revision boxes on the affected pages listed in the next paragraph.
AFFECTED SERVICE MANUALS
1991 3000GT, Volume 1, Pages 13-146, 15-27, 55-3, 55-12, and 55-61.
DESCRIPTION
Please make the service manual changes shown in this bulletin.
Page 13-146 Fuel System - Fuel Tank
As shown in the following example, change the installation direction of two hose clamps.

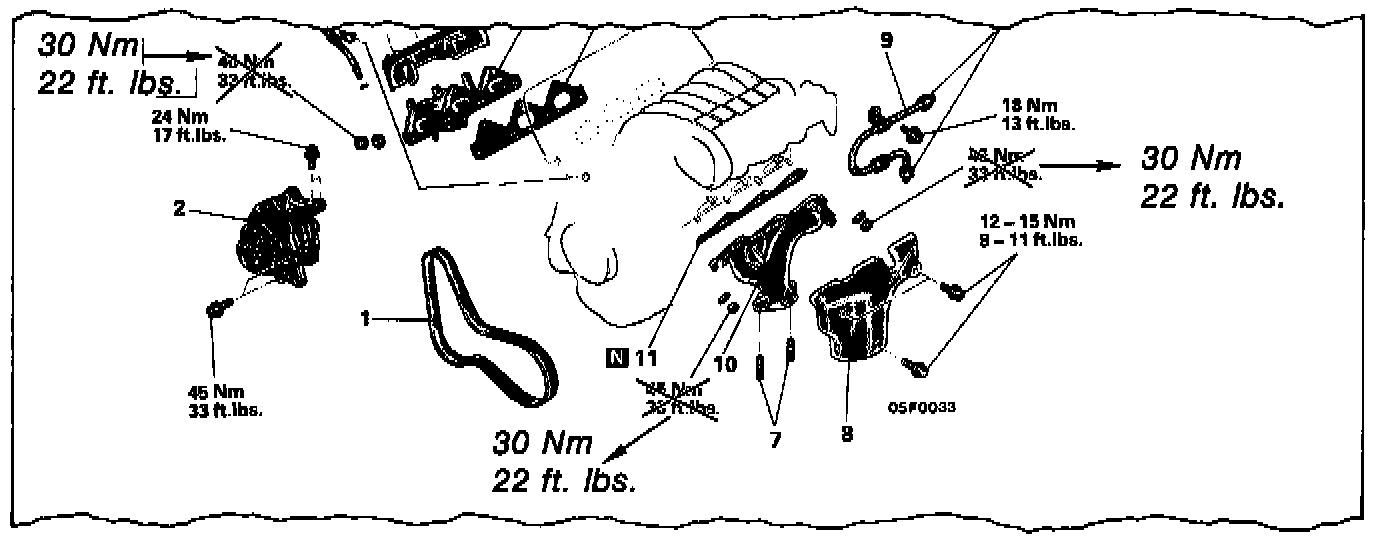

Page 15-27 Intake and Exhaust - Exhaust Manifold
As shown in the example, change the tightening torque in three locations.

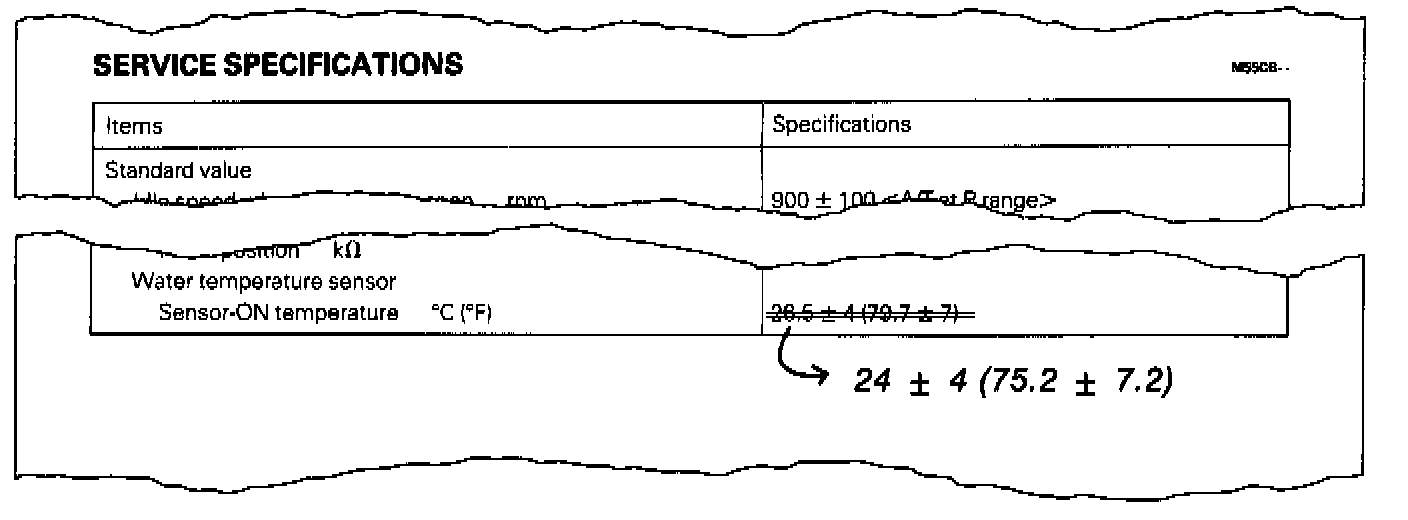

Page 55-3 Heater, Air Conditioner and Ventilation - Service Specifications
As shown in the example, change the "Sensor ON" temperature of the water temperature sensor.
Page 55-12, Heaters and Manual Air Conditioner - Service Adjustment Procedures
As shown in the example, change the vacuum specification for A/C evacuation.

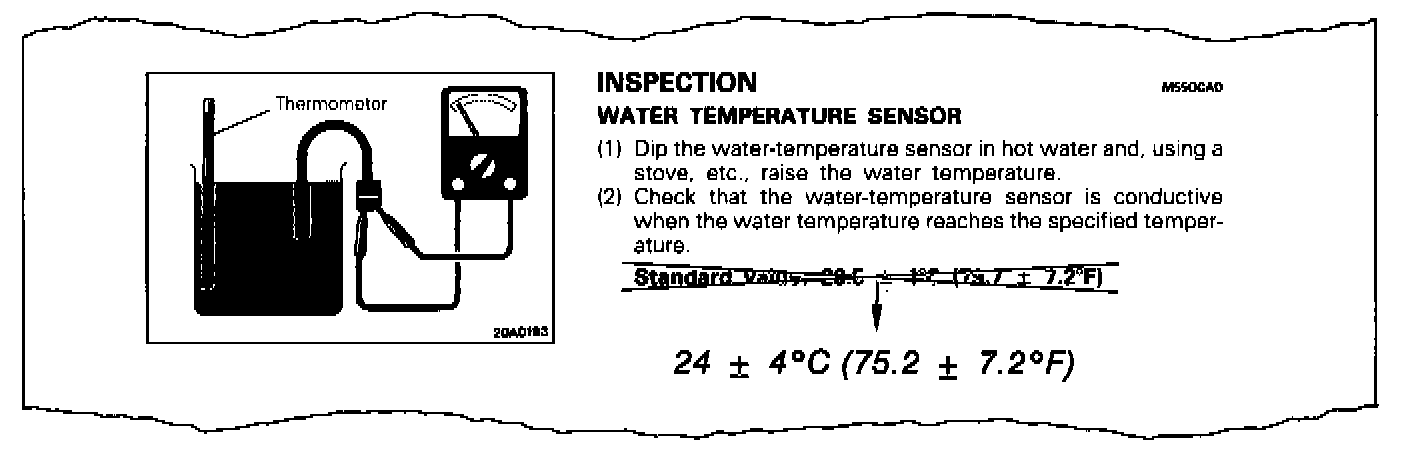

Page 55-61 Full Auto Air Conditioner - Sensors
As shown in the example, change the standard value at which the water temperature sensor becomes conductive.
