Sunroof - Repair Supplement, Manual Update
NO.: TSB-93-42B-002DATE: June, 1993
MODEL: 1992-93 300OGT
SUBJECT:
SUNROOF REPAIR SUPPLEMENT - BODY REPAIR MANUAL REVISION
[TSB Revision TSB-93-42]
PURPOSE
This bulletin provides supplemental body repair information for 1992-93 300OGTs equipped with the factory-installed sunroof.
For reference, write the TSB revision number of this bulletin in the TSB revision box located near the bottom of each affected body repair manual page.
AFFECTED BODY REPAIR MANUAL
1991 300OGT, Pages 3-61, 3-78, and 6-109
DESCRIPTION

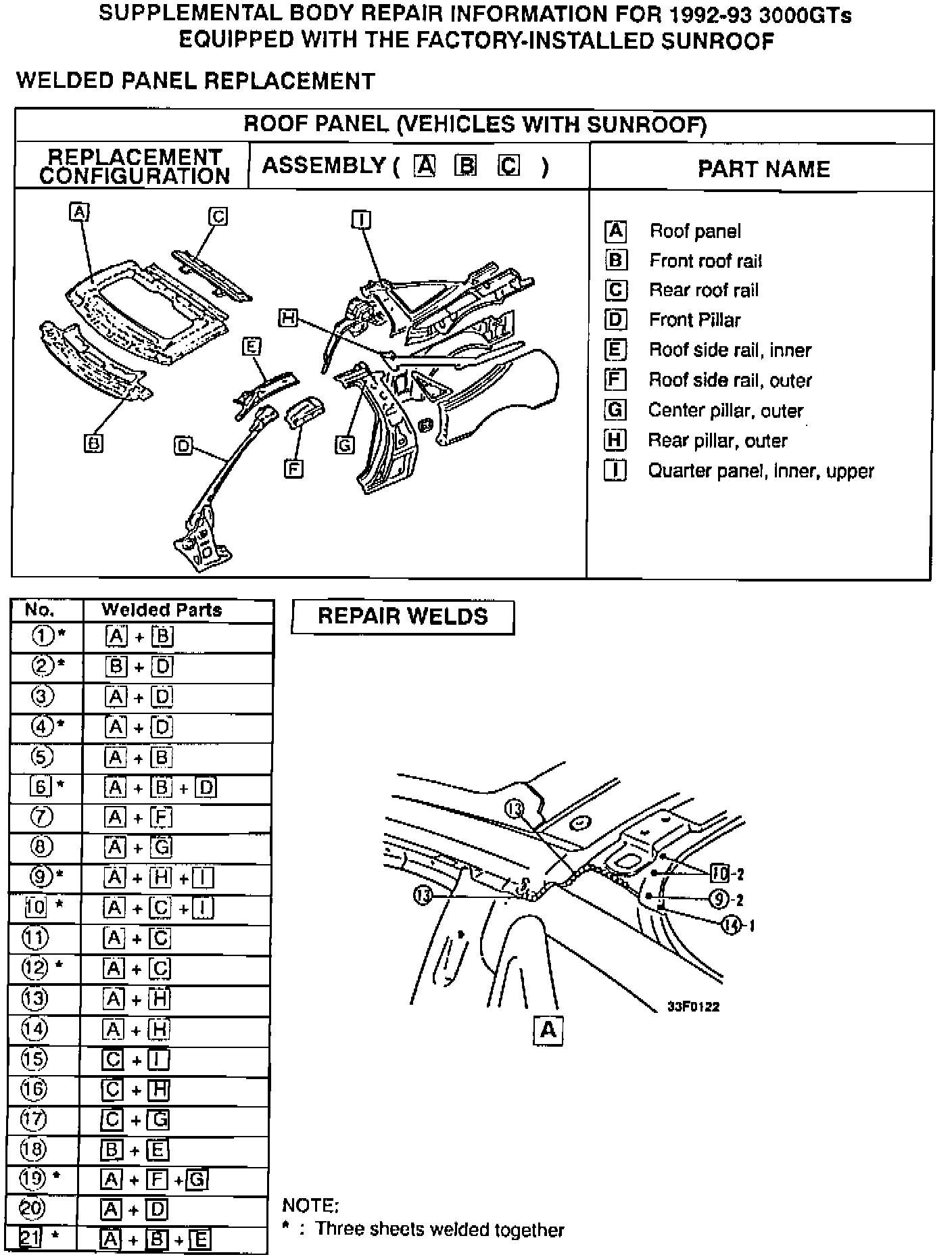

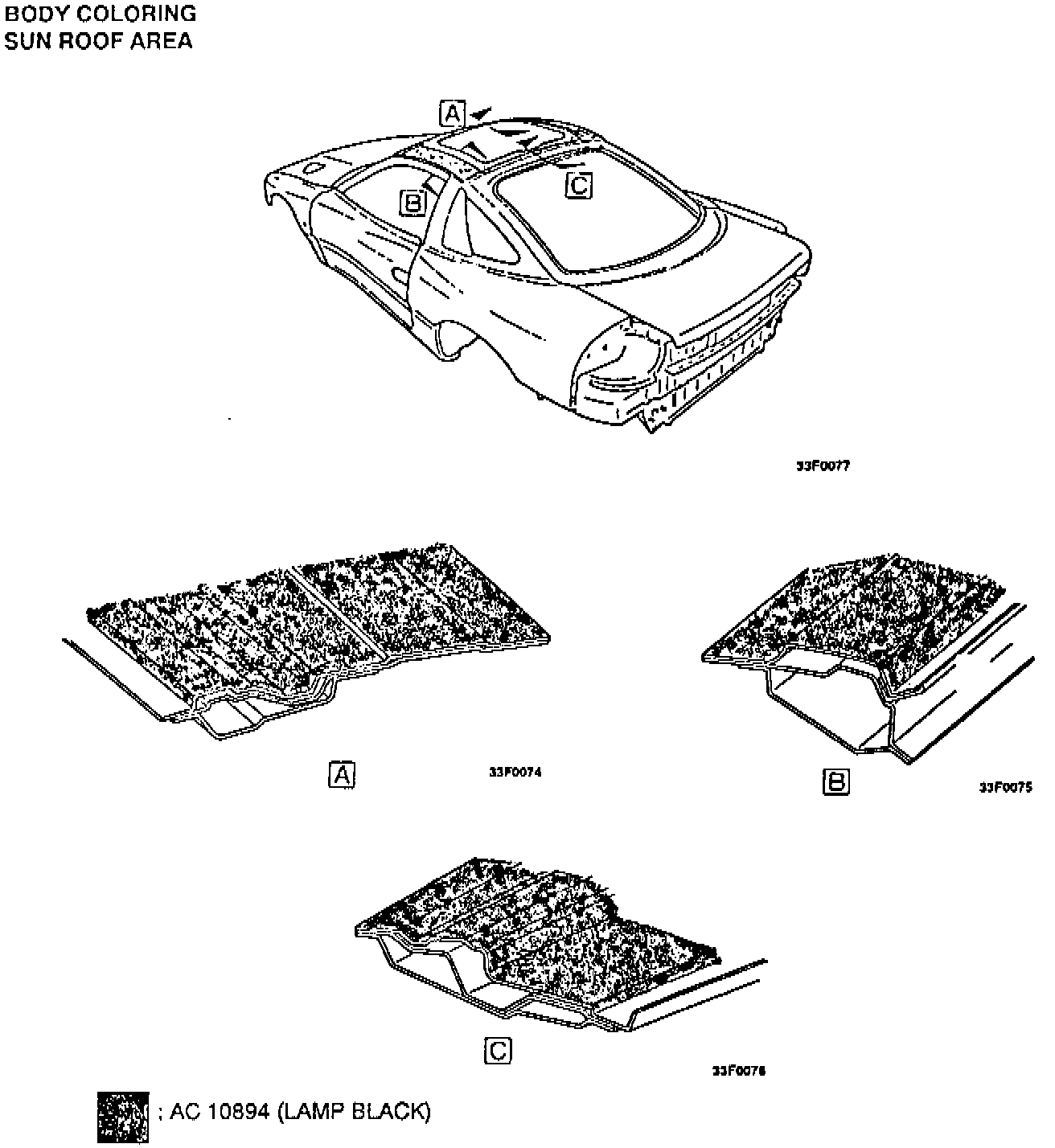

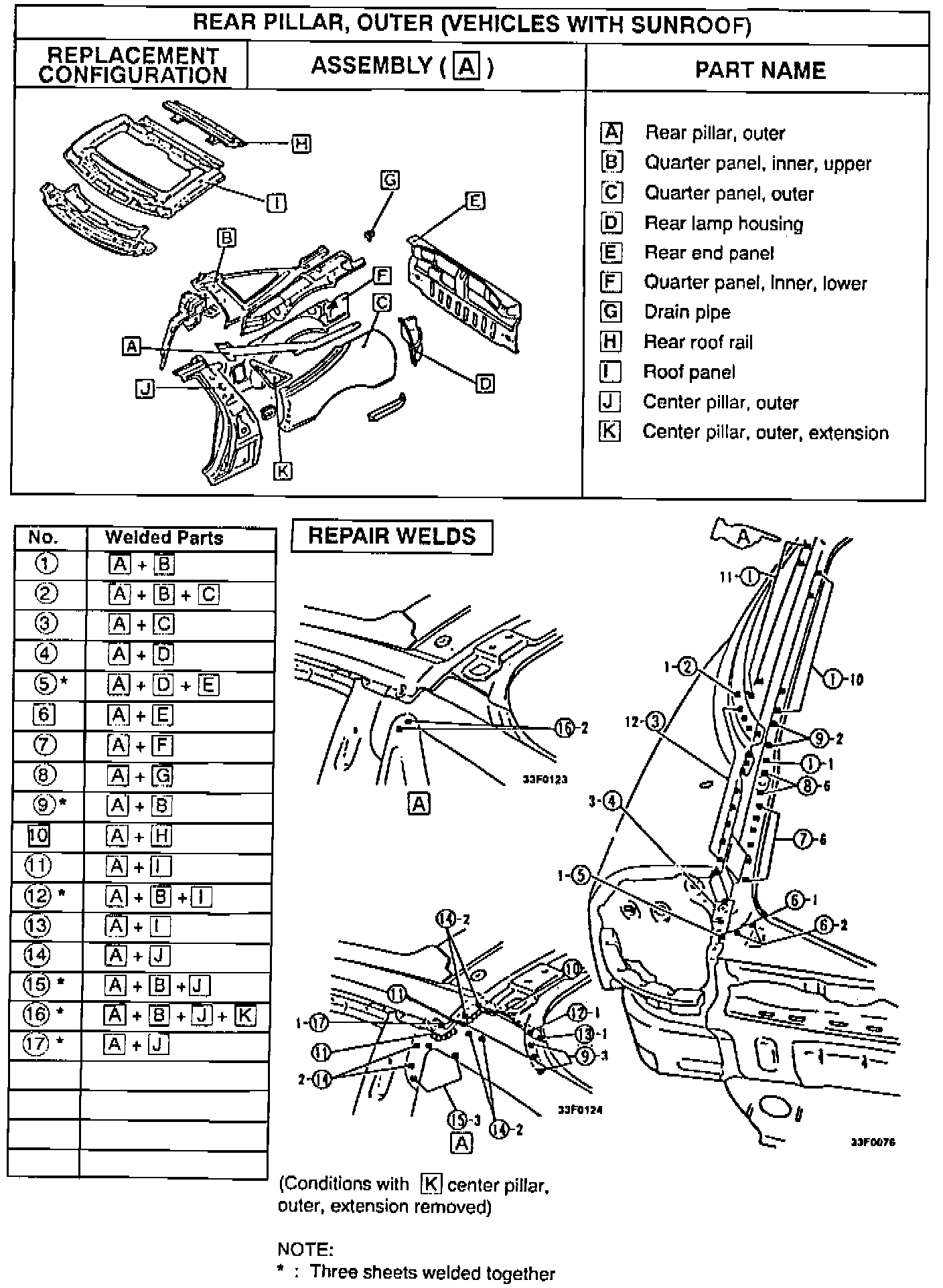

The most recent Body Repair Manual for the 300OGT was issued in 1991. Beginning with 1992 300OGTs, the factory-installed sunroof was made available. To perform sunroof area body repairs on 1992-93 300OGTs, use the supplemental body repair information in this bulletin. The symbols and numbers used on these supplemental pages closely resemble actual pages in the Body Repair Manual. Refer to pages 3-42 and 3-43 of the Body Repair Manual for an explanation of the symbols and numbers.
On affected body repair manual pages, refer the reader to this bulletin for sunroof area body repair information. Refer to the following example.
1991 300OGT Body Repair Manual, Pages 3-61, 3-78, and 6-109:
Add a note to each affected body repair manual page:
"REFER TO TSB-93-42B-002 FOR SUPPLEMENTAL INFORMATION REGARDING BODY REPAIR TO THE SUNROOF AREA."
