Manual Transaxle

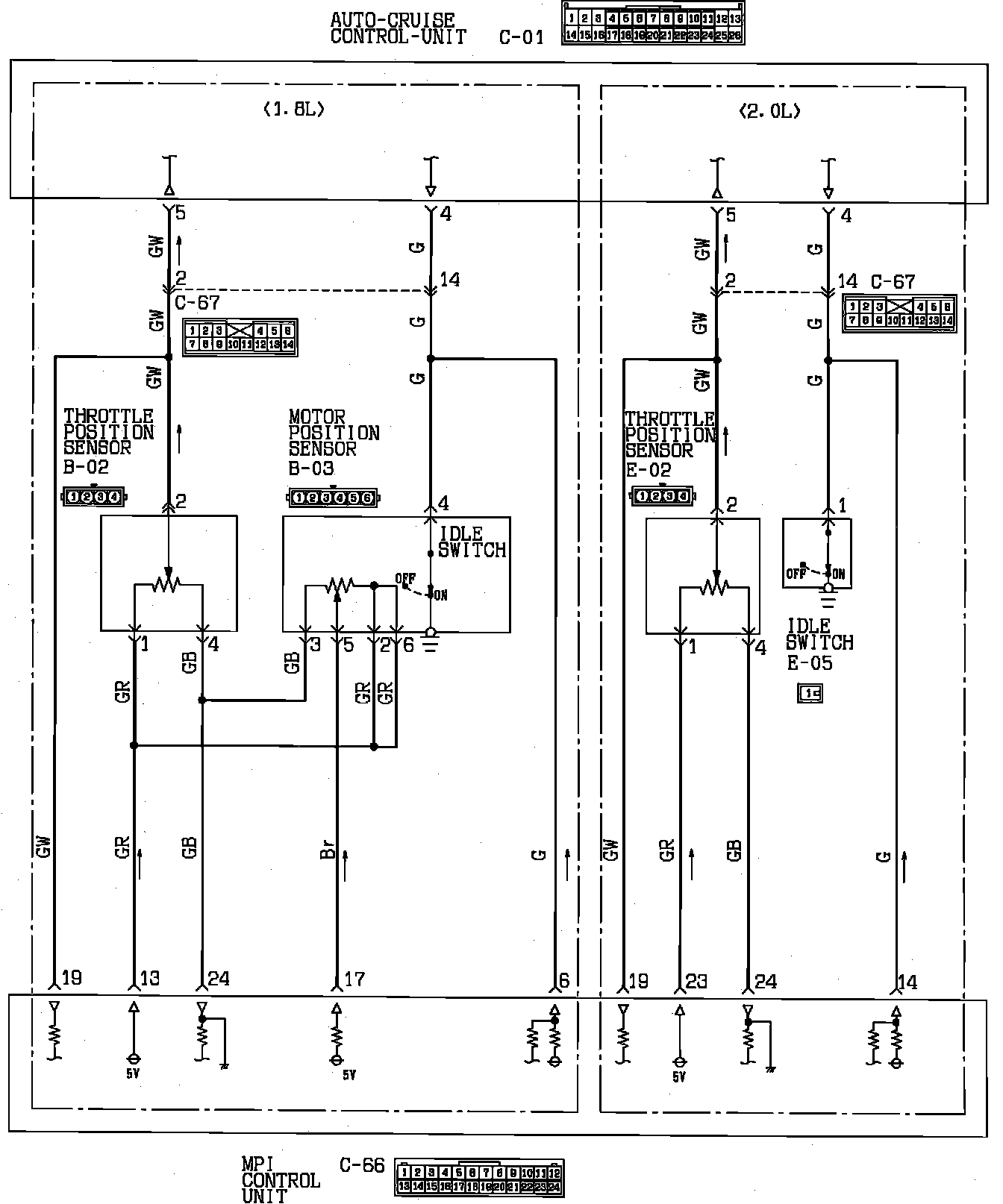

Auto-Cruise Control (M/T):



Auto-Cruise Control (M/T):



Auto-Cruise Control (M/T):
