Home >> Mitsubishi >> 1991 >> Eclipse L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Headlight Pop-Up Controls

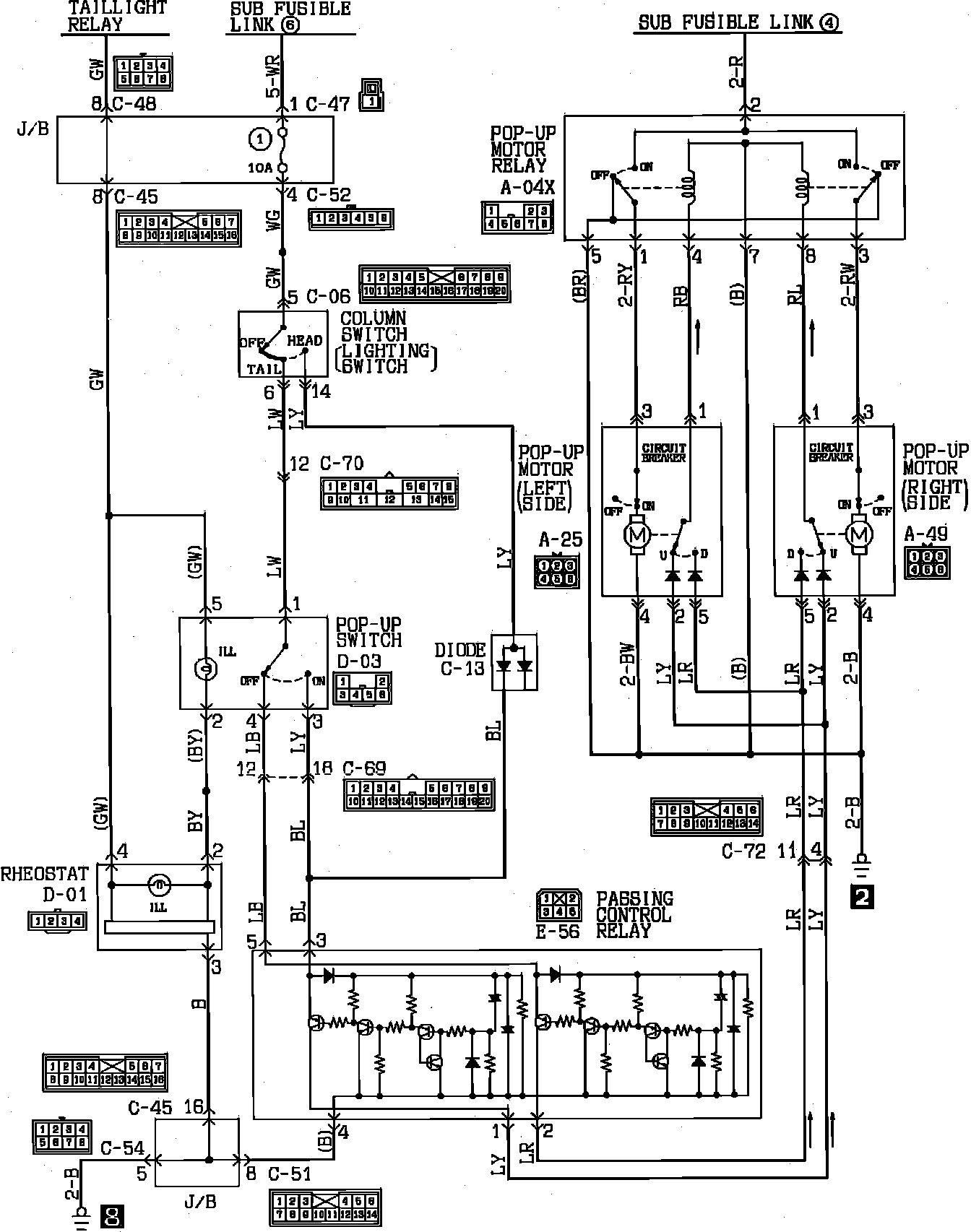

Headlight Pop-Up Controls

Pop-Up Headlamps:
