Home >> Mitsubishi >> 1991 >> Eclipse L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram

System Diagram

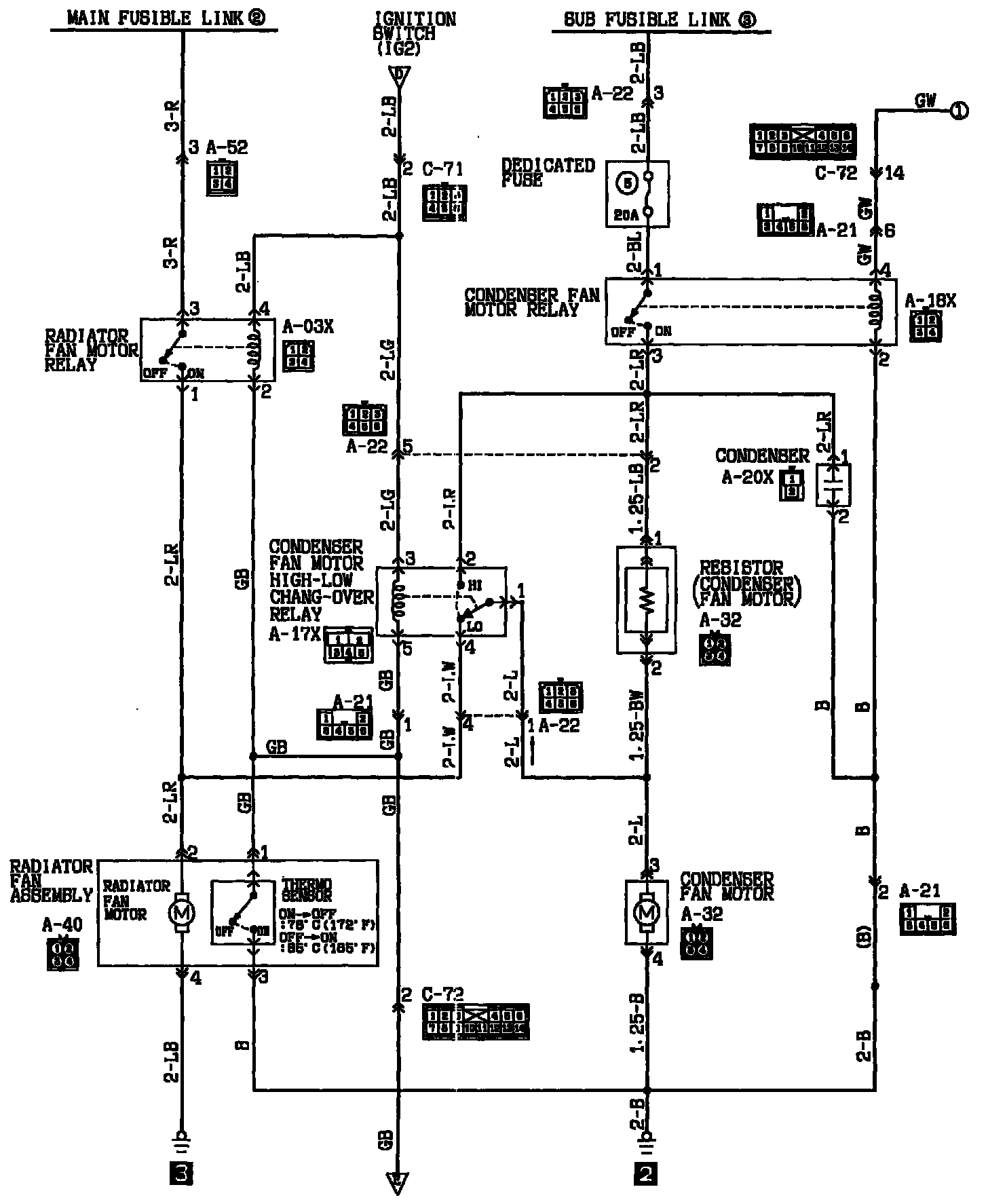

Air Conditioner Circuit:

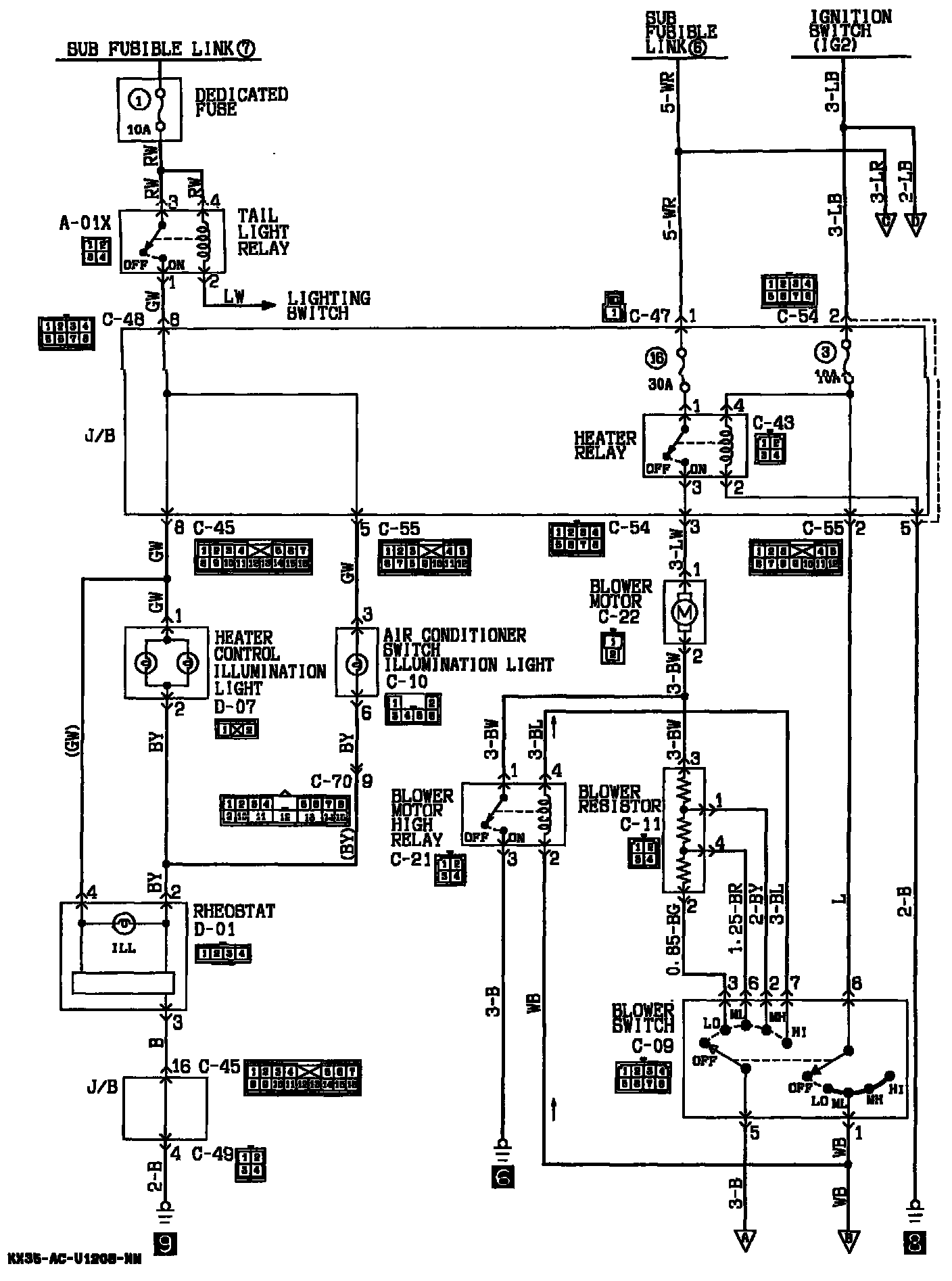

Air Conditioner Circuit:



Air Conditioner Circuit:
