Recall - Oxygen Sensor Replacement: Overview

9217mitsubishi01

NO.: EMR-92-005 Revision

DATE: January, 1992

MODEL: 1991-1992 Galant VR-4


SUBJECT:

1991 - 1992 FEDERAL GALANT VR4

EMISSION RECALL


This bulletin supercedes EMR-92-005, which should be discarded.

PURPOSE

This bulletin provides a detailed procedure for inspection and repair of the emission control system on certain turbocharged 1991 and 1992 2.0L Federal Emission Certified Galant VR-4 models. A letter has been sent to all owners of the affected vehicles informing them to return their vehicles to their Mitsubishi Motors dealer to have the engine serviced. A copy of this letter is shown on Page 6 of this bulletin.

Please note that the customer is not to be charged for the repairs covered by this bulletin. To achieve the desired results, the procedure MUST be followed EXACTLY as described in this bulletin.


IMPORTANT NOTICE

All dealerships MUST perform all steps described in this bulletin. Incomplete repairs will lead to emissions non-compliance and obvious customer dissatisfaction. The Environmental Protection Agency (EPA) will survey the results of this campaign several months after starting. If incomplete repairs or non-compliance is found, another recall could be ordered or other action undertaken by EPA.

Furthermore, the EPA may consider failure to properly perform emission recall procedures as tampering, which may subject the servicing dealer to a fine of up to $25,000 per vehicle. Confirm that you are using the proper Technical Service Bulletin repair procedures and service kits for the vehicle model year and engine size that you are working on. Service procedures are different even though some vehicles may look alike.


AFFECTED VEHICLES

This procedure applies to 1991 and 1992 2.0L Federal Emission Certified Galant VR-4 models equipped with manual transmissions without limitation as to mileage. It does not apply to any other models.


REQUIRED OPERATIONS

1. Replace the Oxygen Sensor.

2. Clear any diagnostic codes stored in the MPI system's ECU using the Multi-Use Tester.


PARTS INFORMATION

Oxygen sensor: MD188208

Required on each claim. No other parts are allowed to be claimed.


WARRANTY INFORMATION

Submit as Recall Claim type "C", Menu option "E-5" on your Diamond Network System.
Do NOT submit as "W" claims!
Required Operation
Labor Operation Code: C9206XXX
Time allowance: 0.2 hr.

Note: The "O" in the above labor code is the number ZERO.





MATERIALS AND SPECIAL TOOLS REQUIRED

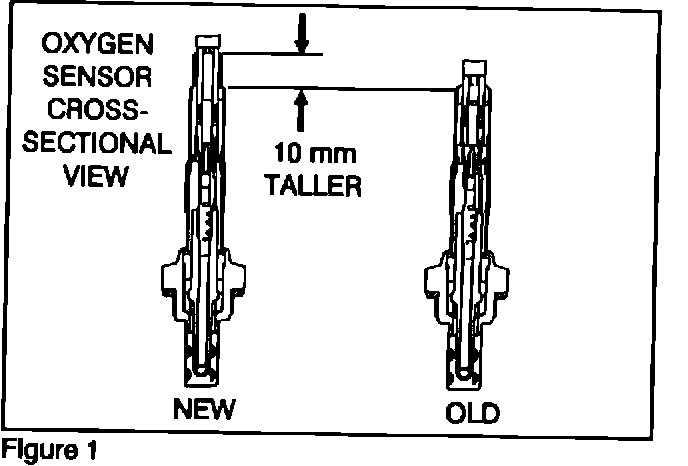

This new oxygen sensor uses a ceramic type insulating material which withstands a higher temperature. This makes the new sensor 10 mm longer than the one being removed (Figure 1).

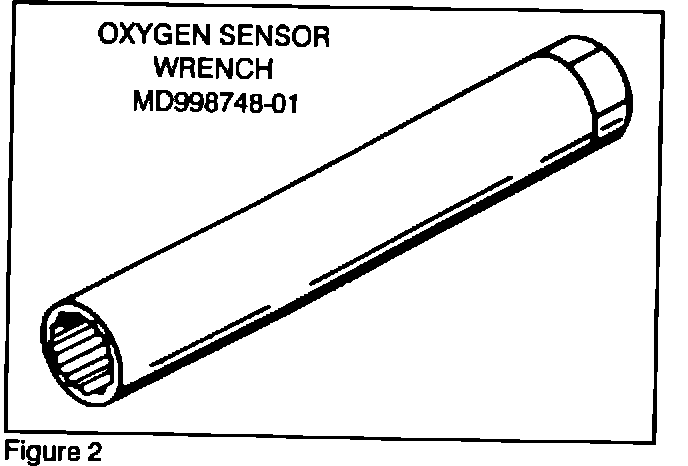

* You MUST use Oxygen Sensor wrench number MD998748-01 (Figure 2).

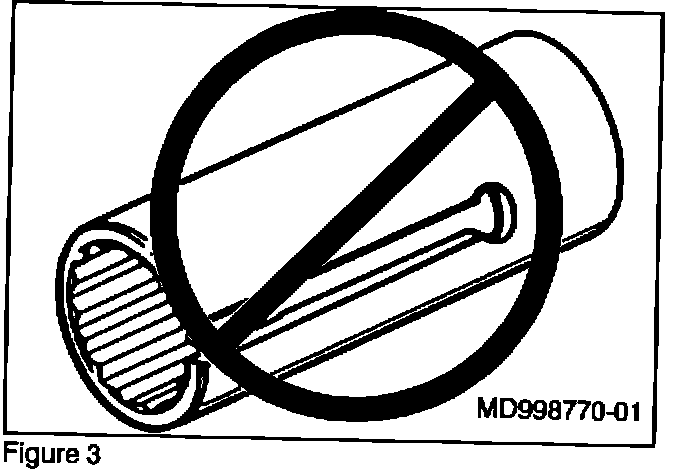

CAUTION: Do not use the oxygen sensor removal wrench MD998770-01 which has a split on the side (Figure 3).

* Multi-Use Tester.

* Penetrating oil.
