Antilock Brakes / Traction Control Systems

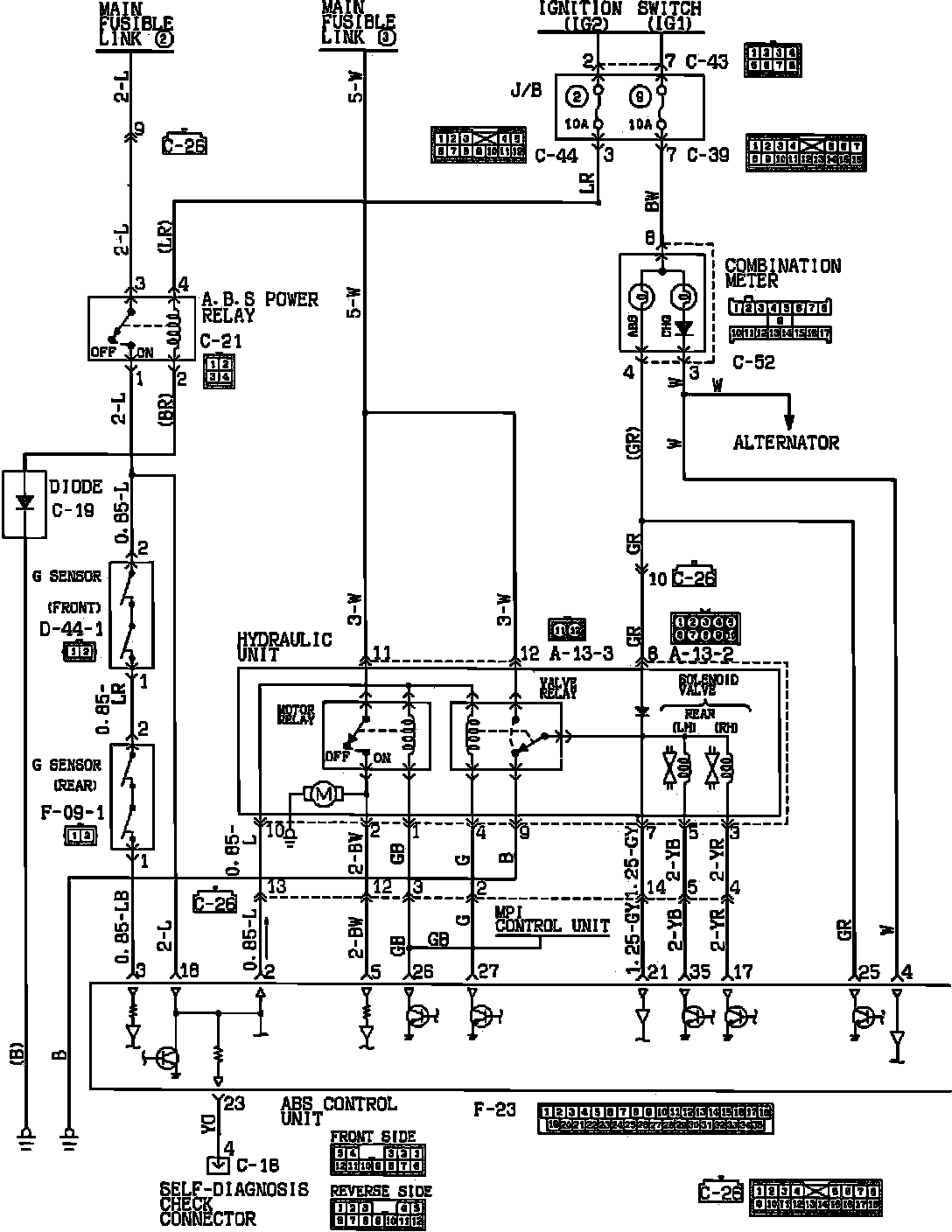

Fig. 16 Anti-lock Brake System Wiring Diagram. (Part 1 Of 2) 1991 Galant AWD:

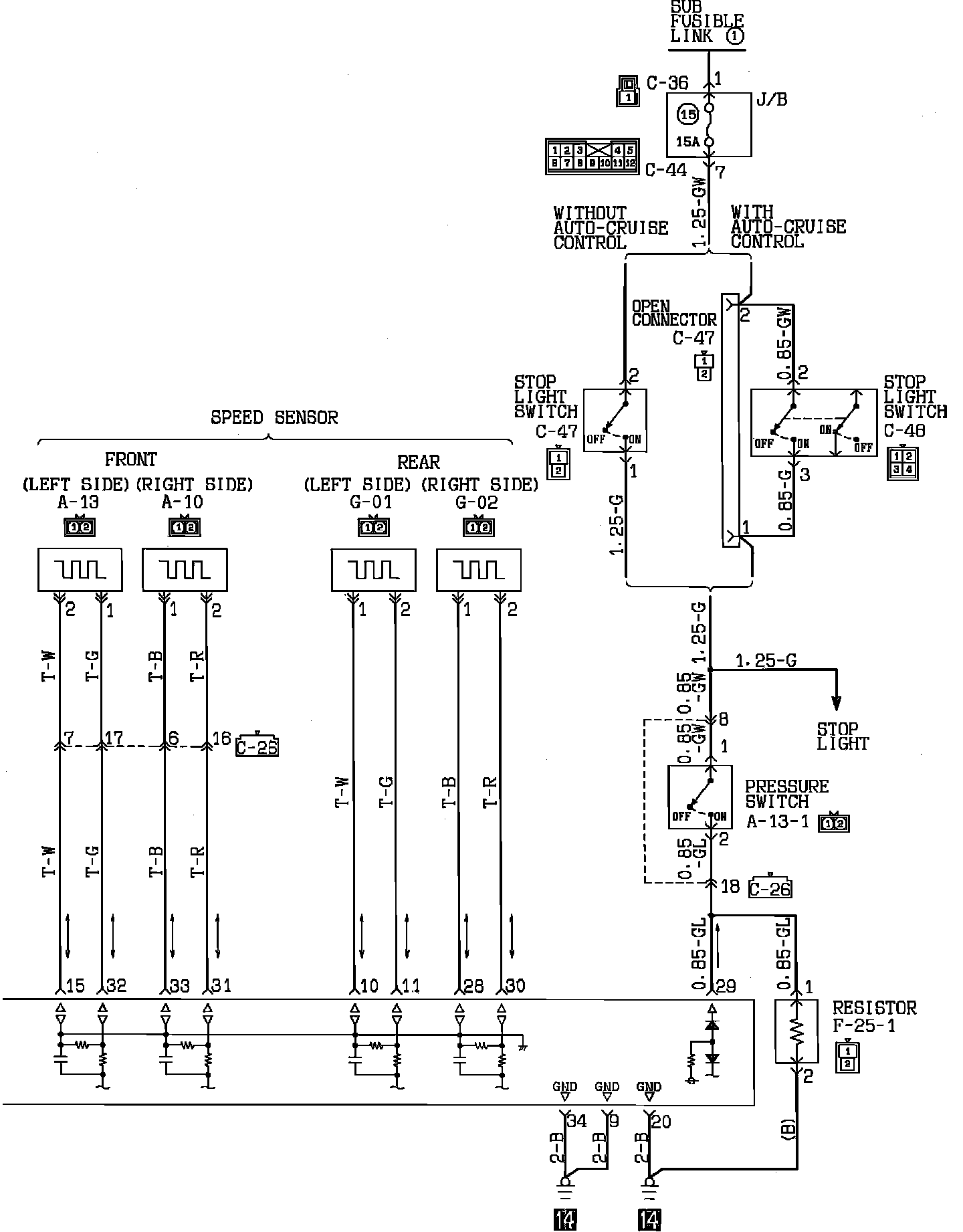

Fig. 16 Anti-lock Brake System Wiring Diagram. (Part 2 Of 2) 1991 Galant AWD:

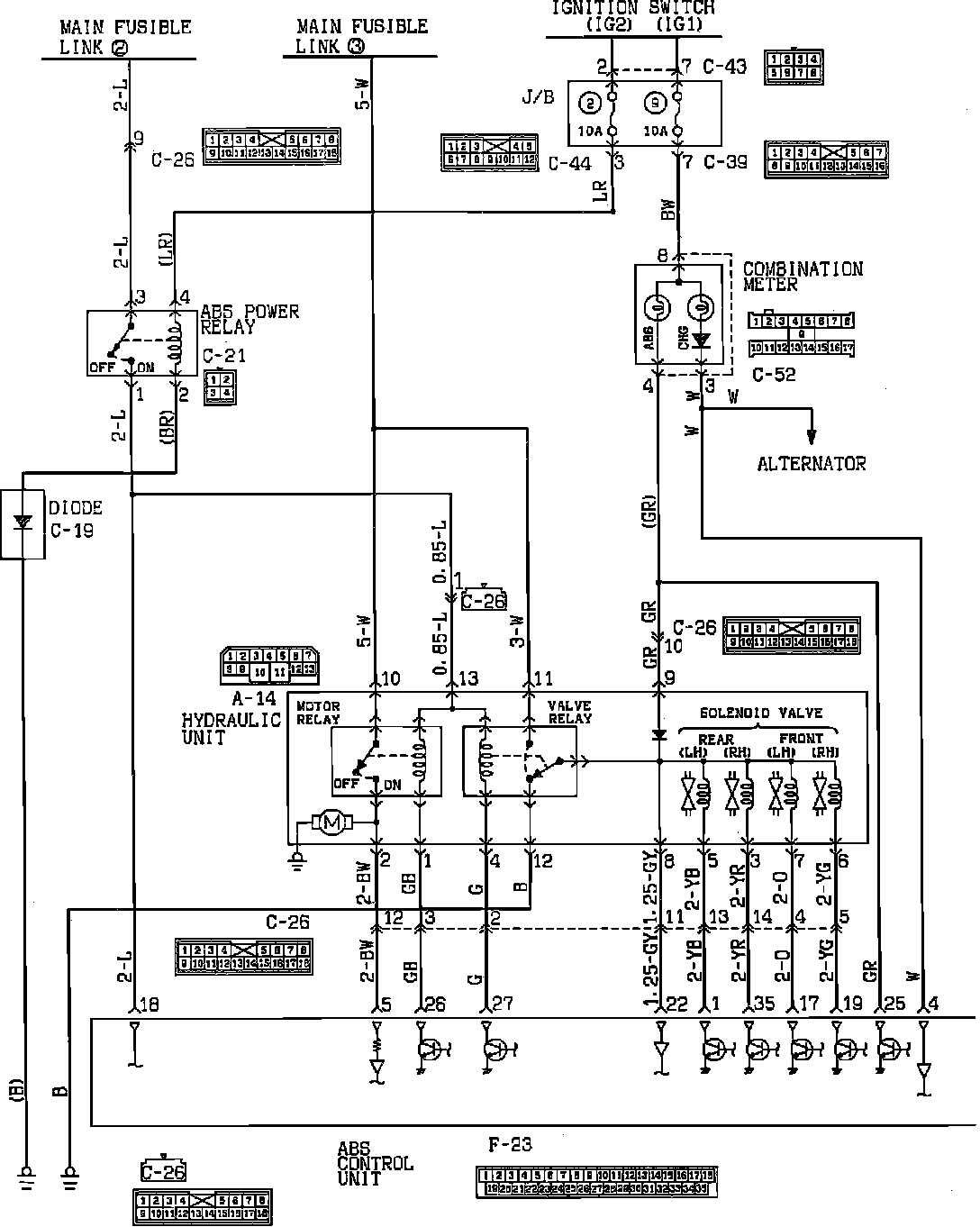

Fig. 20 Anti-lock Brake System Wiring Diagram. (Part 1 Of 2) 1991 Galant FWD:

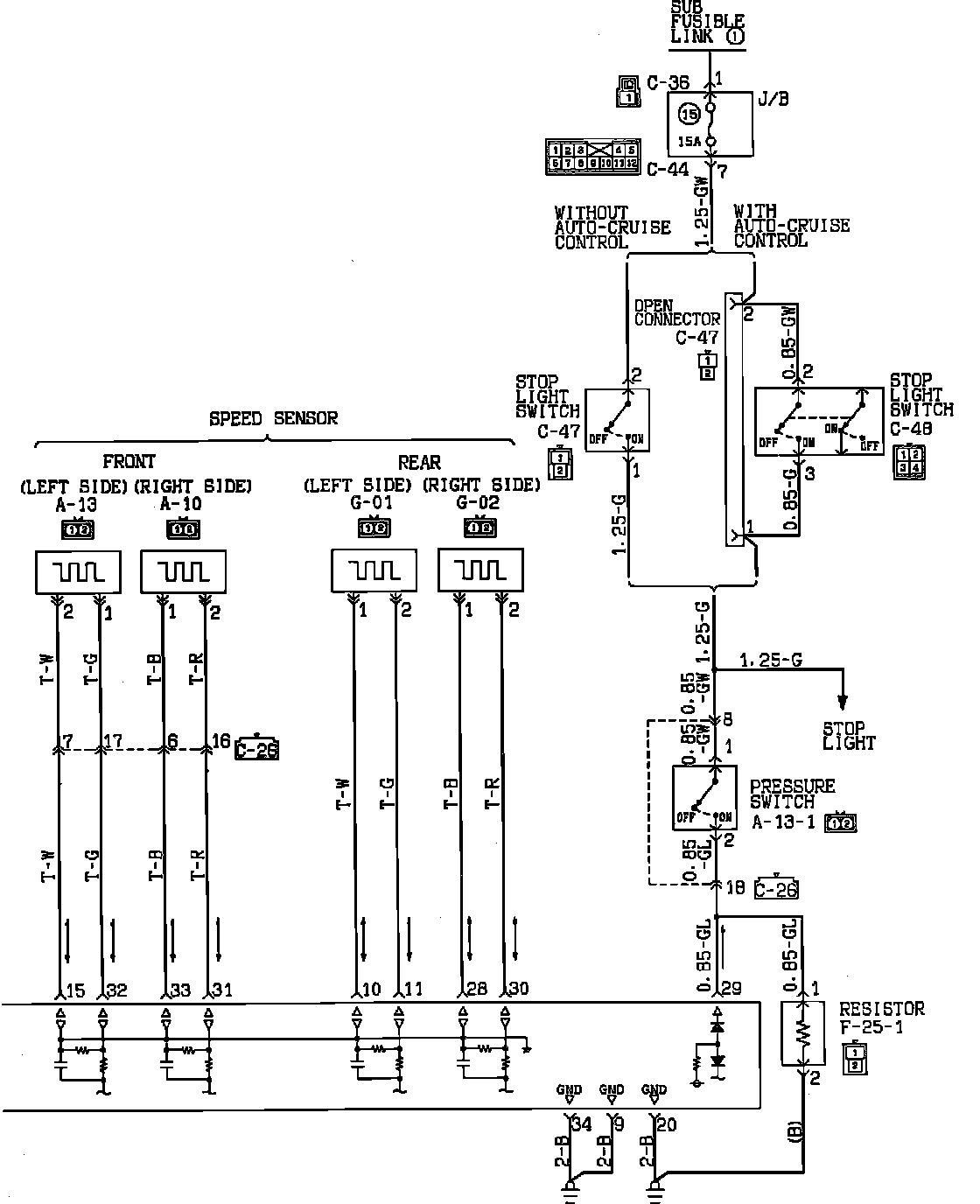

Fig. 20 Anti-lock Brake System Wiring Diagram. (Part 2 Of 2) 1991 Galant FWD:

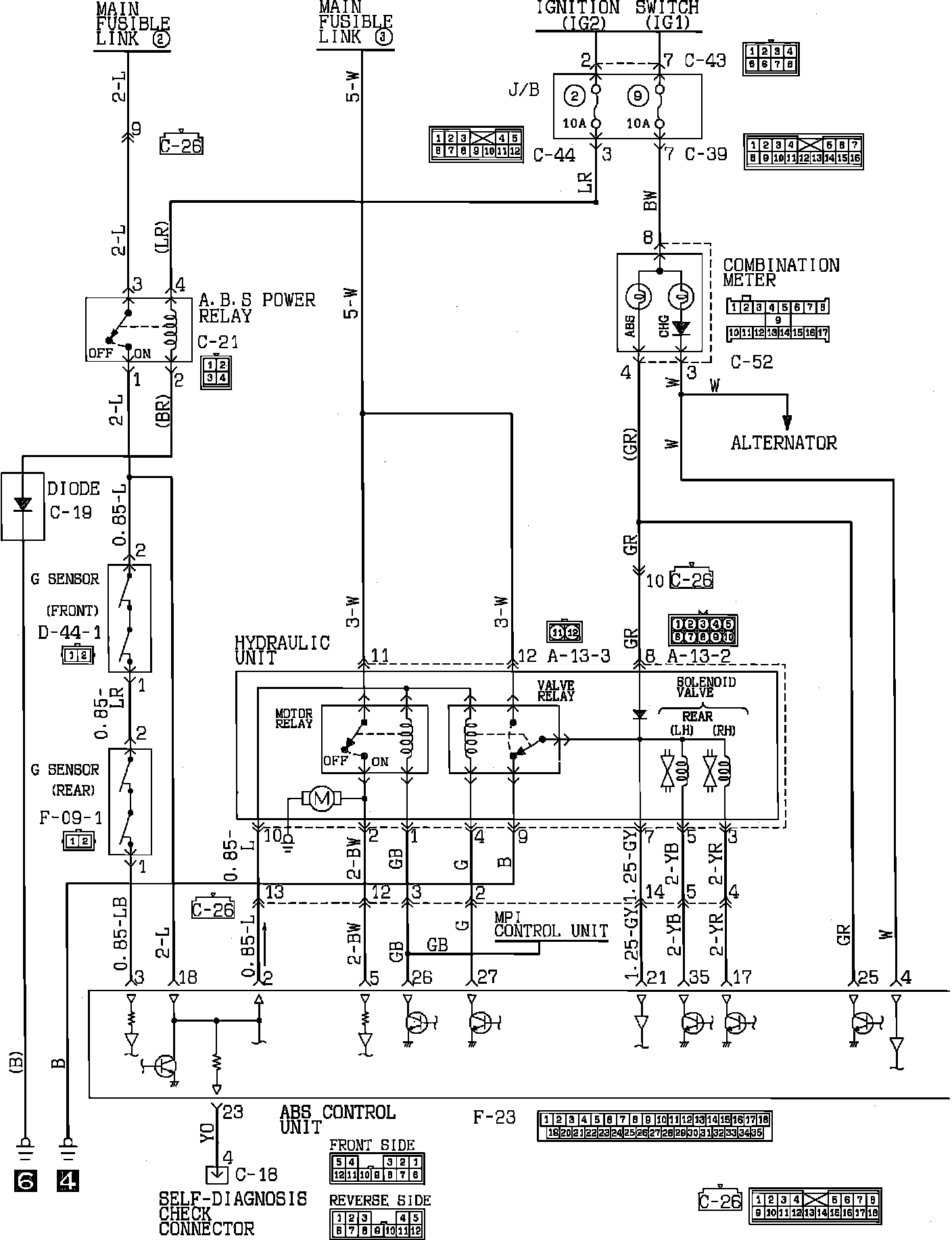

Anti-Lock Brakes (AWD):

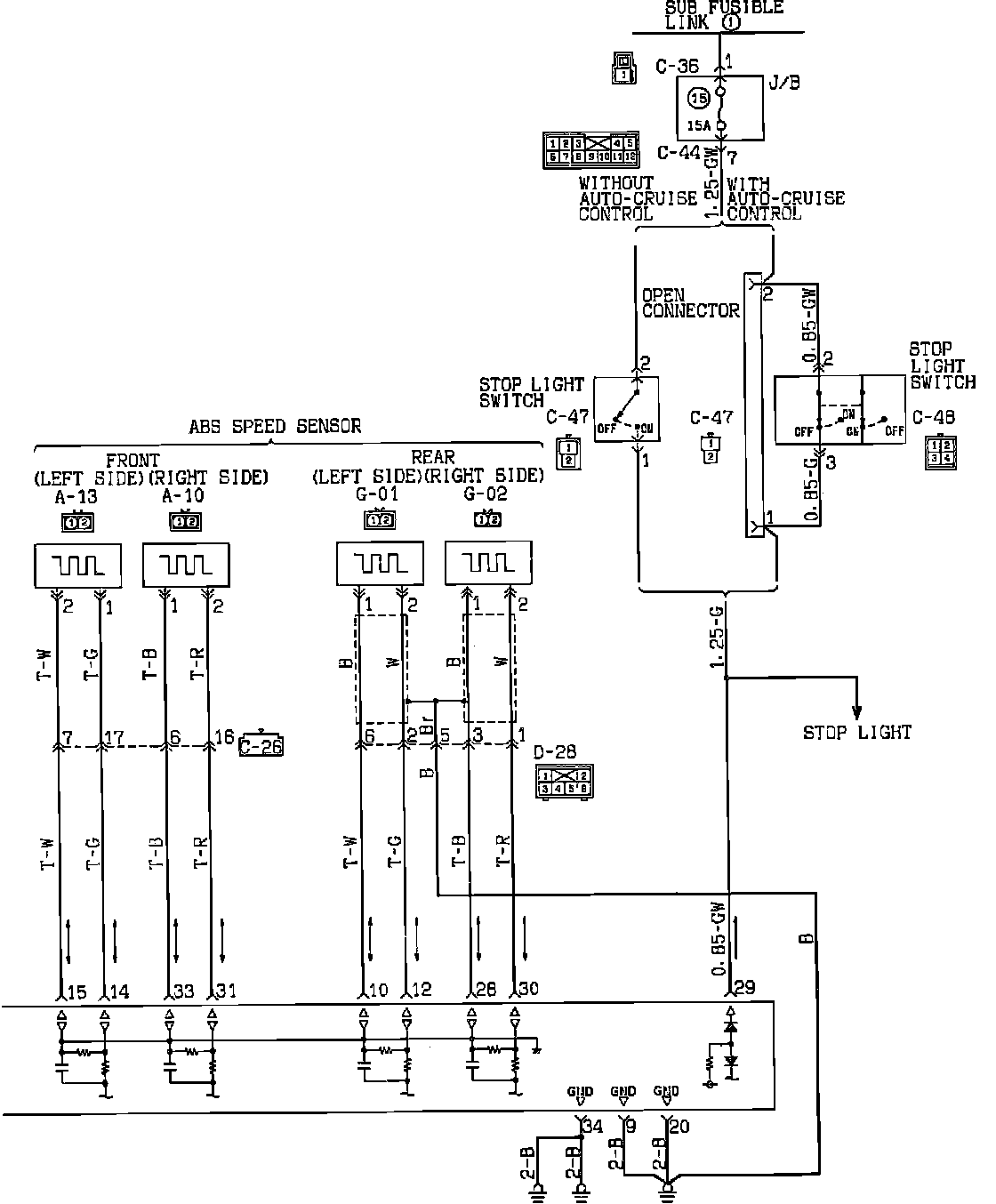

Anti-Lock Brakes (AWD):
