Transmission Control Systems

Engine, Automatic Transaxle:



Automatic Transaxle:

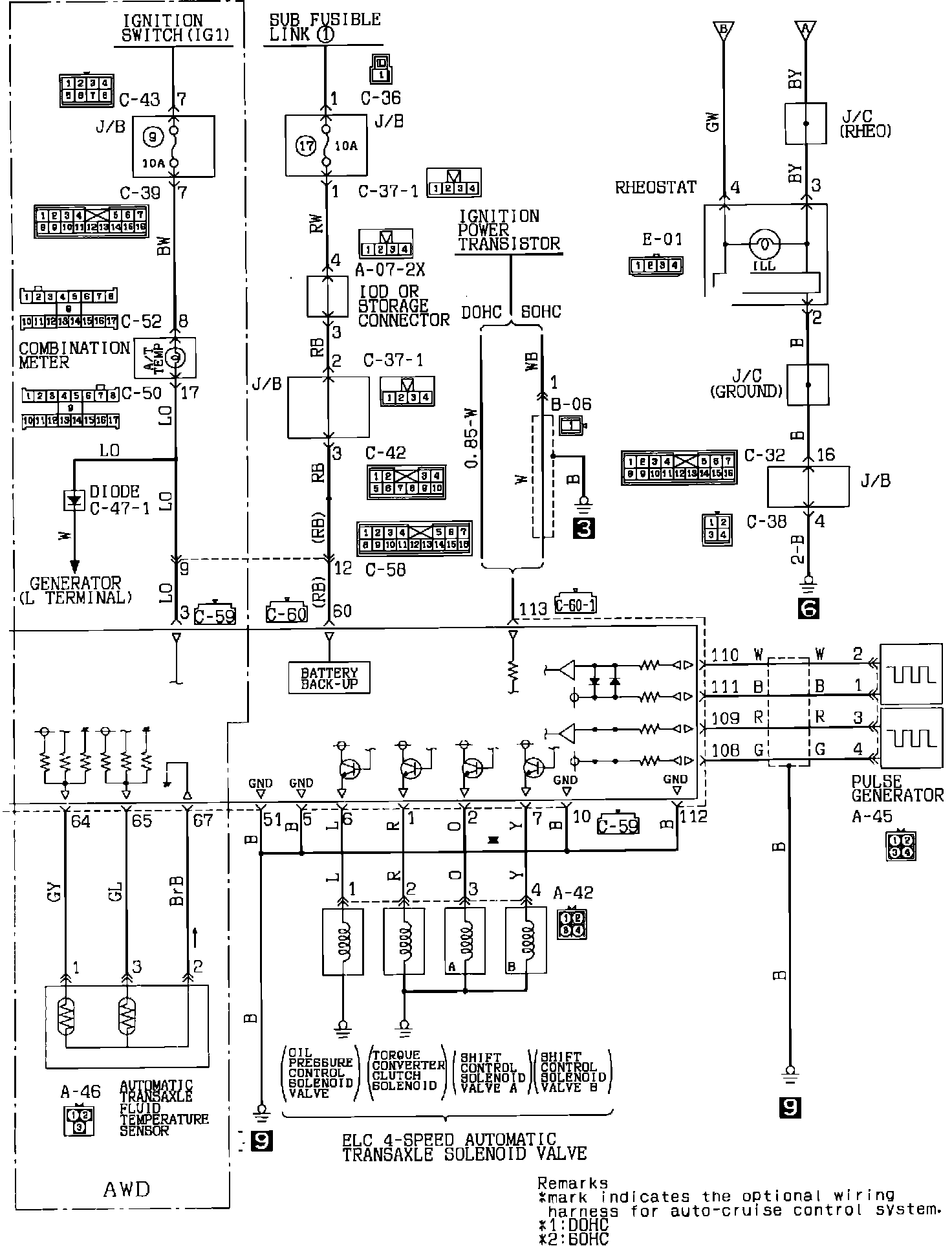

Automatic Transaxle (Electronically Controlled 4-Speed):



Automatic Transaxle (Electronically Controlled 4-Speed):
