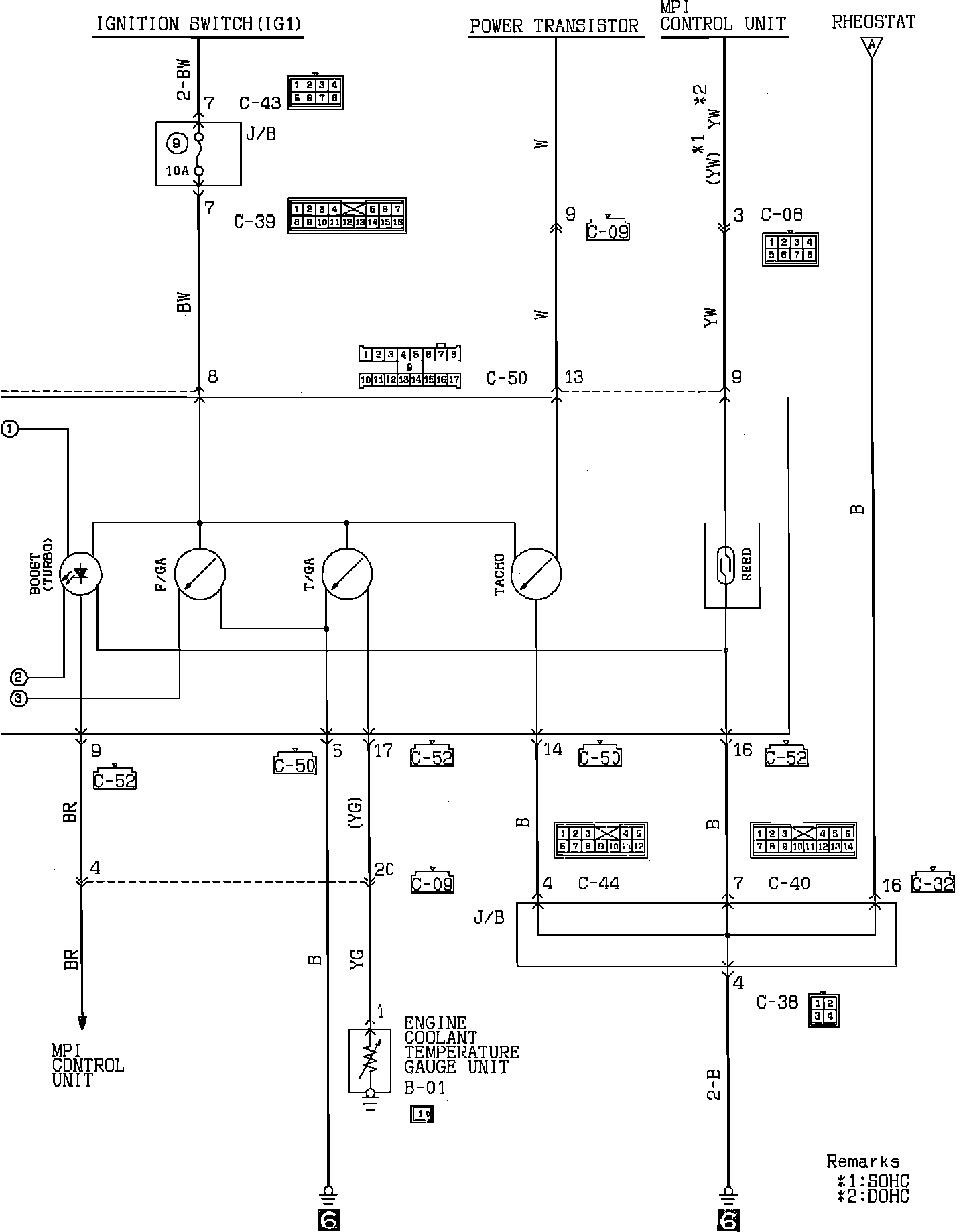

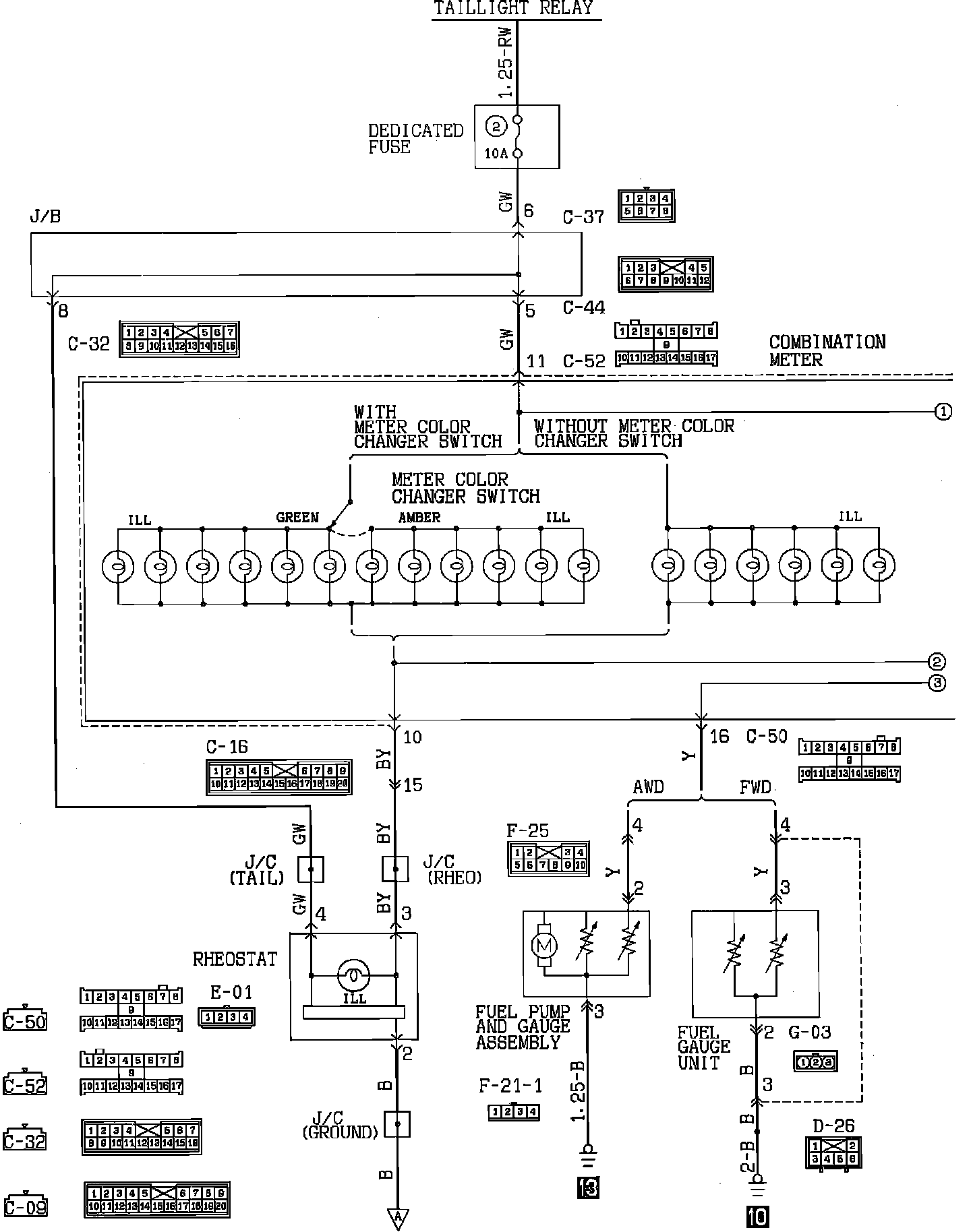

Instrument Panel (Gauges):
Instrument Panel (Gauges):

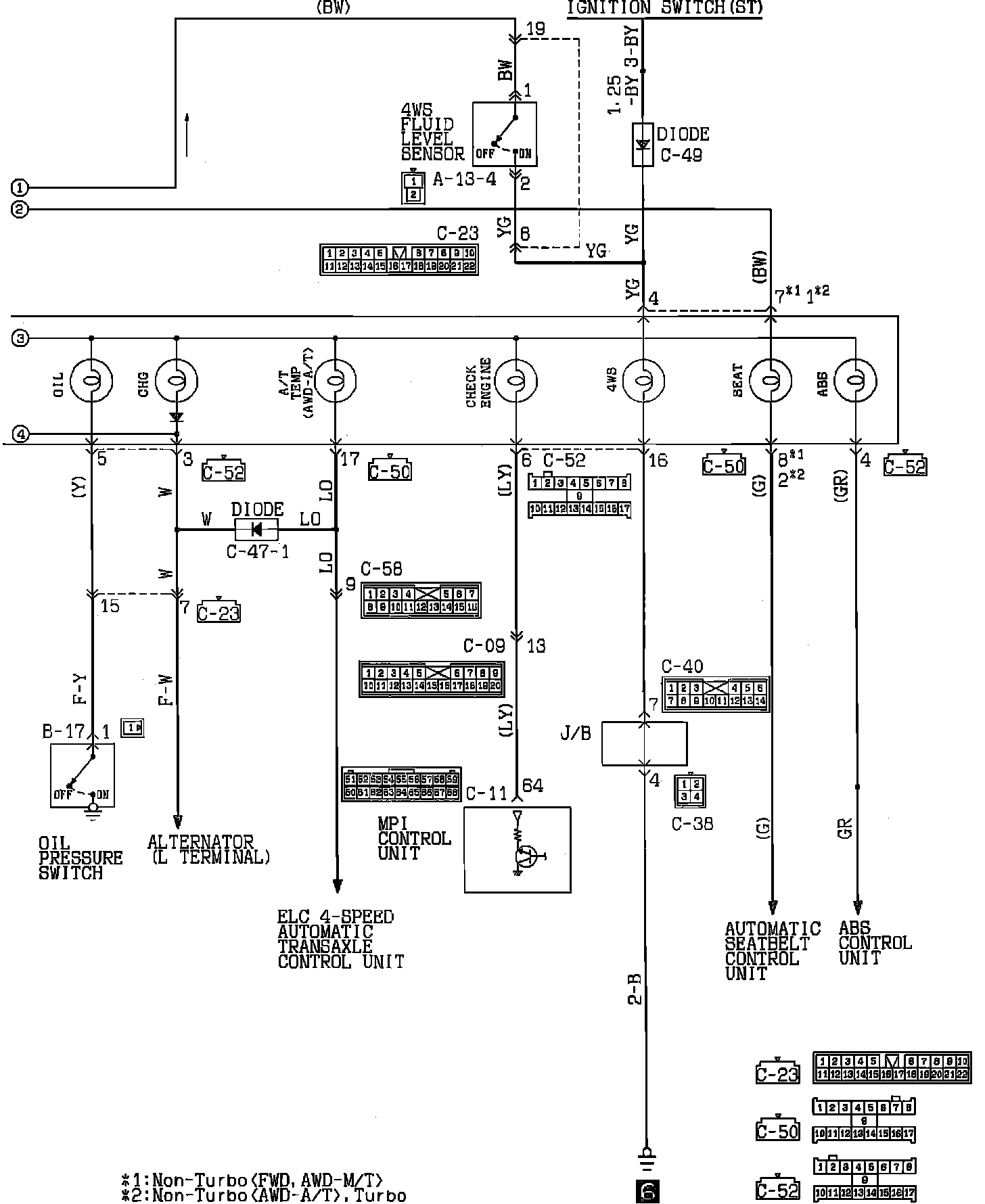

Instrument Panel Warning Indicators:
Instrument Panel Warning Indicators:
Instrument Panel Warning Indicators:
Instrument Panel Warning Indicators:
