Electrical Diagrams
Front Wiper/Washer (Wiring Diagram):
Front Wiper/Washer (Connector Identification):

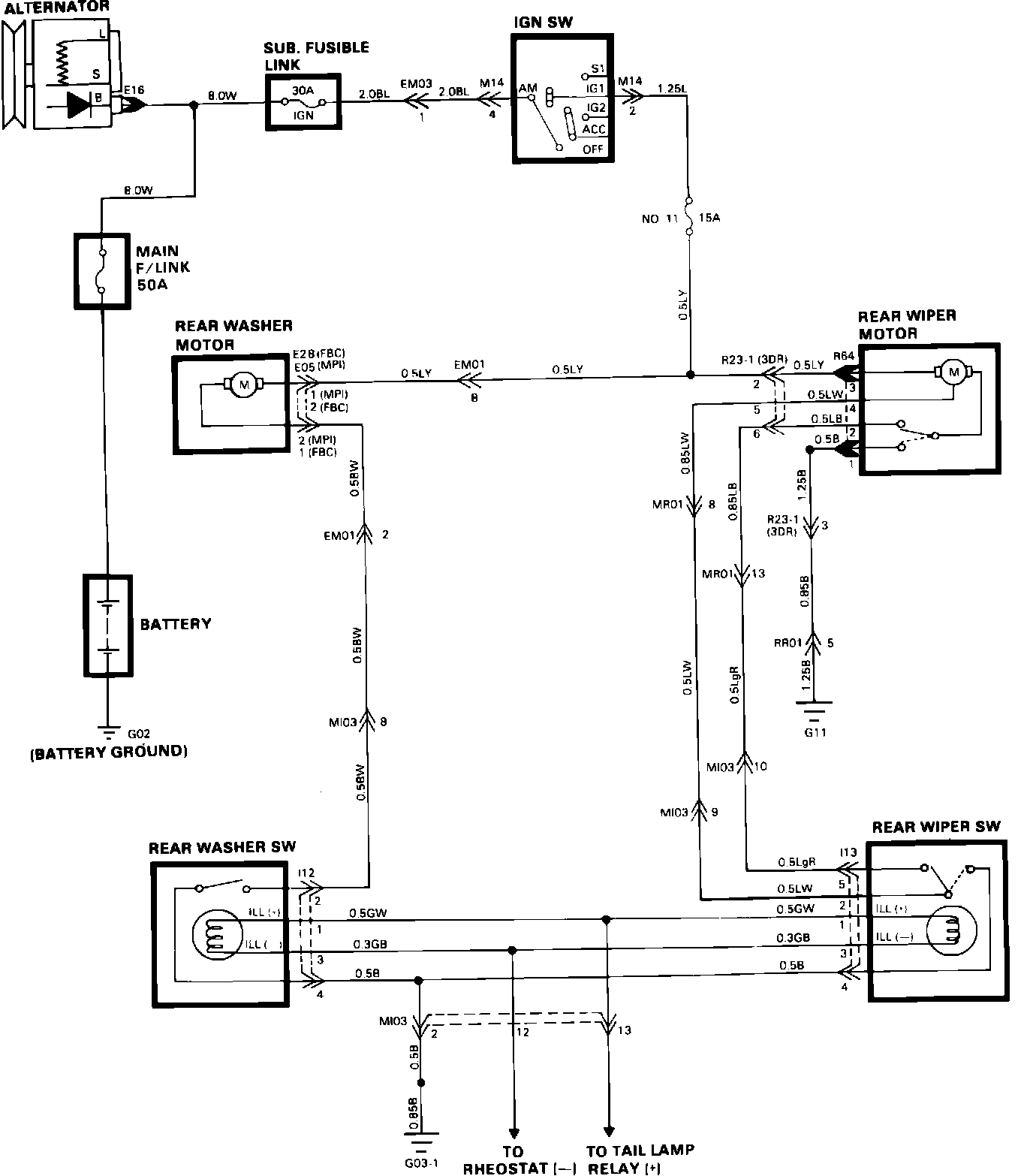

Rear Wiper/Washer (Wiring Diagram):

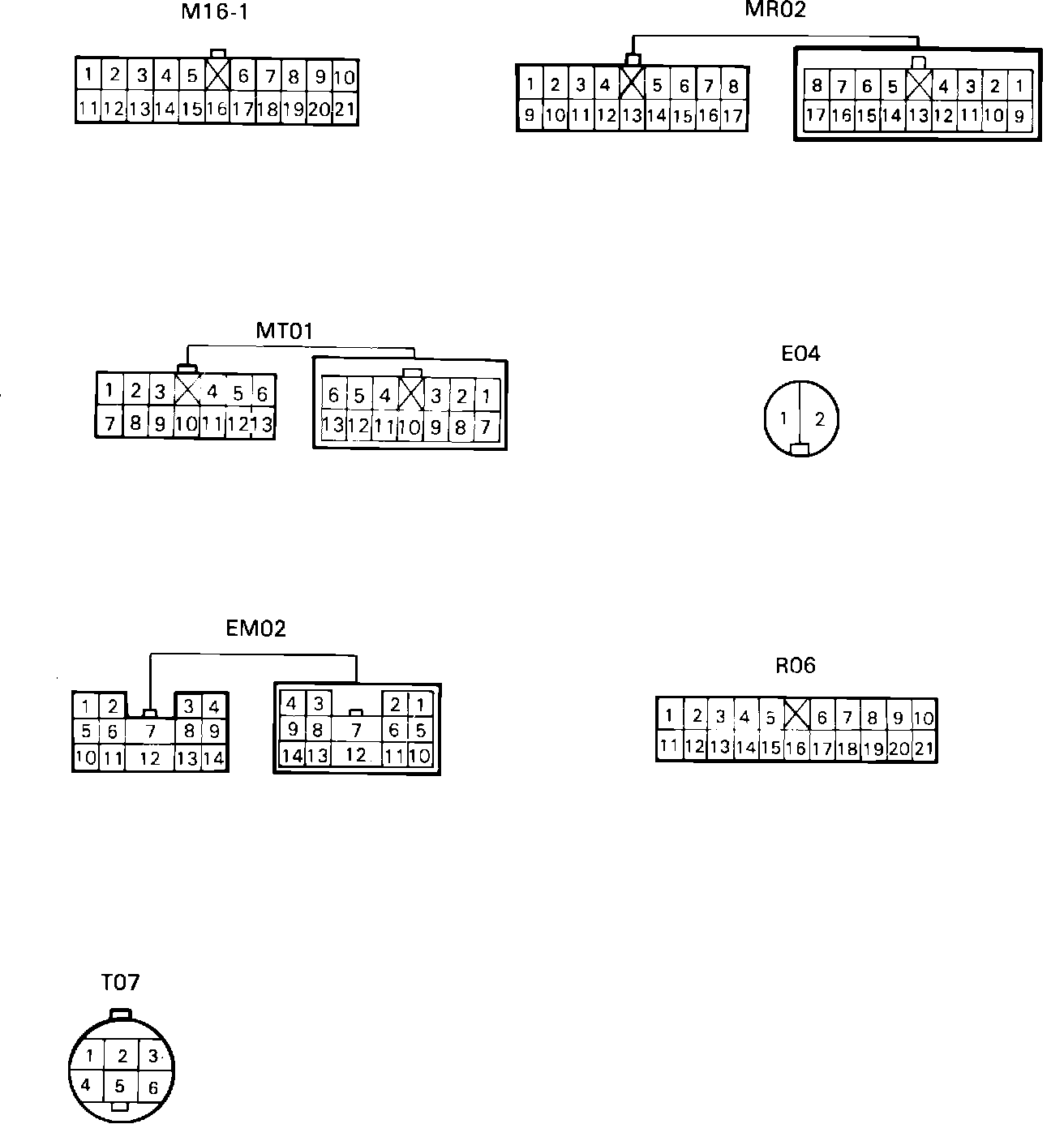

Rear Wiper/Washer (Connector Identification):
